High-Performance 3-Row Aluminum Radiator for 1988-1999 Chevy GMC C/K/R/V/P 1500 2500 3500 Trucks - Fits Suburban, Blazer, Silverado, Cheyenne, Sierra WT with 5.0L & 5.7L V8 Engines - Includes Crossflow Design, Shroud, Fan & Thermostat Relay - Perfect for Off-Roading, Towing & Heavy-Duty Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:77460424
Product Description

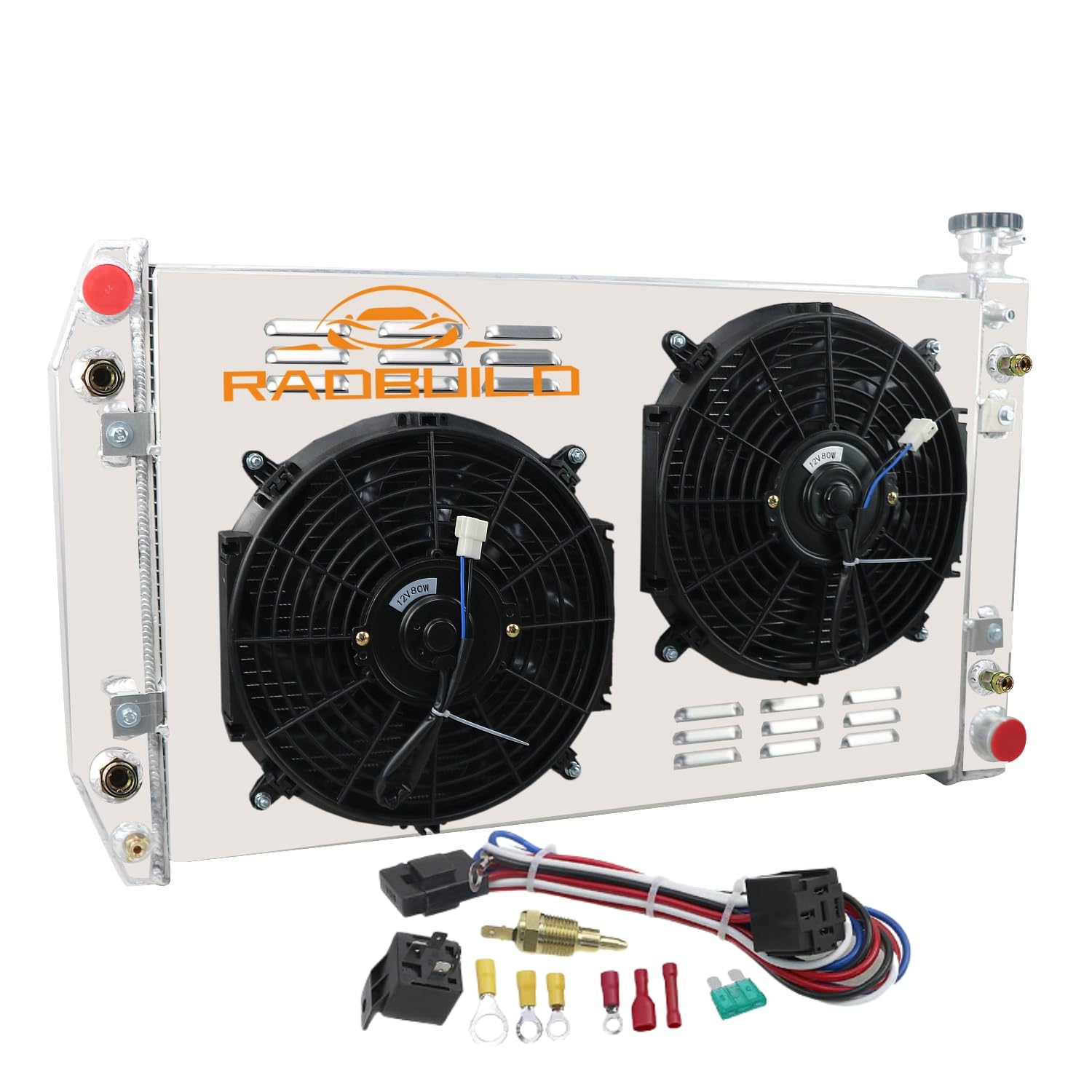

Fitment:For 1988-1999 Chevy C1500/C2500/K1500/K2500 5.0L/5.7LFor 1988-1994 Chevy C3500/K3500 5.7LFor 1988-1999 GMC C1500/C2500/K1500/K2500 5.0L/5.7LFor 1988-1994 GMC C3500/K3500 5.7LFor 1992-1993 Chevy C1500/C2500/K1500/K2500 Suburban 5.7LFor 1992-1993 GMC C1500/C2500/K1500/K2500 Suburban 5.7LPackage Include:1 x 3-Row AA5052 Aluminum Radiator1 x CNC Machined Radiator Cap1 x AA5052 Aluminum Shroud2 x 12" Fans (Includes mounting kits)1 x Thermostat Relay KitRadiator DetailsRow Count: 3 RowCore Size: 28.27"H x 17.24"W x 1.73"T; Overall Size: 33.86"L x20.47"W x5.51"HInlet/Outlet: 1.26"/1.57"Transmission oilcooler: φ26*292*1/2-20UNF(Z)Engine Oil Cooler: φ32*292*M20*1.5(P)Placement on Vehicle: Engine CompartmentFitment Type: Direct ReplacementPetcoke Drain: OEM Style Brass Petcoke DrainRadiator Cap: CNC Machined Filler Neck And CapFan Details:Maximum Fan CFM: 2300±200Fan Diameter x Height x Thickness:12.05" x 12.05" x 2.5"Number of Blades: 10 blades (Plastic)Amp Draw: 12.70 ampsMaximum Fan RPM: 2,250 rpmRelay Kit Instructions:RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Thermostat Relay Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.Probe typically threads into radiator, water outlet or manifold.Part NumberOE/OEM Part Number: 622, CU622, 8010622, AE622, DPI622, KKS622, SBR622Interchange Part Number: 622, 1605-370188, 1804, 20807, 2383, 43-2057, 432057, 731889, 8010622Other Part Number: CR622, RA1217, RA1217-11B1, REA41622A, SPTCU622
Product Features
►3 Row Core Radiator for 96-97 Chevy P30/GMC P3500 4.3L V6, for 92-95 Chevy/GMC Suburban 5.7L V8, for 88-95 Chevy/GMC C/K Pickup 5.0/5.7L V8, for 94-95 Chevy/GMC C/K Pickup 4.3L V6, for 89-91 Chevy R/V Series 5.7L V8, 90 93 98 99

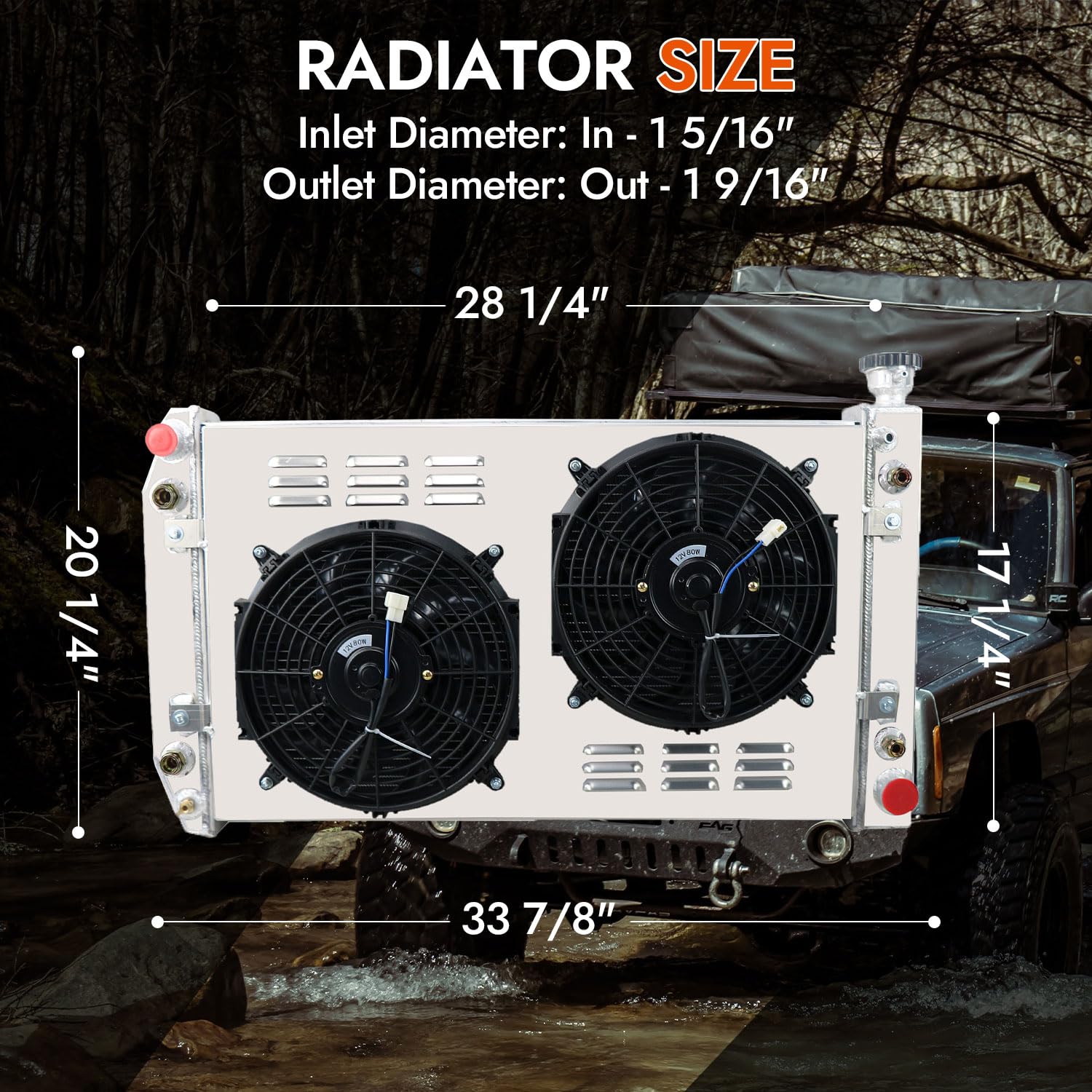

►Core Size 28.27"H x 17.24"W x 1.73"T; Overall Size 33.86"L x20.47"W x5.51"H; Inlet/Outlet 1.26"/1.57"; Transmission oilcooler φ26*292*1/2-20UNF(Z); Engine Oil Cooler φ32*292*M20*1.5(P); Part Number CU622, 8010622, AE622, DPI622, KKS622, SBR622

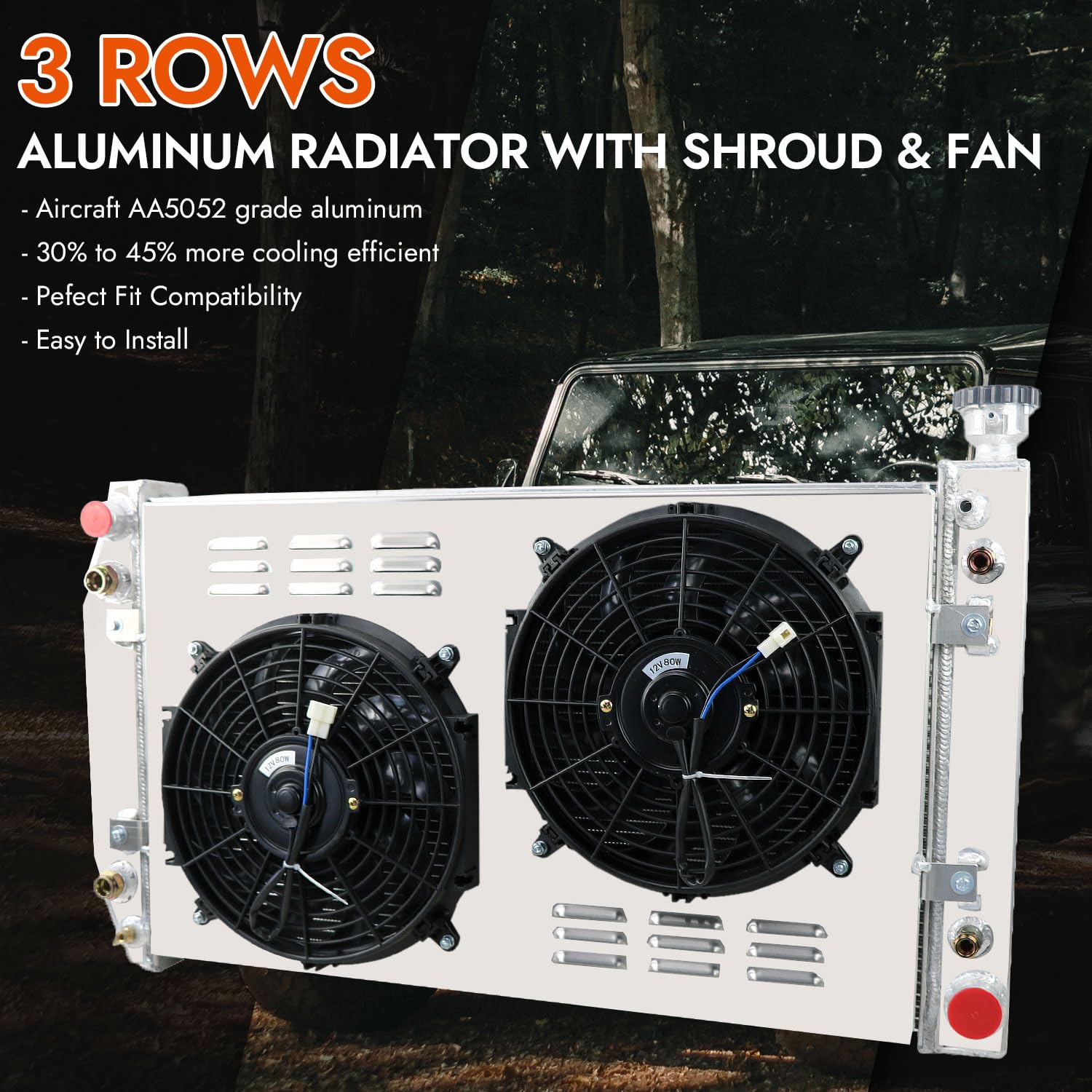

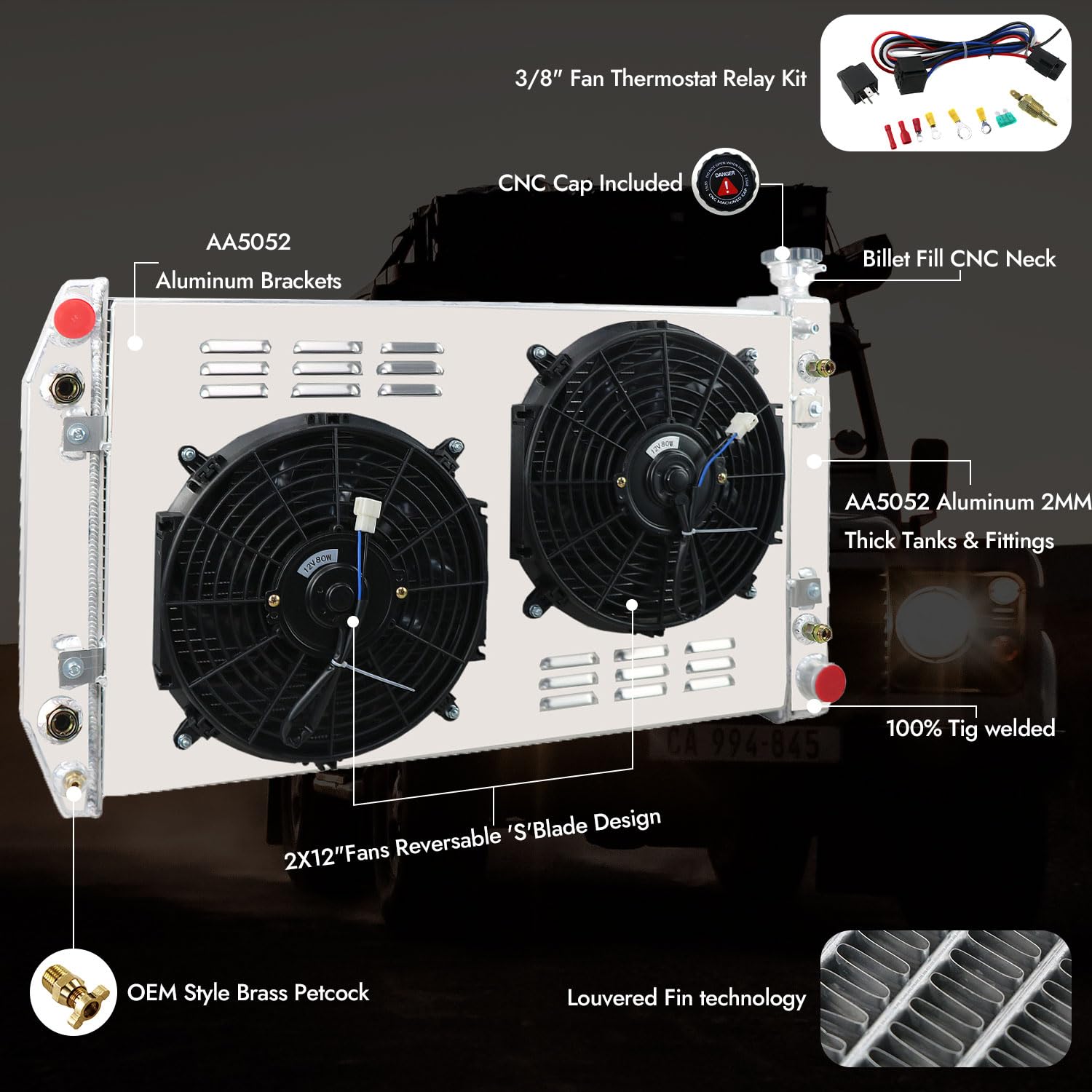

►High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
►Easy to Install. Meticulously built to superior OE standards for a precise fit. No Drilling or Modifications Needed for Installation
►Excellent service. Local delivery. Warranty period 1 Year. Shipping damage, leakage and any other problems can contact us for exchange or refund, reply within 12 hours
►Factory direct sales! AutoCooler aims to provide the most qualified products and the best service to customers. Our goal is meeting your needs!
Customer Reviews
fit like original one
