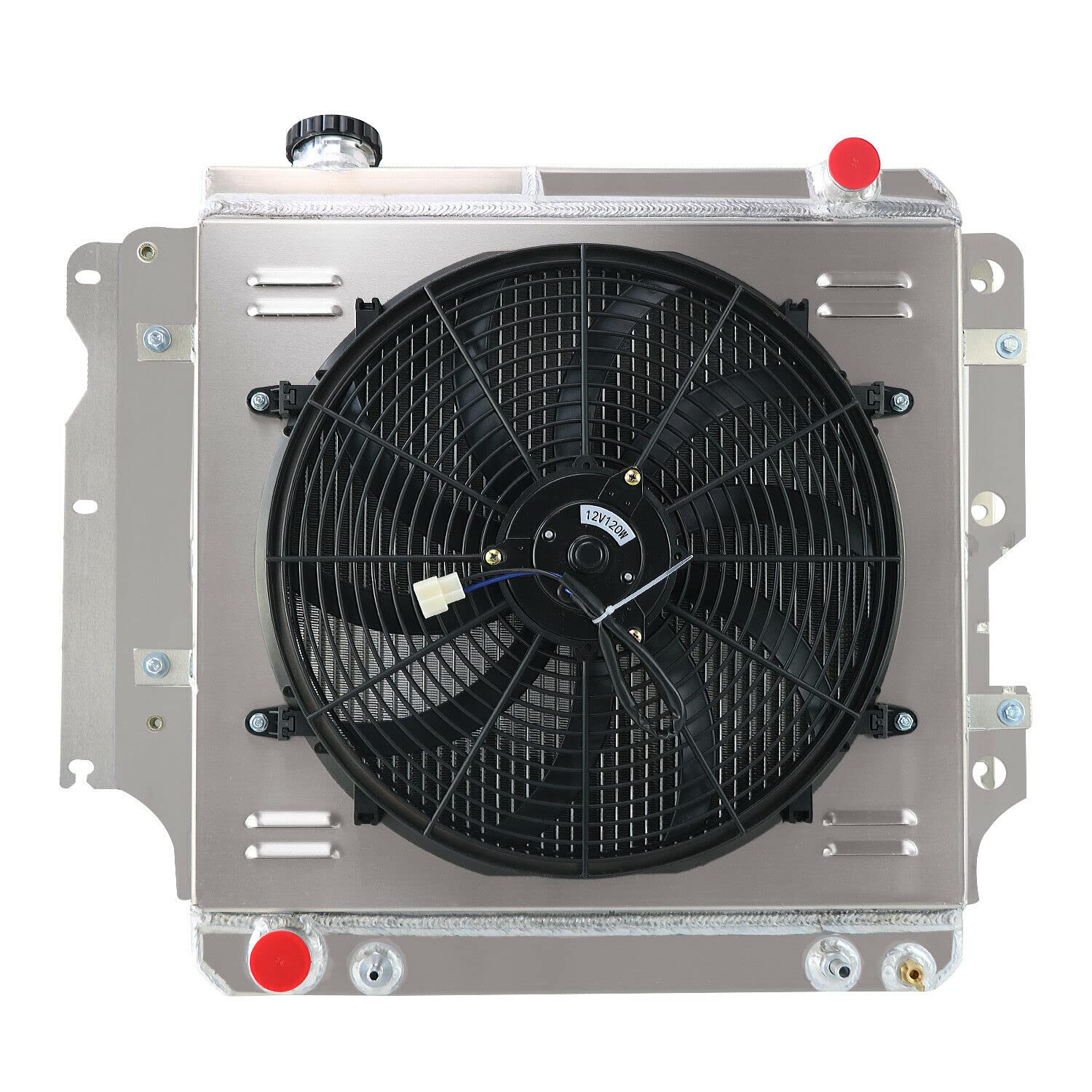

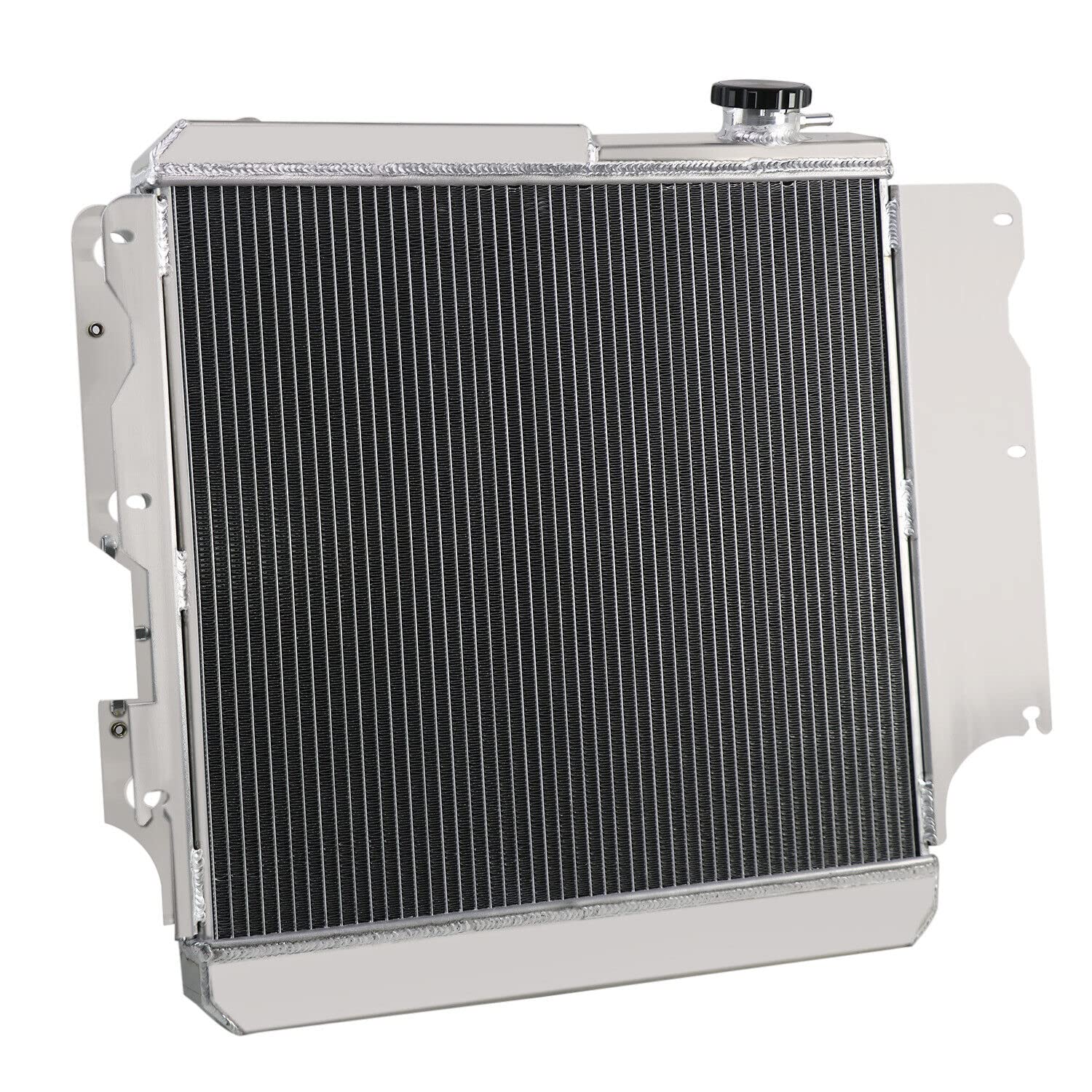

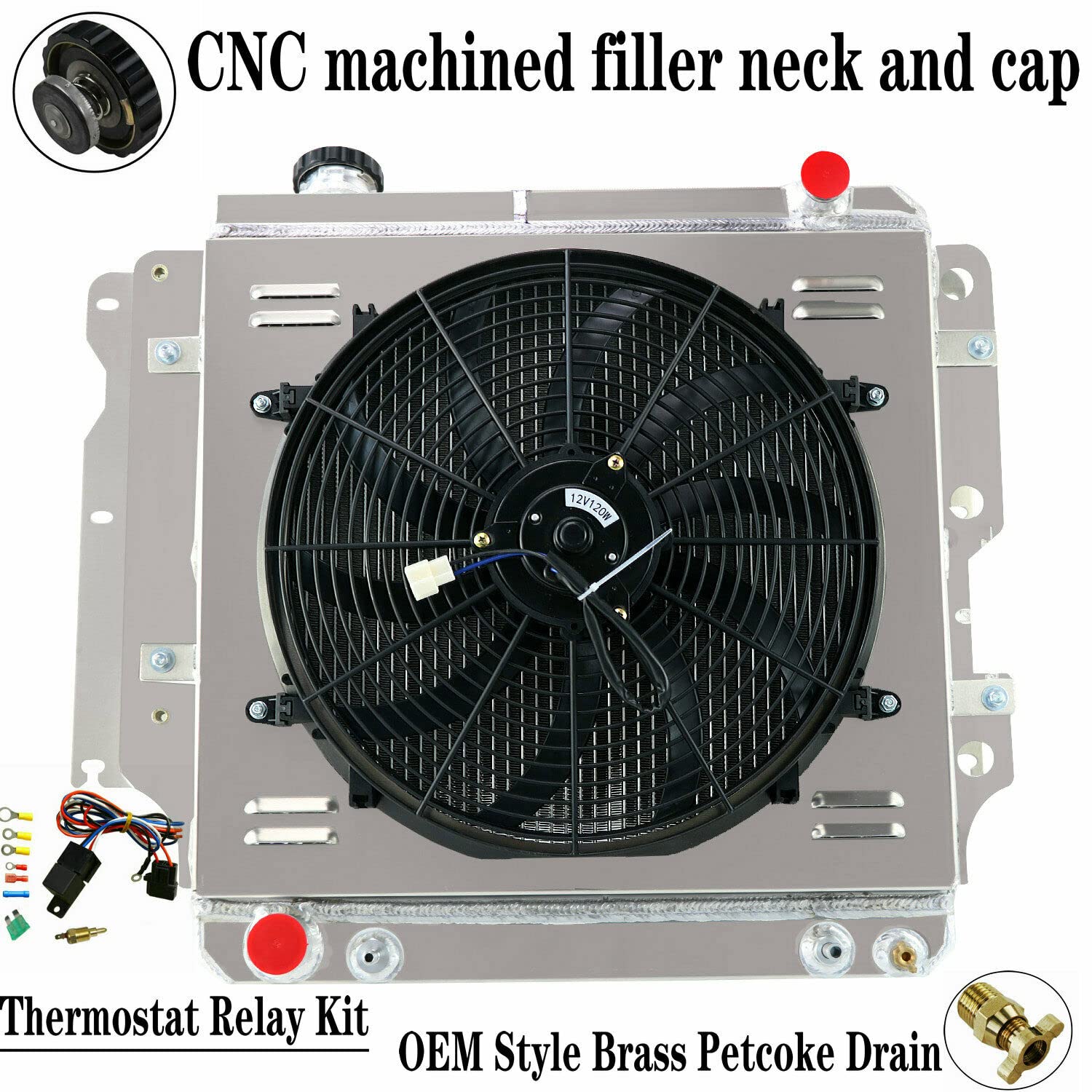

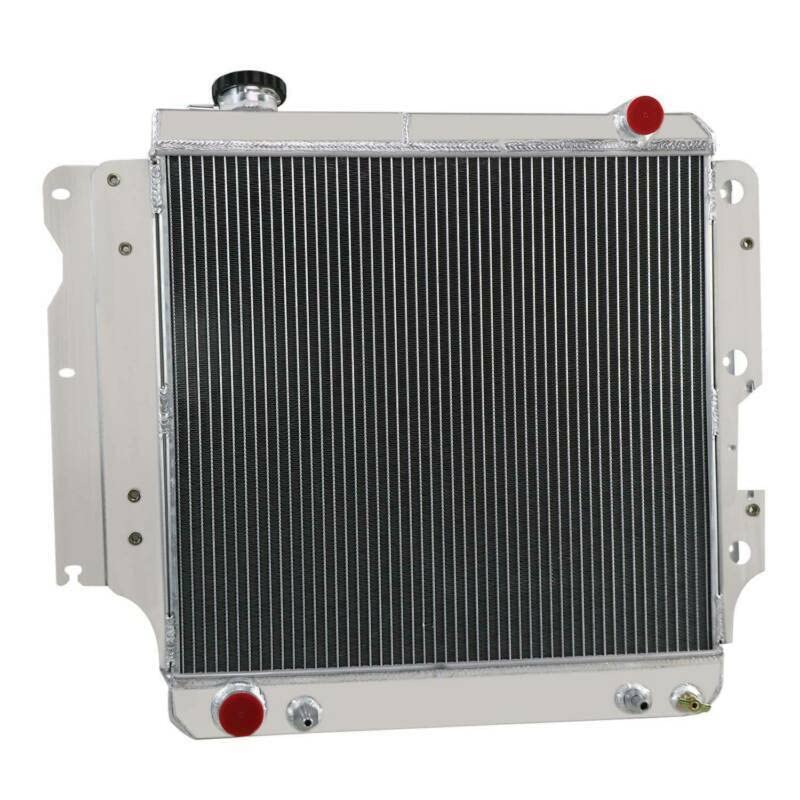

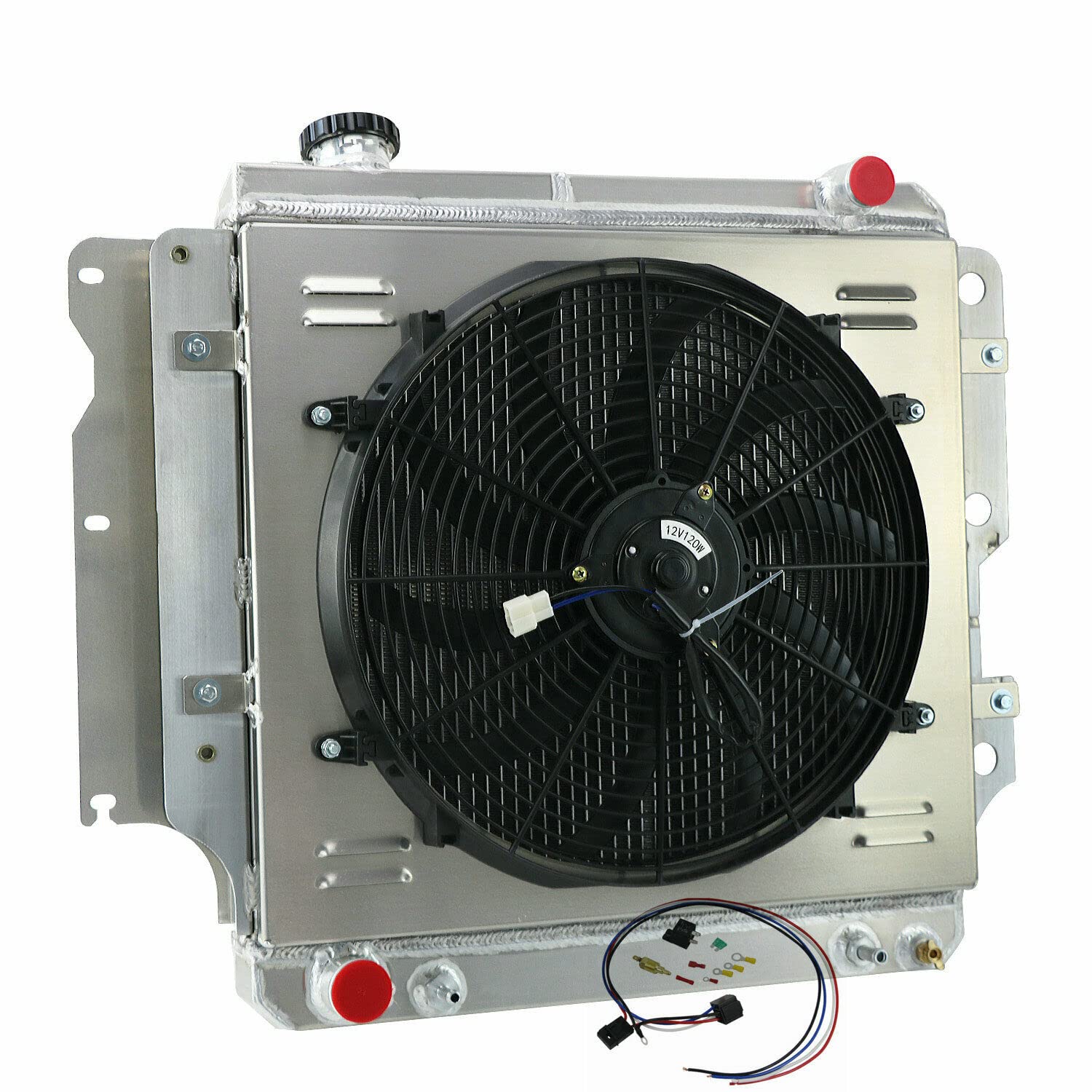

High Performance 4-Row Aluminum Radiator with Fan Shroud & Relay Kit for 1987-2006 Jeep Wrangler YJ/TJ (2.4L 2.5L 4.0L 4.2L L4 L6) - Heavy Duty Cooling Upgrade for Off-Road & Racing Adventures
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:7 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:69530813
Product Description

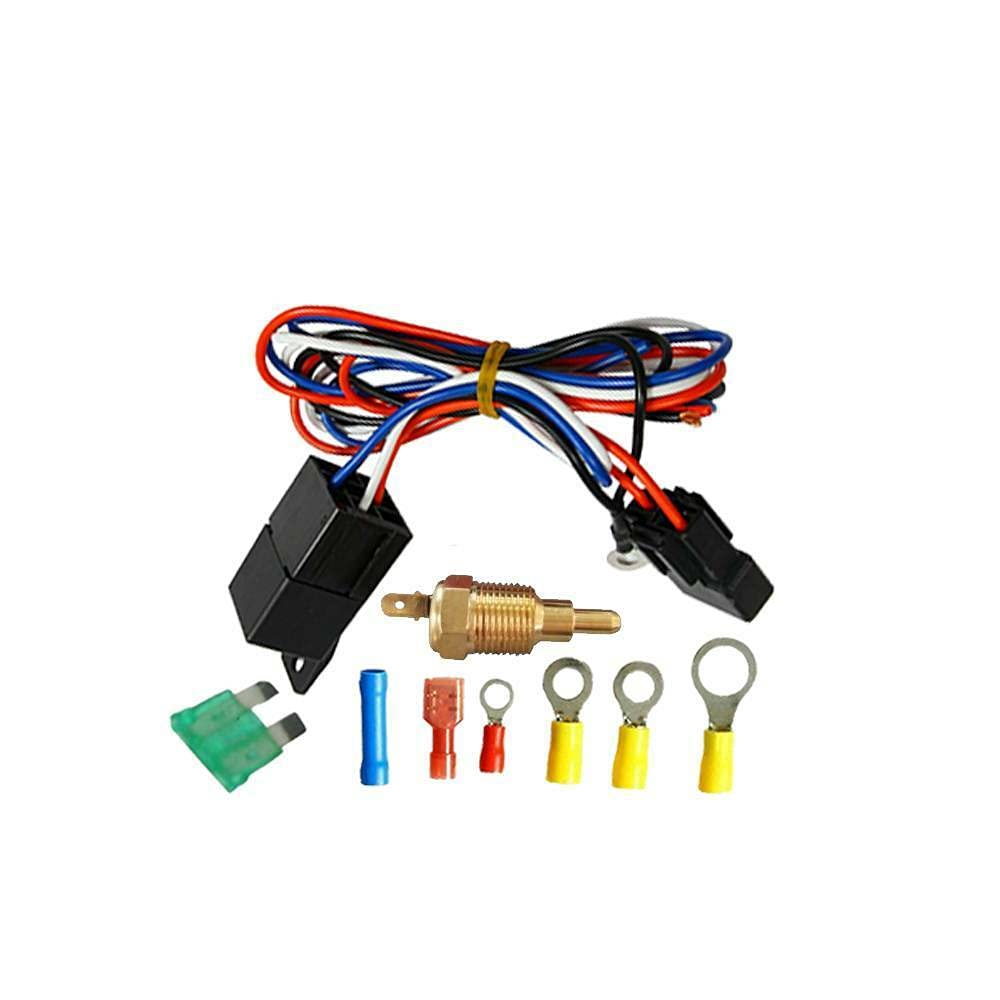

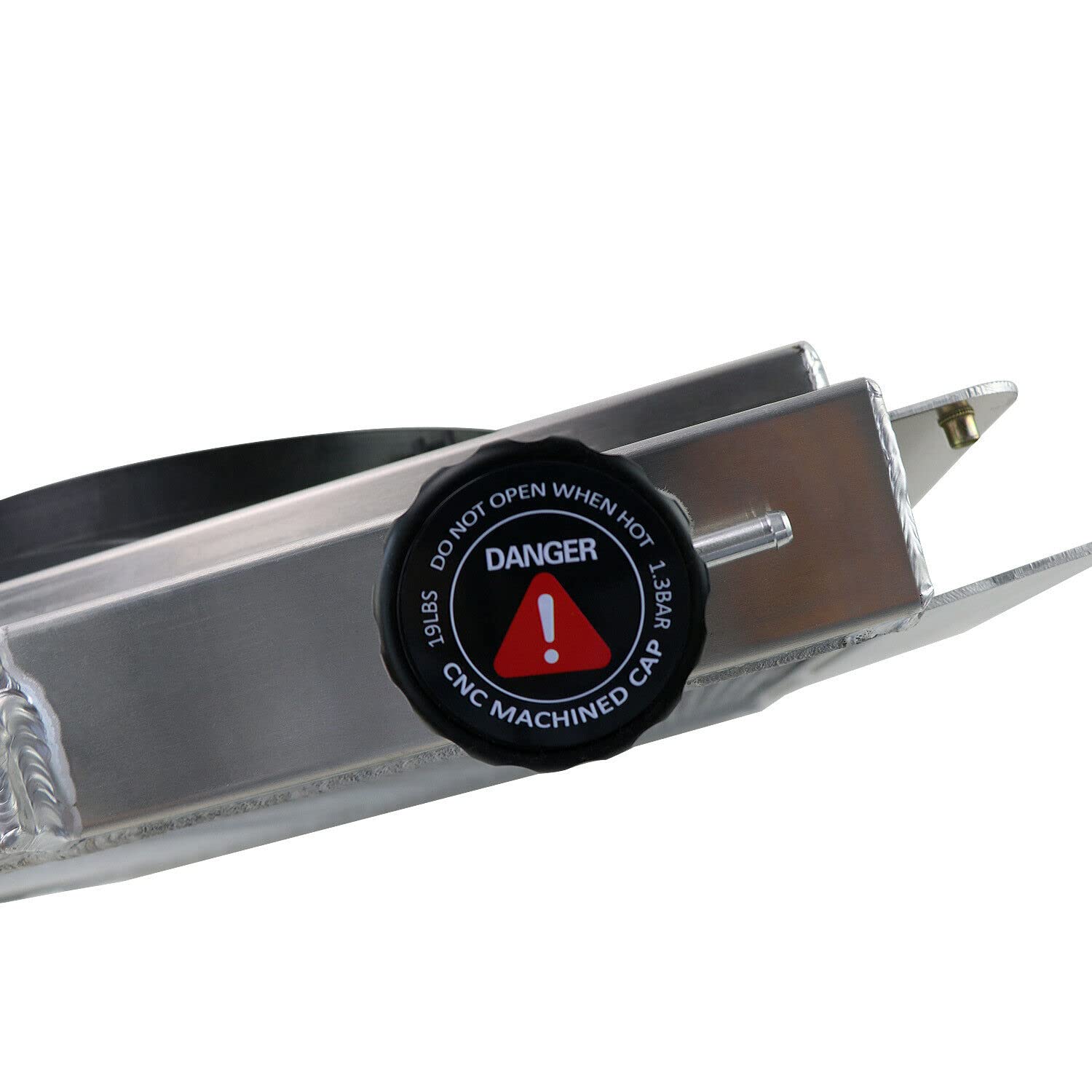

THIS LISTING INCLUDING THE RADIATOR + SHROUD + 14" FANS +Thermostat Kit ! Radiator Size: Row: 4 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Radiator Flow: DOWN FLOW Core Size(H x W): 18 1/2 x 20'' Overall Size(H x W): 23 1/2 x 25 1/2'' Hose Locations: IN: Passenger / OUT: Driver Hose Fittings: IN: 1 1/4 - OUT: 1 1/2 Trans Cooler: YES Mounting Type: BRACKET MOUNT Transmission: Automatic and Manual. Vehicle Fitment: F 1987- 2006 Jeep Wrangler YJ TJ 2.4L-4.2L For 1987- 2006 Jeep Wrangler YJ (2.4, 2.5,V4, 4.0, 4.2, V6) For 87-06 JEEP WRANGLER YJ/TJ 2.4L 2.5L 4.0L 4.2L For 87-06 JEEP WRANGLER YJ/TJ L4/L6 FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050” Thickness (in): 2.500” Number of Blades: 8 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold.
Product Features
■ For 1987-2006 Jeep Wrangler YJ/TJ 2.4L 2.5L 4.0L 4.2L L4 L6
■ Improves cooling by 35% to 45% temperature
■ Made of high quality full T-6061 aluminum construction
■ Stronger and higher capacity for coolant than stock units
■ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
Customer Reviews
Hits on both the water pump snout and water pump bolts. My motor and trans are solid mounted so just the slight body flex from bumps is enough to bounce in and short out the fan. Would have left me stranded if I didn’t put a backup fan on the front of the radiator. Idk what the fix is for this is besides a different product or custom fabrication, also the bolt holes do not line up at all with any of the factory mounting locations. ( update) started leaking under a year in, it loses about a water bottle a day sitting, customer service did warranty my radiator, I received a replacement from them, thank you! I did not request anything on the fan nor shroud as I did some custom work to get the radiator to fit with a OEM clutch fan.
