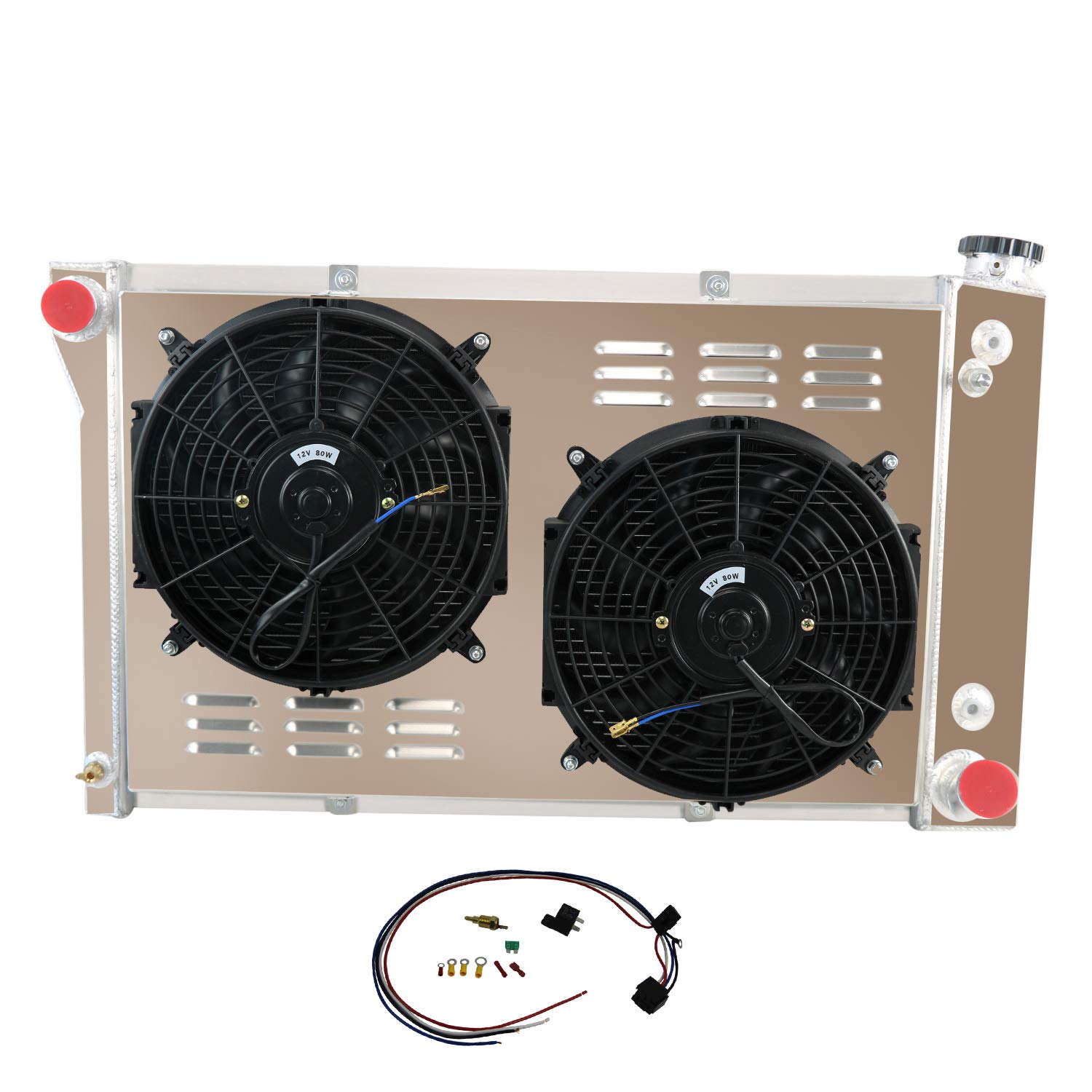

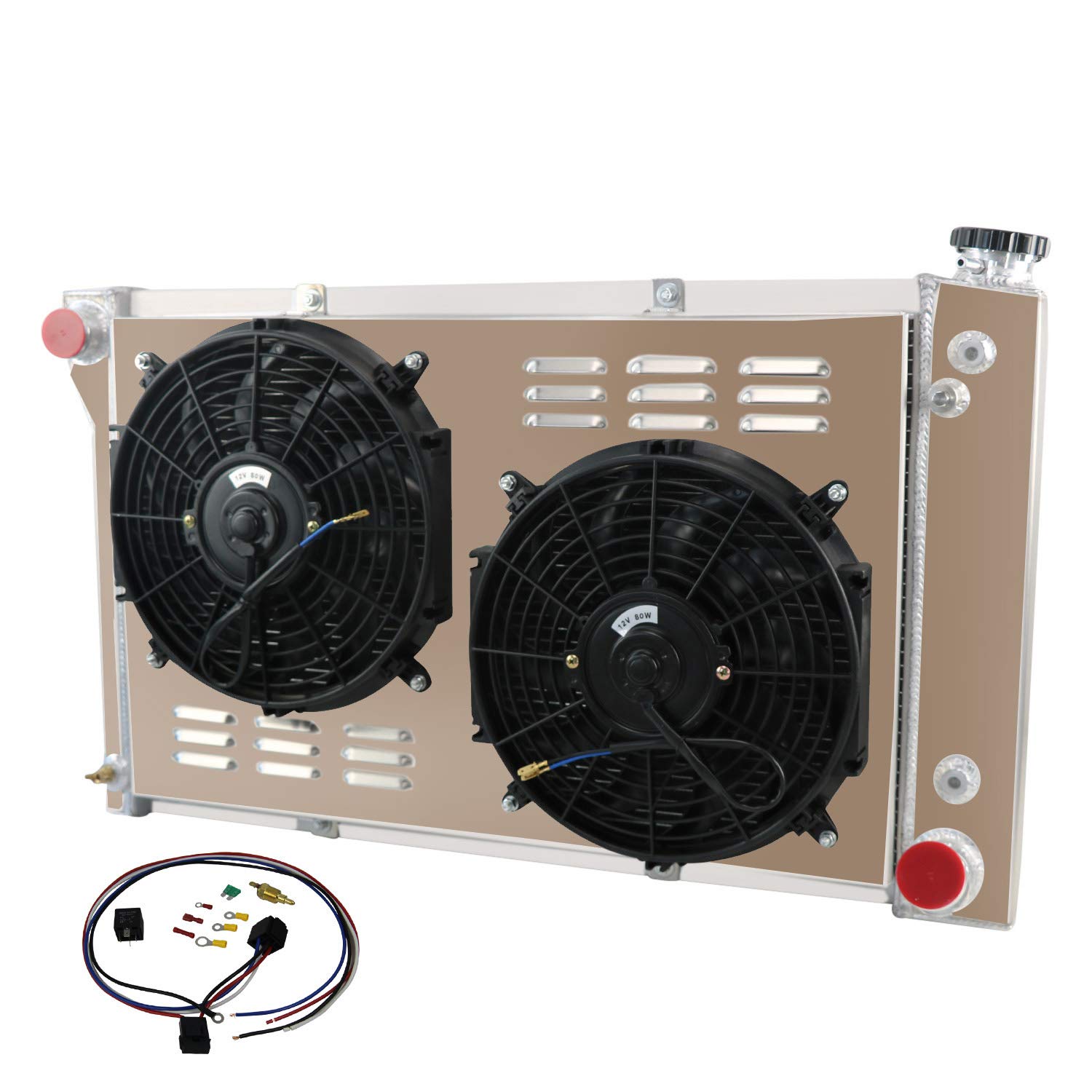

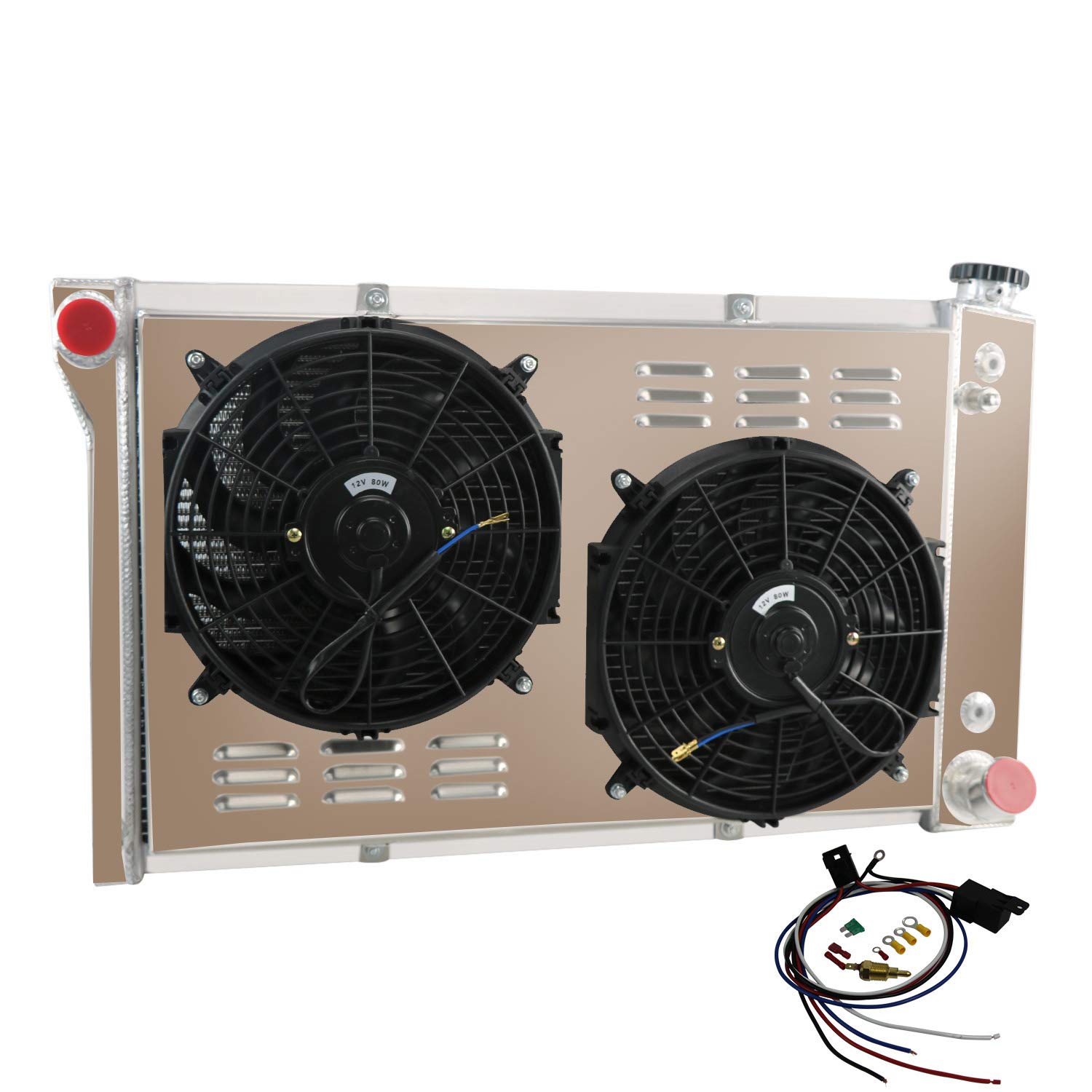

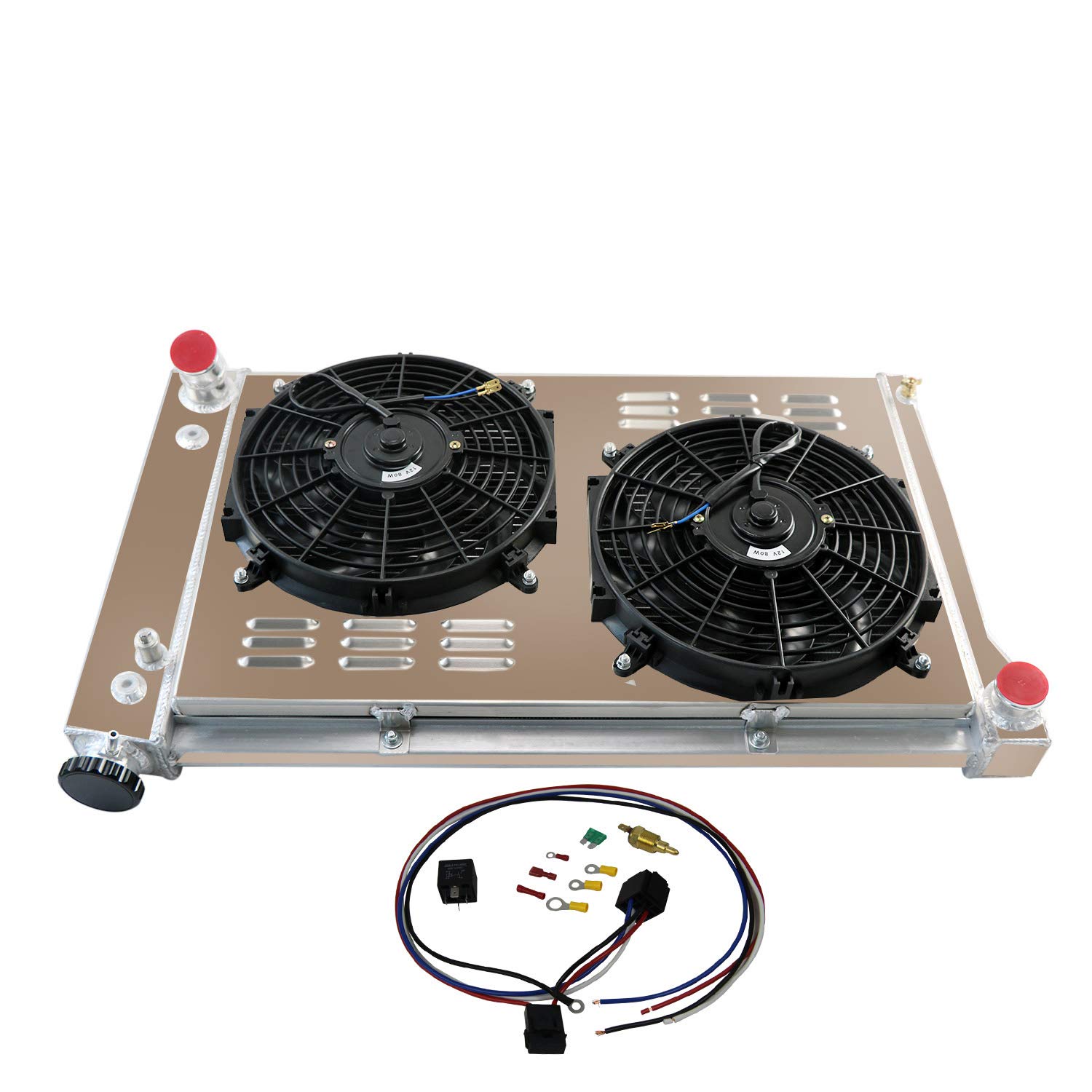

ALLOYWORKS 4 Row Aluminum Radiator with Shroud Fan & Relay Kit - Compatible with 1967-1972 Chevy C10 C20 C30 K10 K20 K30 & GMC Pickup Trucks - Heavy Duty Cooling for Off-Road, Towing & Performance Upgrades

Product Description

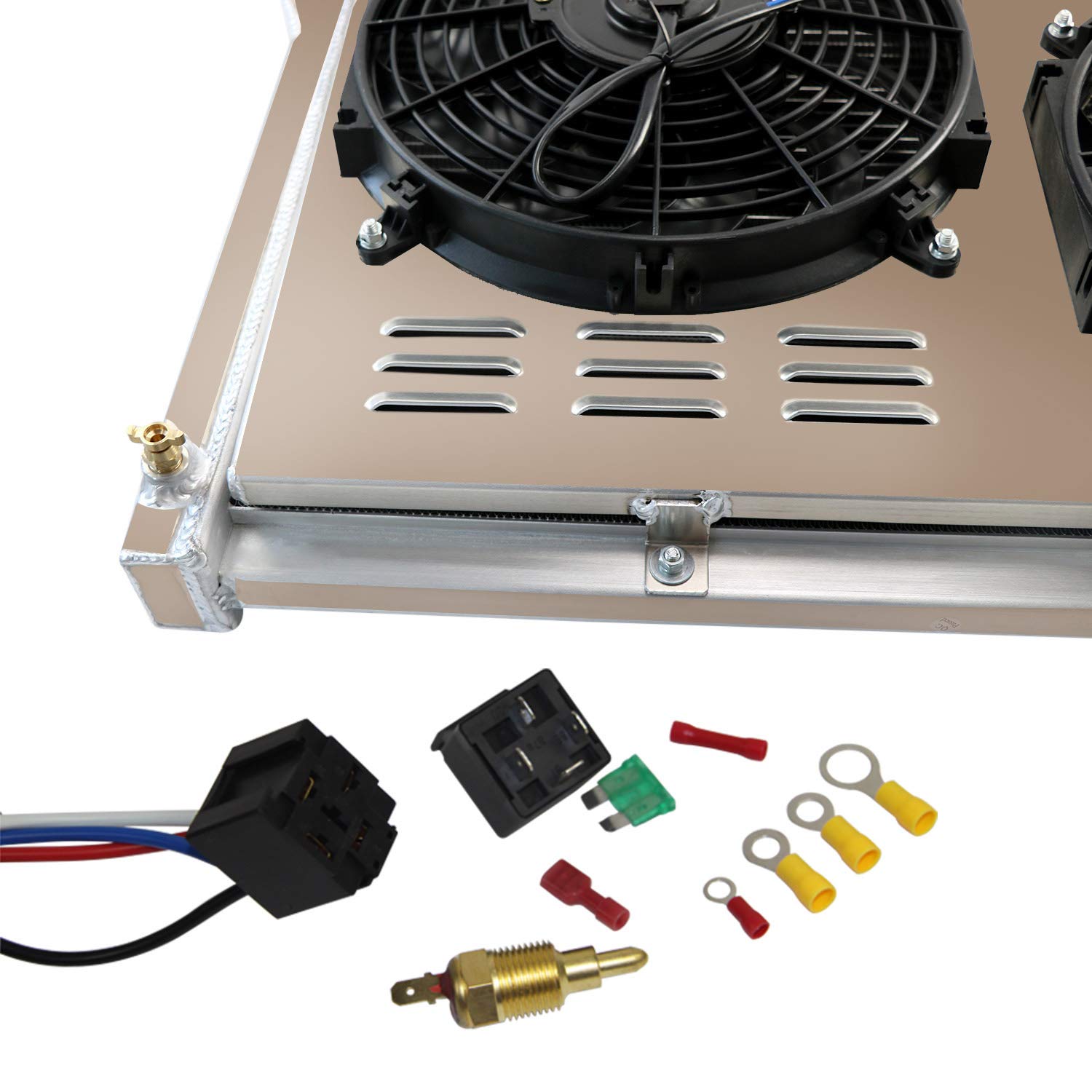

THIS LISTING INCLUDING THE RADIATOR AND SHROUD AND TWO 12" FANS + THERMOSTAT KITS! Radiator Size: Row: 3 Row Core Material: Full Aluminum Radiator Cap: included Core and Tank: All Aluminum Core Dimensions: 16 1/4" H x 26 1/4" W Overall Dimensions: 18 1/4" H x 31 5/8" W (incl brackets) Upper inlet: 1 1/2" located on driver side. Lower outlet: 1 3/4" located on passenger side. Auto trans cooler: included OEM mount system 3 Row- will cool 850hp Transmission: Automatic and Manual. Vehicle Fitment: FOR 67-72 Chevrolet Truck/Van FOR Chevy For GMC C/K S/T Pickup 67-72 FOR 70 71 72 GMC P Series FOR 67-72 Chevy C/K Series P/U FOR 68-71 Chevy G-Series Van FOR Chevy Blazer / Jimmy 69-72 26“-core FANS: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold
