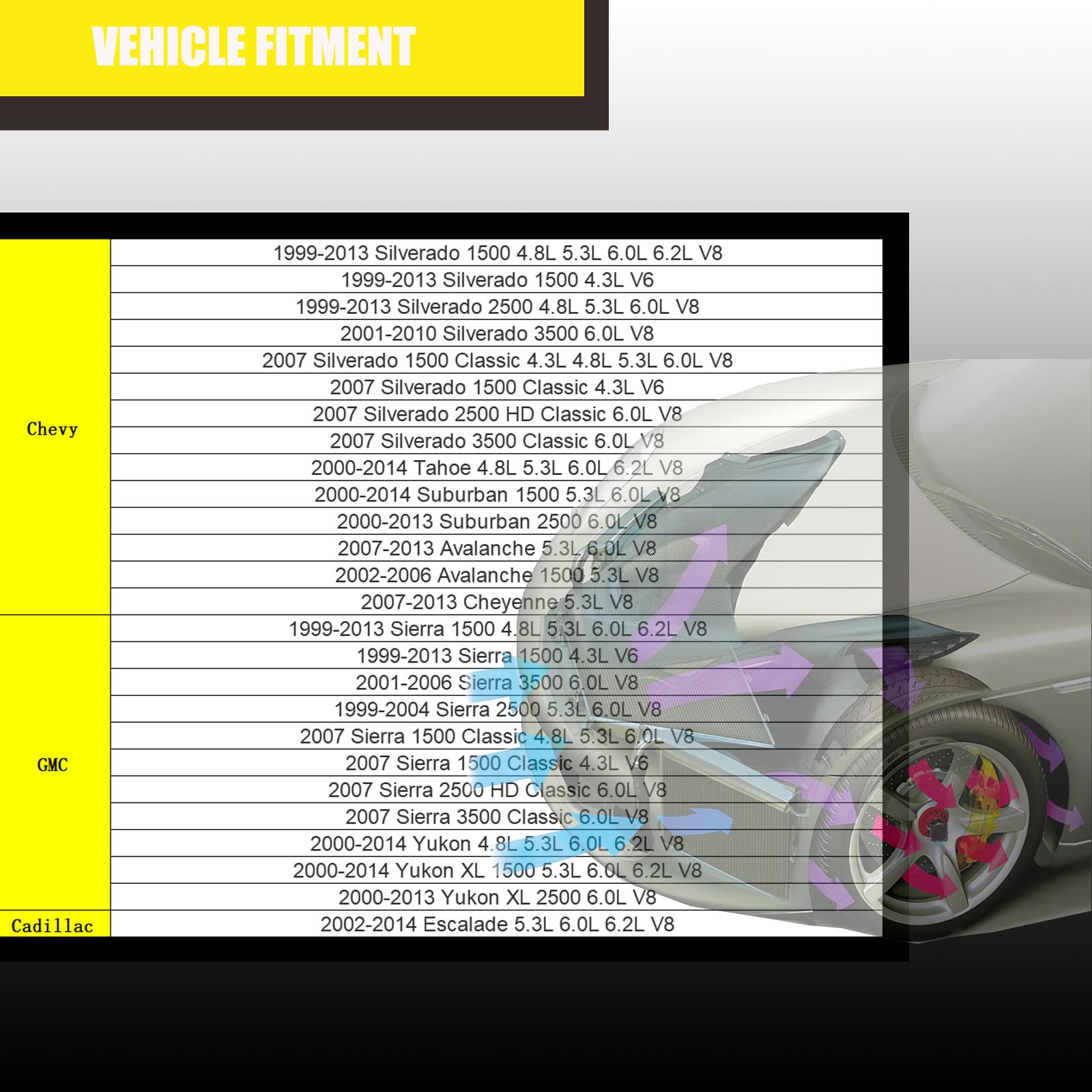

High Performance 3 Row Aluminum Radiator for 1999-2014 Chevy Silverado 1500/2500/3500, Tahoe, Avalanche, Suburban & GMC Sierra, Yukon, Cadillac Escalade 5.3L V8 - Includes 14" Fan Shroud & Relay Kit - Perfect for Off-Roading, Towing & Heavy Duty Use
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:12 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:68721739
Product Description

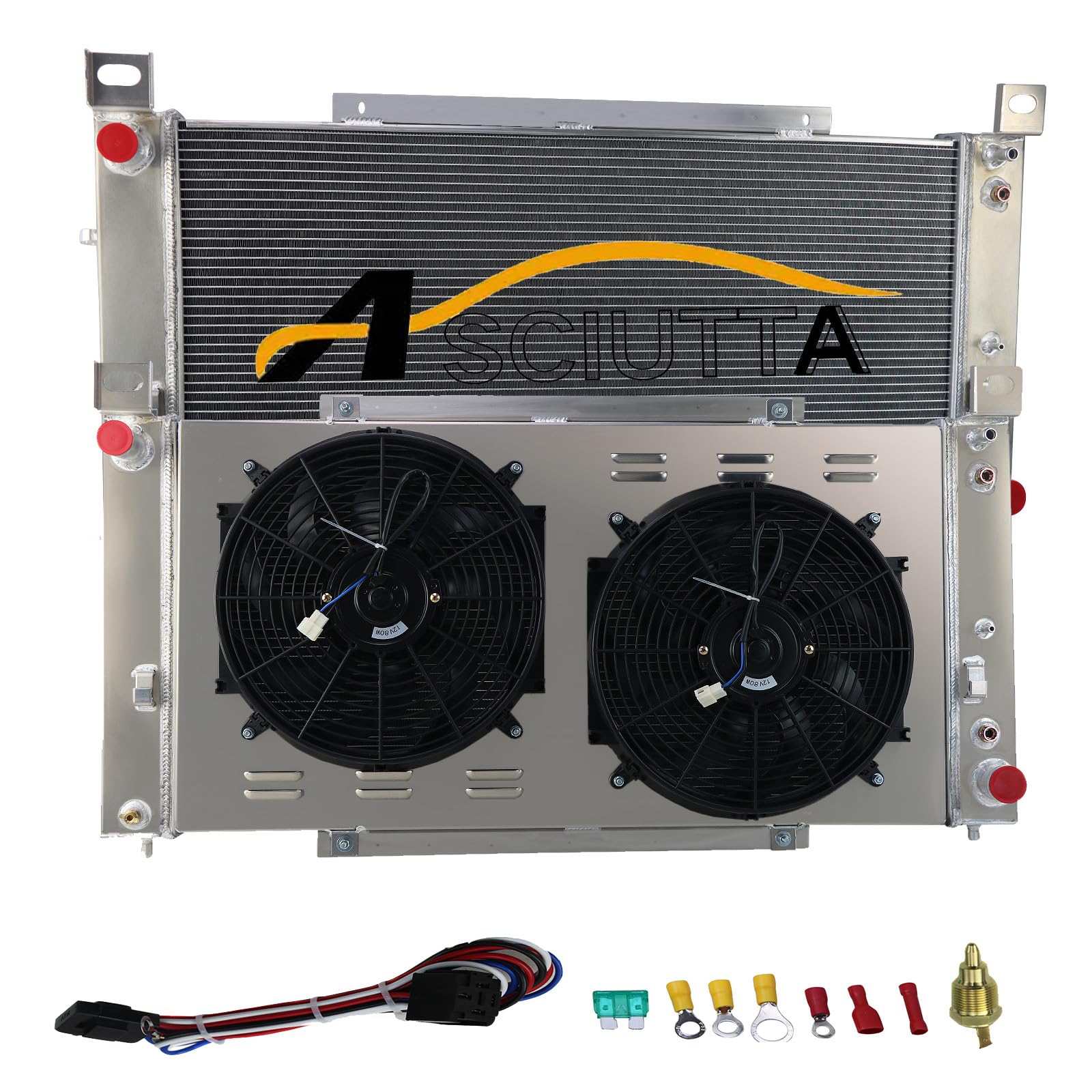

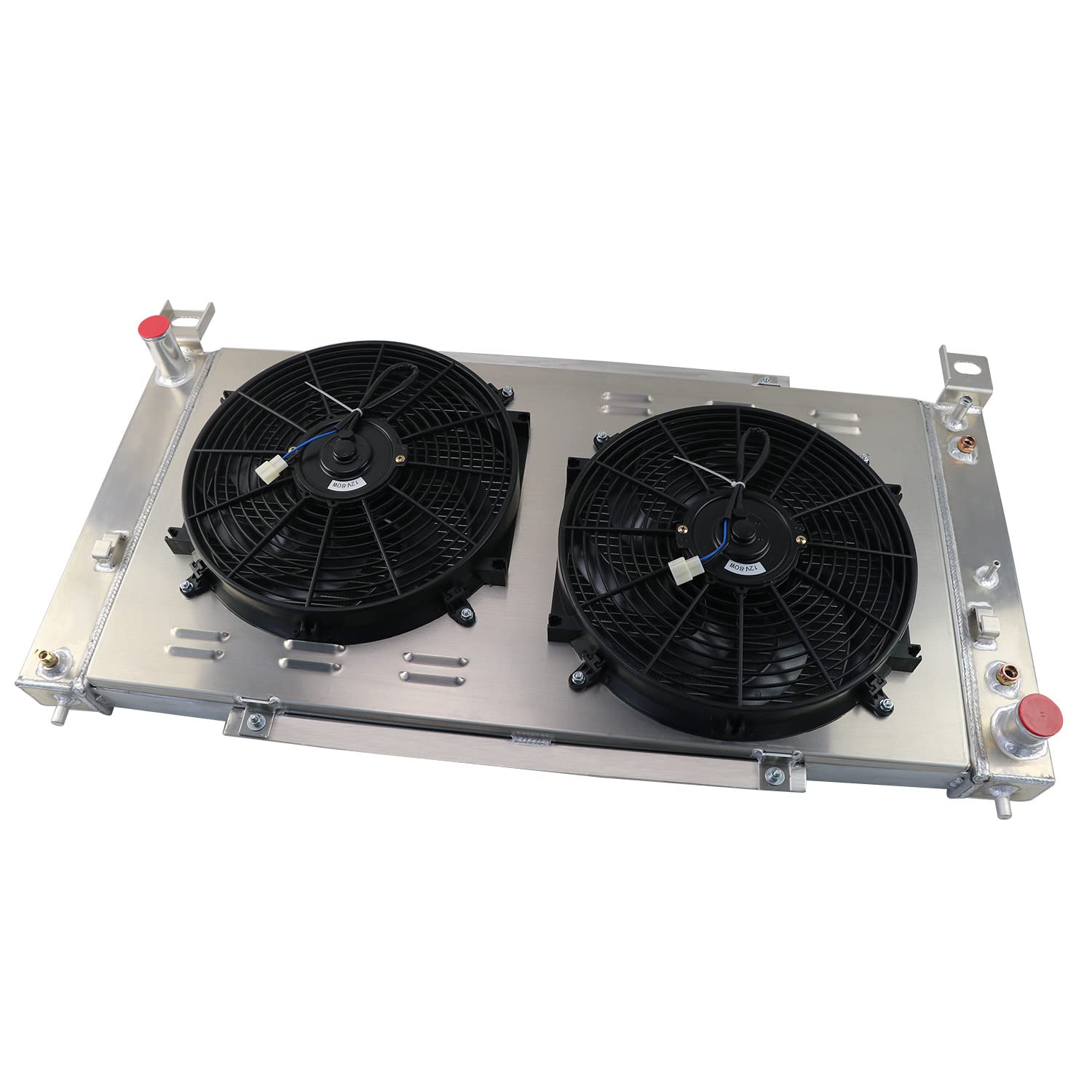

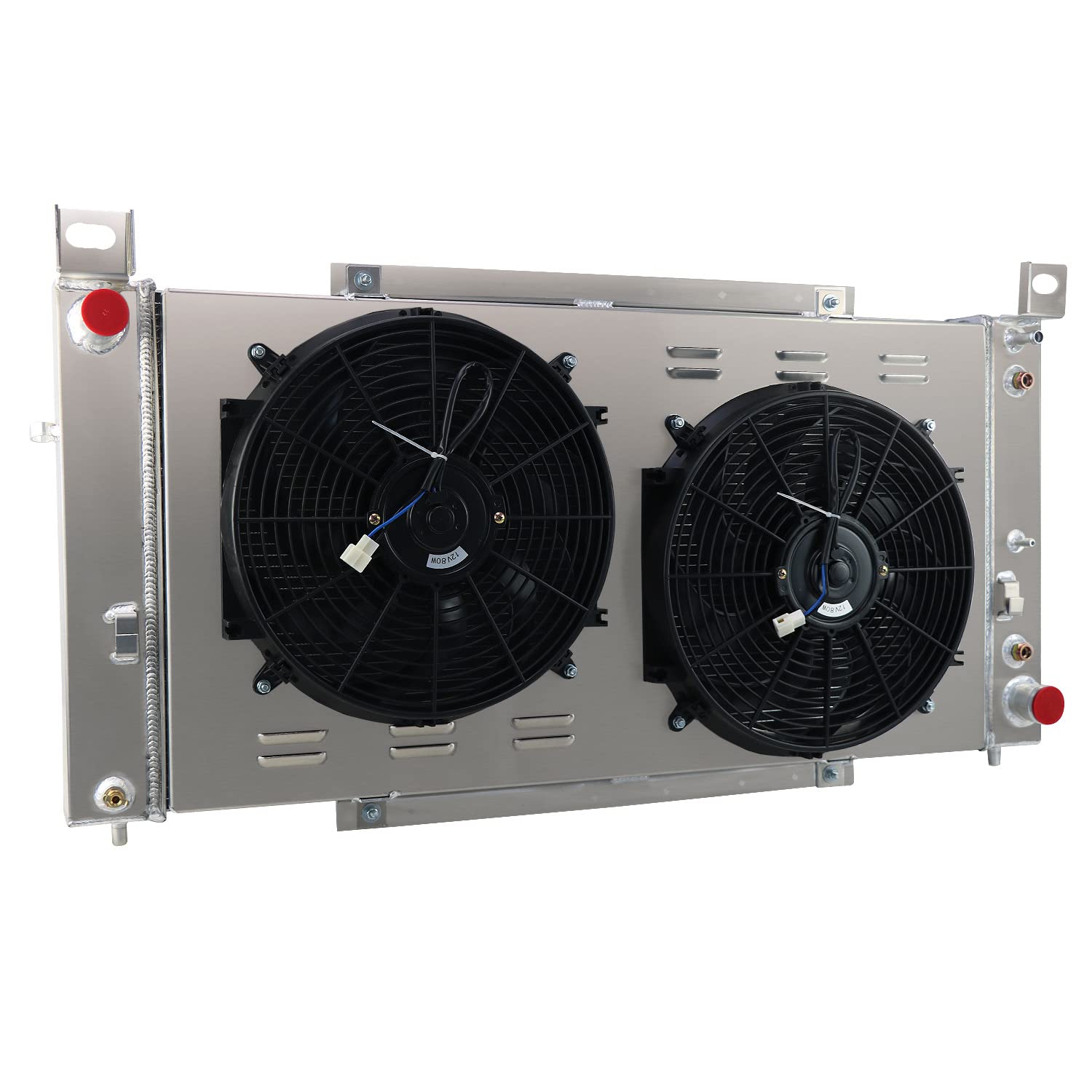

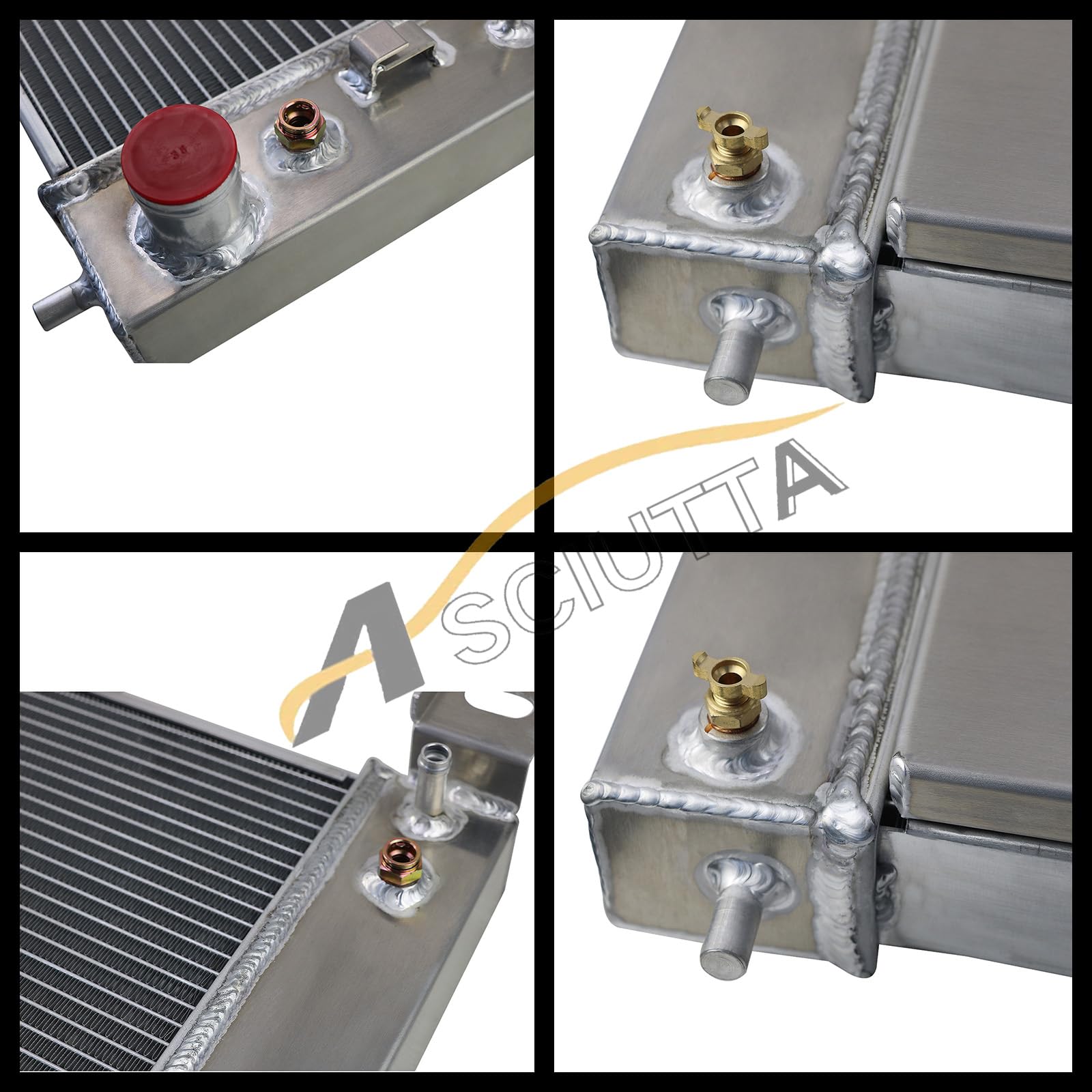

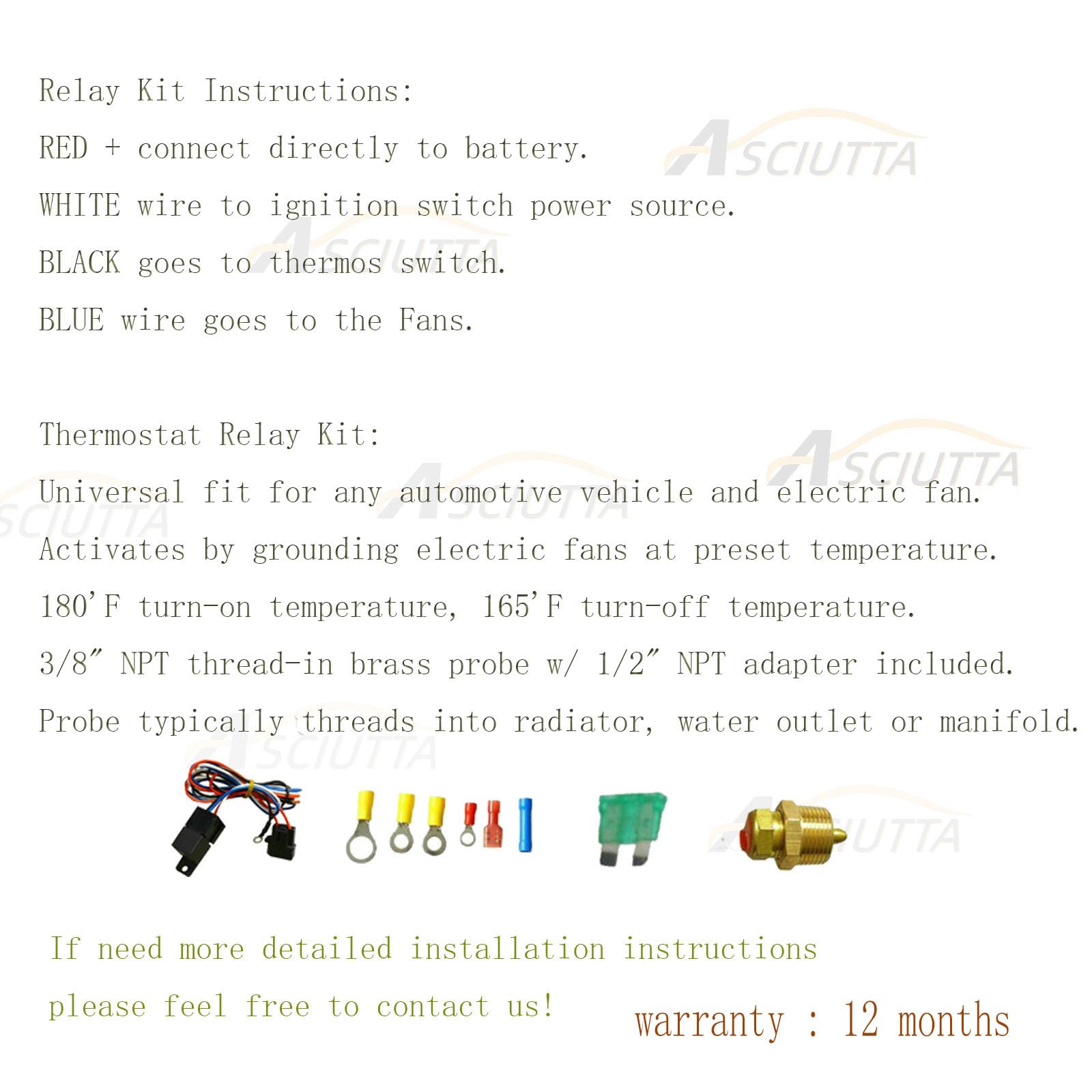

Relay Kit Instructions RED + connect directly to batteryWHITE wire to ignition switch power sourceBLACK goes to thermos switchBLUE wire goes to the Fans Radiator Details Core Row: 4 Row Core Material: All Aluminum Radiator Cap: Included Radiator Flow: Down Flow Cool Up To: 750hp Fitment Type: Direct Replacement The tanks are 100% welded by TIG CNC machined filler neck and cap OEM style brass petcock drain High Performance Racing Spec Fan Specification Maximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS:14.05" X 14.05" X 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps This Listing Is Including 1 X 3/4-Row Aluminum Radiator (Includes Radiator Cap) （1 X Aluminum Shroud 2 X 14" Fan (Includes mounting kits) 1 X Thermostat Relay Kit） Why Choose ASCIUTTA Radiator? 1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package
Product Features

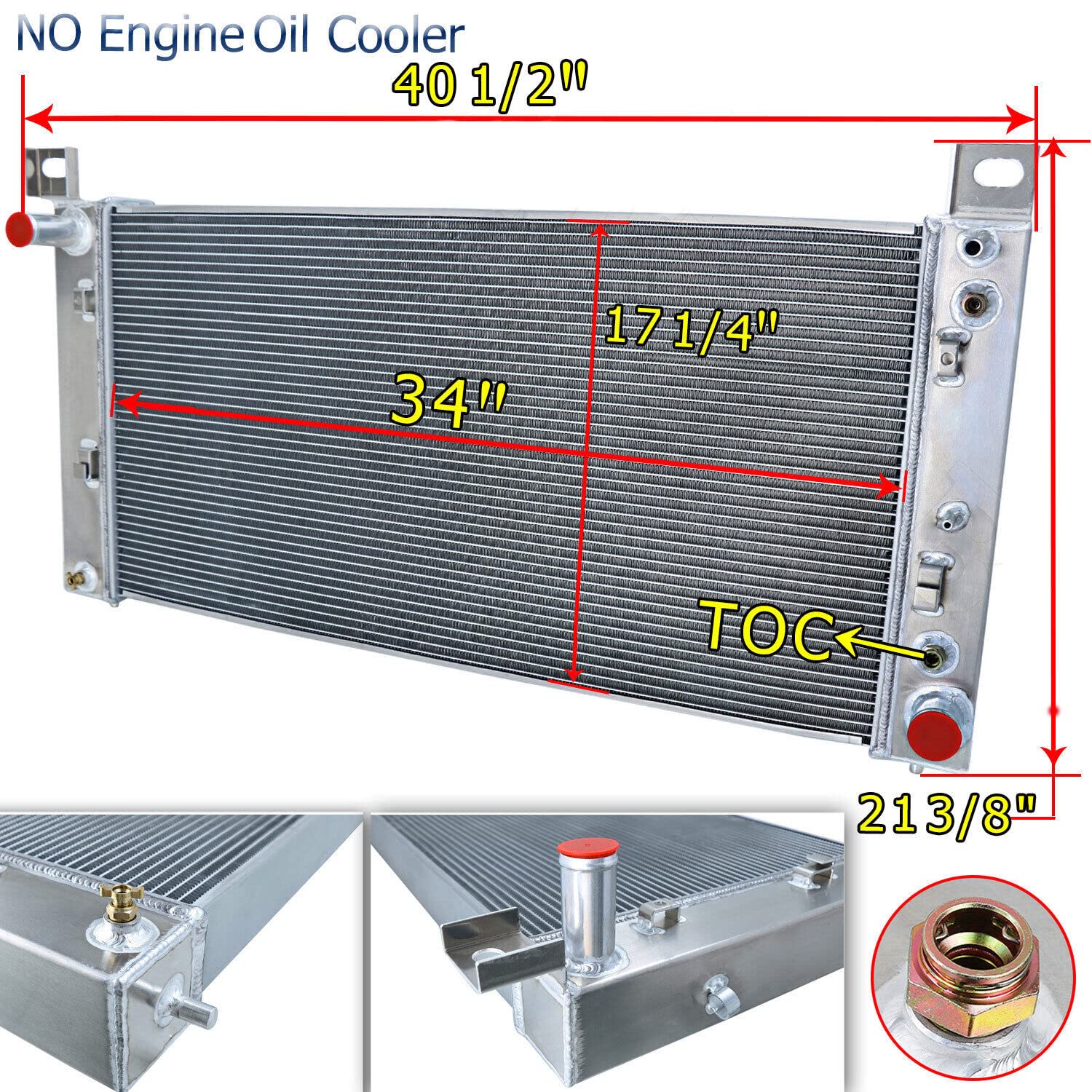

Radiador De Aluminio, Core Size 34"W X 17 1/4"H; Overall Dimensions 40 4/5"W X 21 1/2"H X 5"T; Tank Size 3 1/4" X 18 1/2"
Inlet Hose Connection 1 5/16"; Outlet Hose Connection 1 9/16"; Transmission Cooler φ26*292*5/8-18unf(z); Engine Oil Cooler φ26*292*m20*1.5
Built with high density multi-Lowered fins for maximum cooling efficiency. At least 40% more efficient than stock one.
Features 100% Leak Tested, 3 Rows, Cross Flow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation
Light Weight Direct Bolt-On OE Fitment or Replacement. 1-year warranty. Any questions, just email us.
Customer Reviews
The radiator all and all looks great! It was dented on one side. The issue is that the radiator doesn’t Interchange?For this specific make and model plus year the radiator should have interchanged. I’m not so sure why they would sell one without an oil cooler and one with for that specific model.
