All-Aluminum 3-Row Radiator for 1972-1986 Jeep CJ5 CJ6 CJ7 & GM Chevy V8 350 Engine - AT/MT Compatible with Fan Shroud & Relay - Perfect for Off-Roading, Restoration & Performance Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:66020972
Product Description

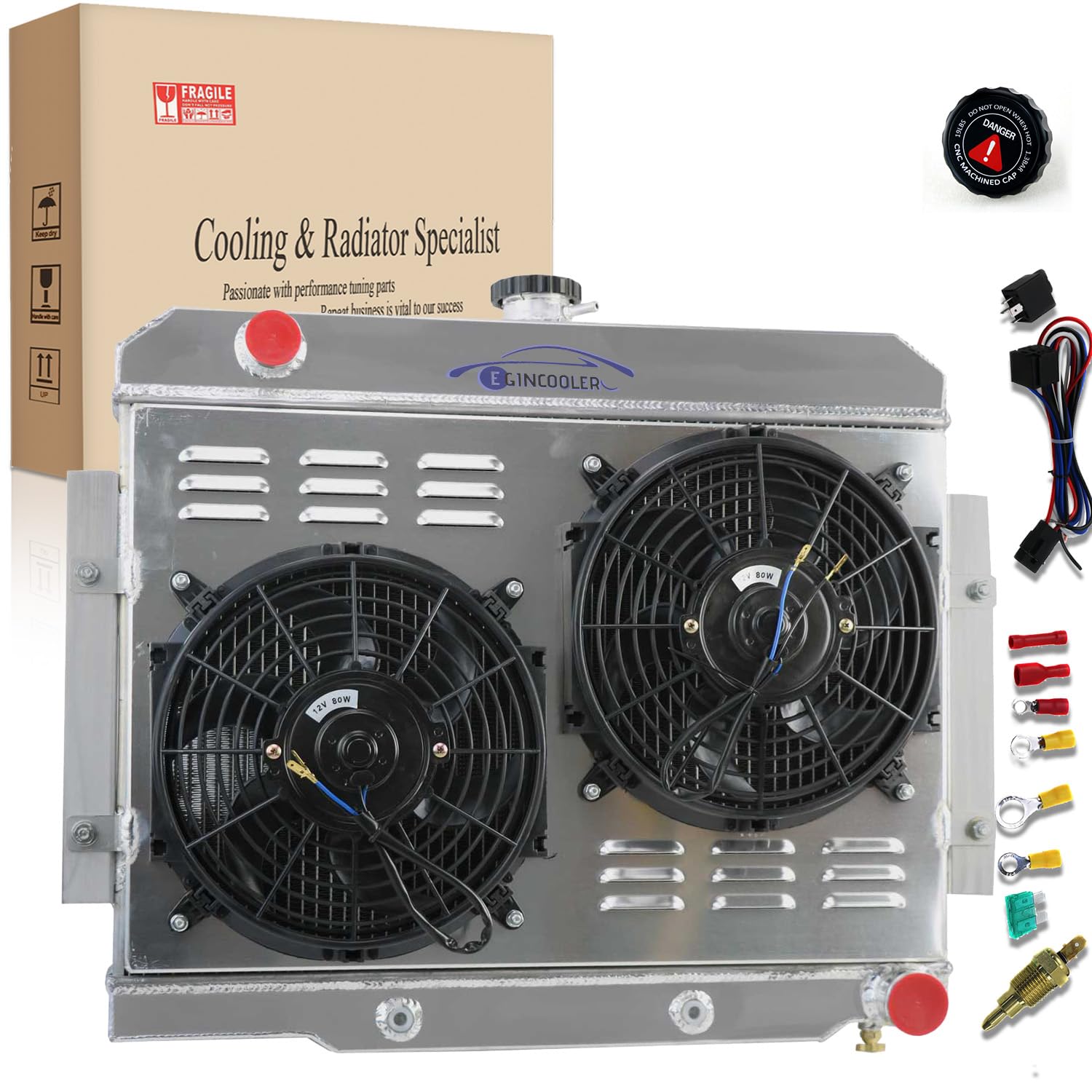

Our Certificates Vehicle Fitment For 1972-1986 Jeep CJ Series CJ5 CJ6 CJ7 GM EnginesFor 1982-1986 Jeep Scrambler GM Engines Relay kit Instructions RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.This set up will run Fans & pull air in through radiator Specifications: Flow Type: Crossflow CORE: 16'' TALL X 24'' WIDE OVERALL: 22'' TALL X 27'' WIDE BRACKET MOUNTING ACROSS: 25 3/4 UPPER HOSE CONNECTION: 1 1/2'' (LEFT SIDE) LOWER HOSE CONNECTION: 1 1/2'' (RIGHT SIDE) Manufacturer Part Number 1919, SBR1919, CC1919, CU1919, DPI1919 Interchange Part Number AE1919,EC1919,MC1919 CBR1919 Brand EGINCOOLER Materail AA5052 Aluminum Fan Specification Maximum Fan CFM 2500±200 Fan Diameter (in) 10.050" Thickness (in) 2.500" Number of Blades 6 blades Maximum Fan RPM 2,250 rpm Amp Draw 12.70 amps 2 ROW 3 ROW 4 ROW 100% Aluminum Construction100% fully tested to ensure top qualityKeep the Engine Coolant CoolTIG-welded craftsmanship
Product Features
[Vehicle Fitment] For 1972-1986 Jeep CJ Series CJ5 CJ6 CJ7 GM Engines; For 1982-1986 Jeep Scrambler GM Engines; Please check the compatibility carefully before your purchase

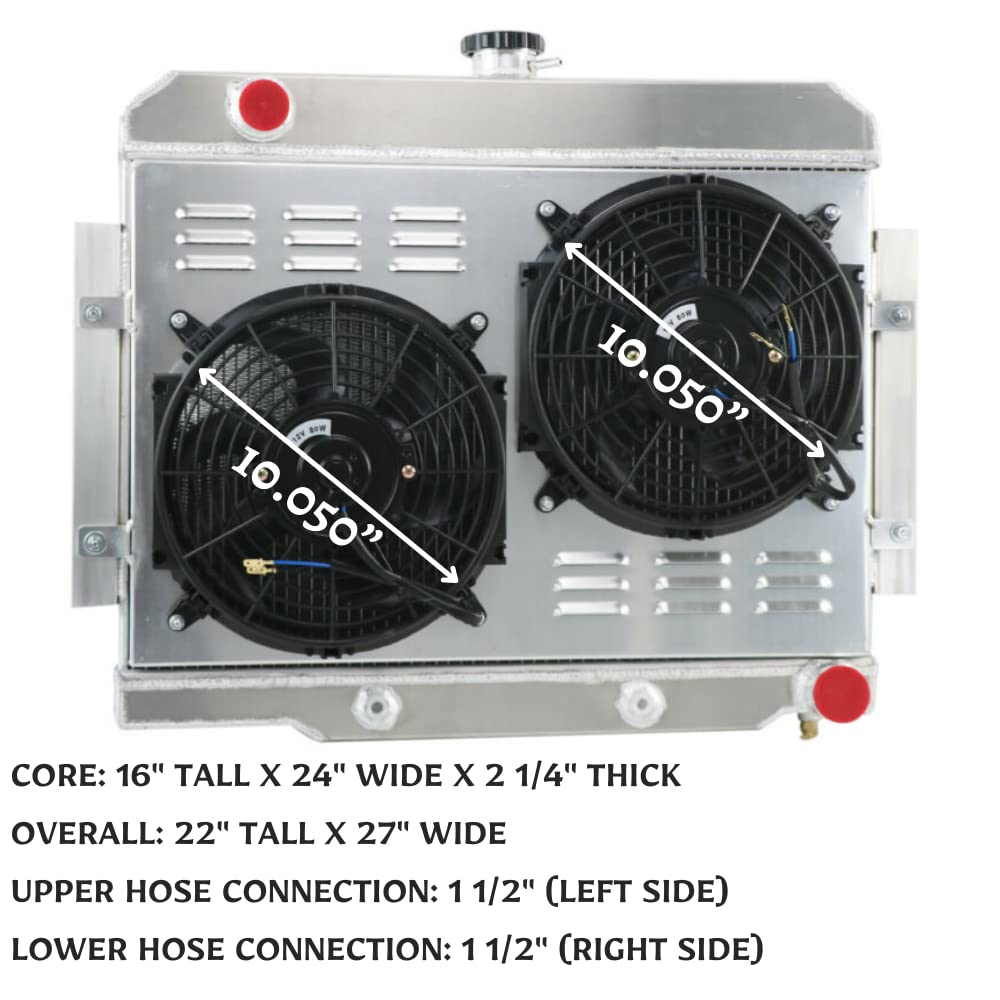

[Specifications] CORE 16'' TALL X 24'' WIDE X 2 1/4'' THICK OVERALL 22'' TALL X 27'' WIDE BRACKET MOUNTING ACROSS 25 3/4 UPPER HOSE CONNECTION 1 1/2'' (LEFT SIDE) LOWER HOSE CONNECTION 1 1/2'' (RIGHT SIDE)
[Reference Number] Manufacturer Part Number 1919, SBR1919, CC1919, CU1919, DPI1919 Interchange Part Number AE1919,EC1919,MC1919 CBR1919

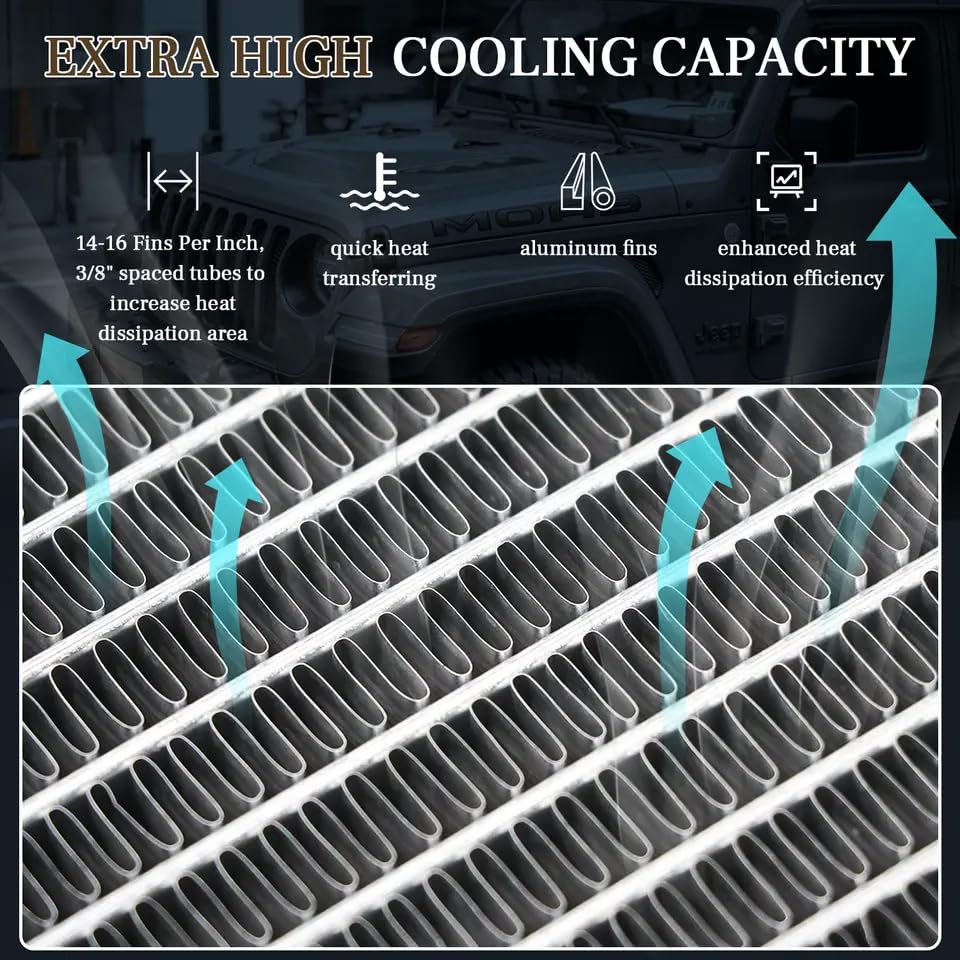

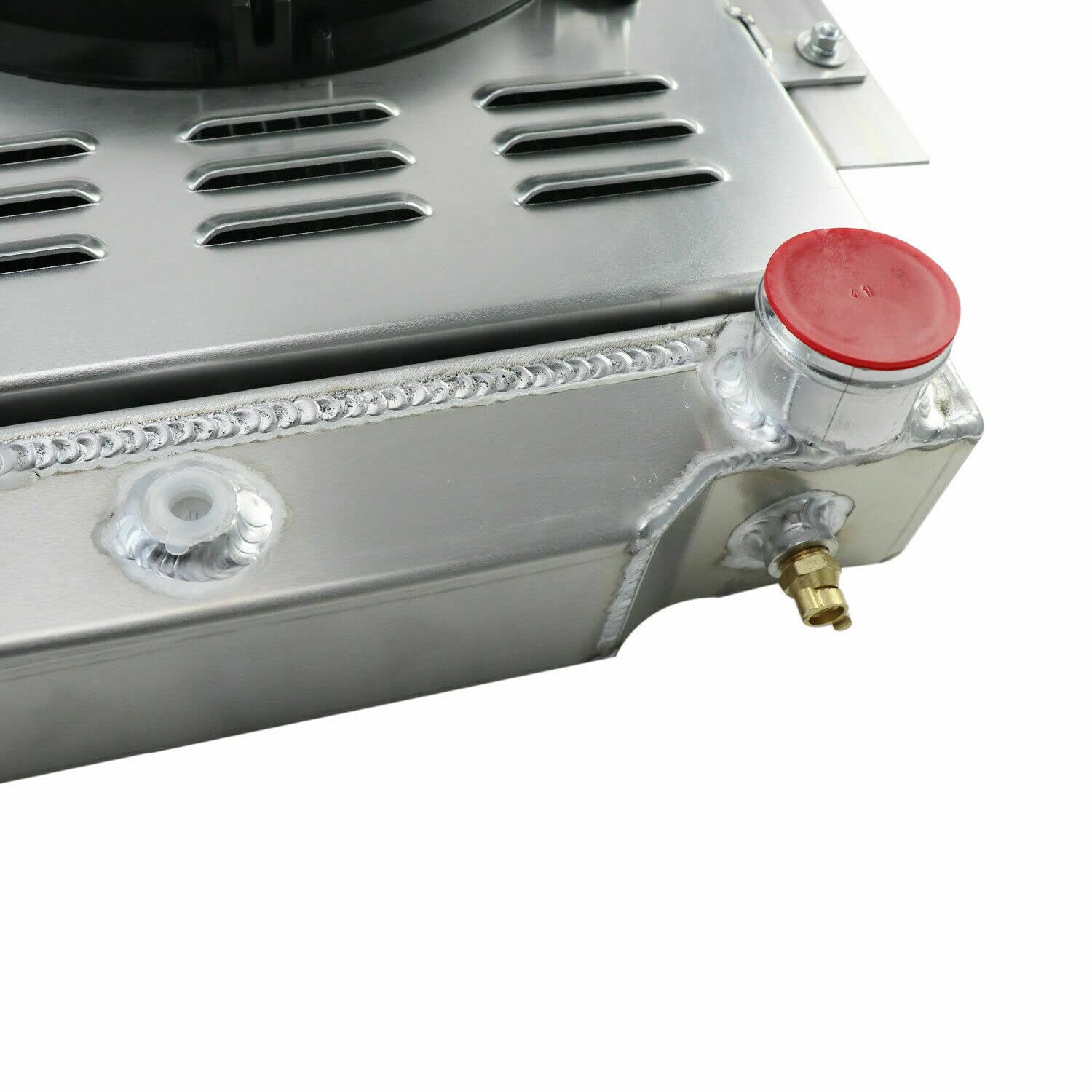

[Advantage] Full aluminum construction with durable, TIG-welded end tanks, increased durability over the factory plastic end tank radiator. All aluminum construction & TIG-welded craftsmanship fully. High performance design, improves cooling by 30%+ temp
[Customer Support] If you have any questions, never mind contact our friendly,helpful,and knowledgeable customer service representatives,we will be glad to address any questions or concerns promptly
