High-Performance 3-Row Aluminum Radiator for 1985-1994 Ford Explorer/Ranger/Bronco II V6 - Direct Fit Replacement with Cooling Fan Shroud & Relay Kit - Perfect for Off-Roading, Towing & Hot Weather Driving
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:20 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:64158422
Product Description

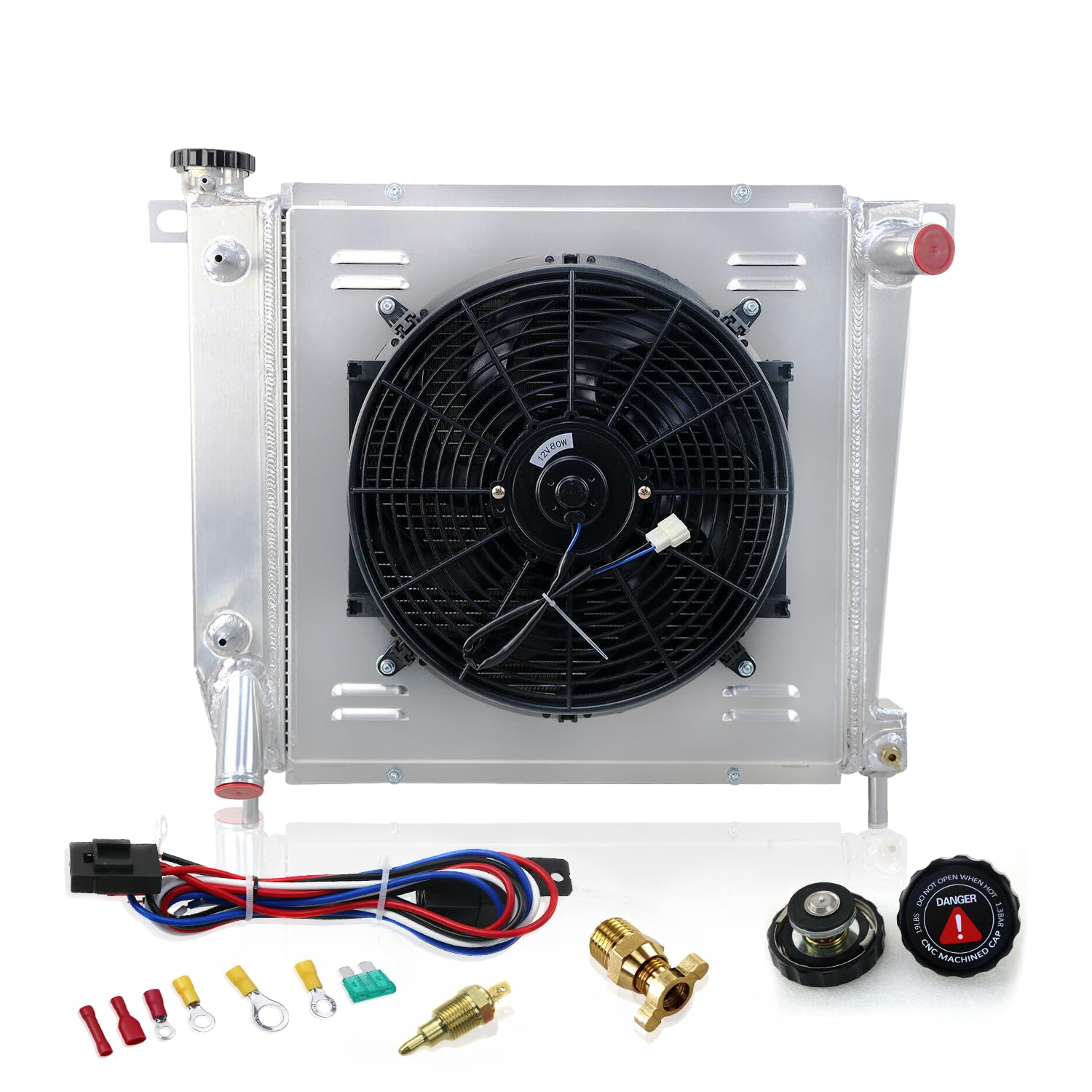

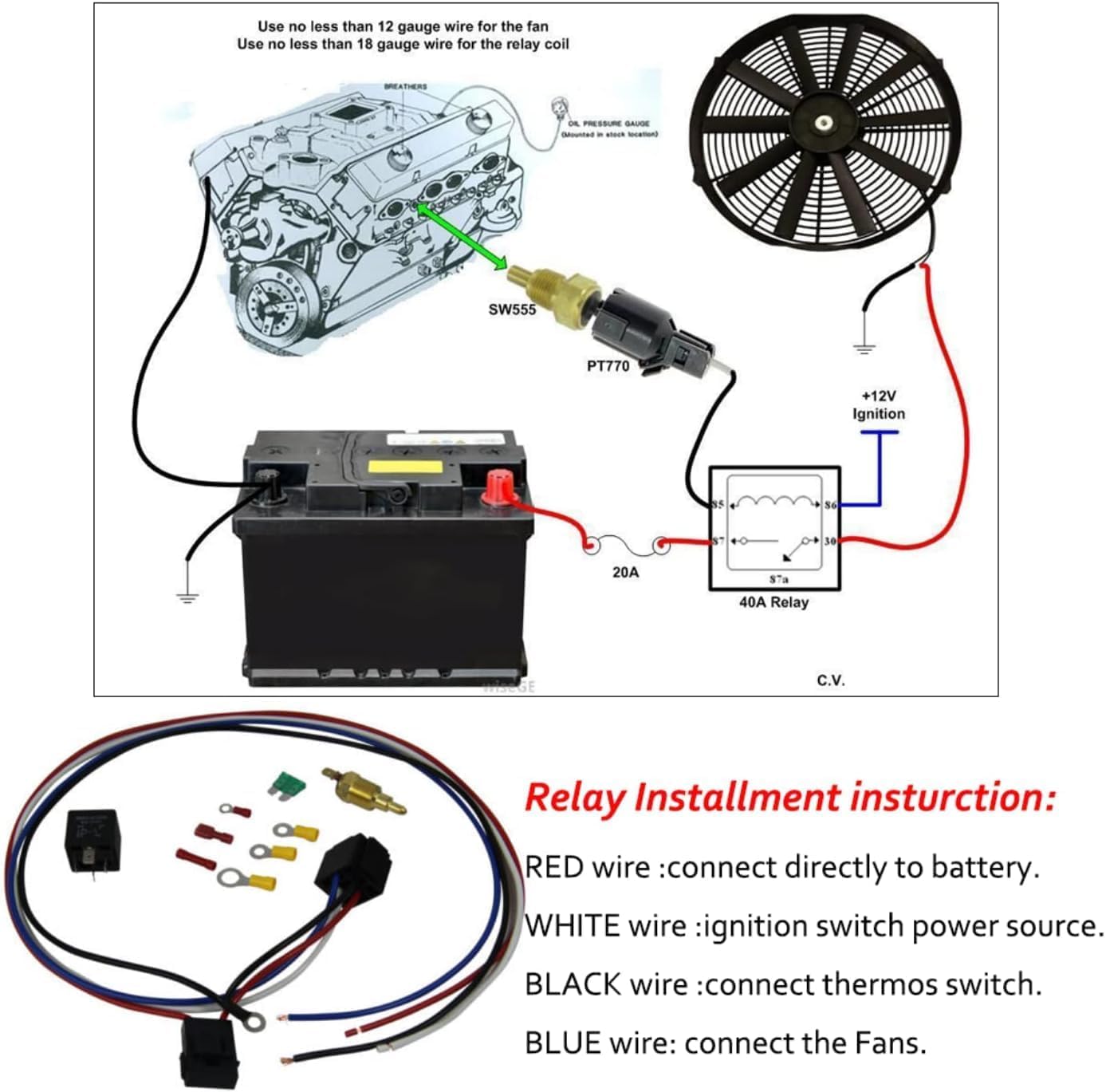

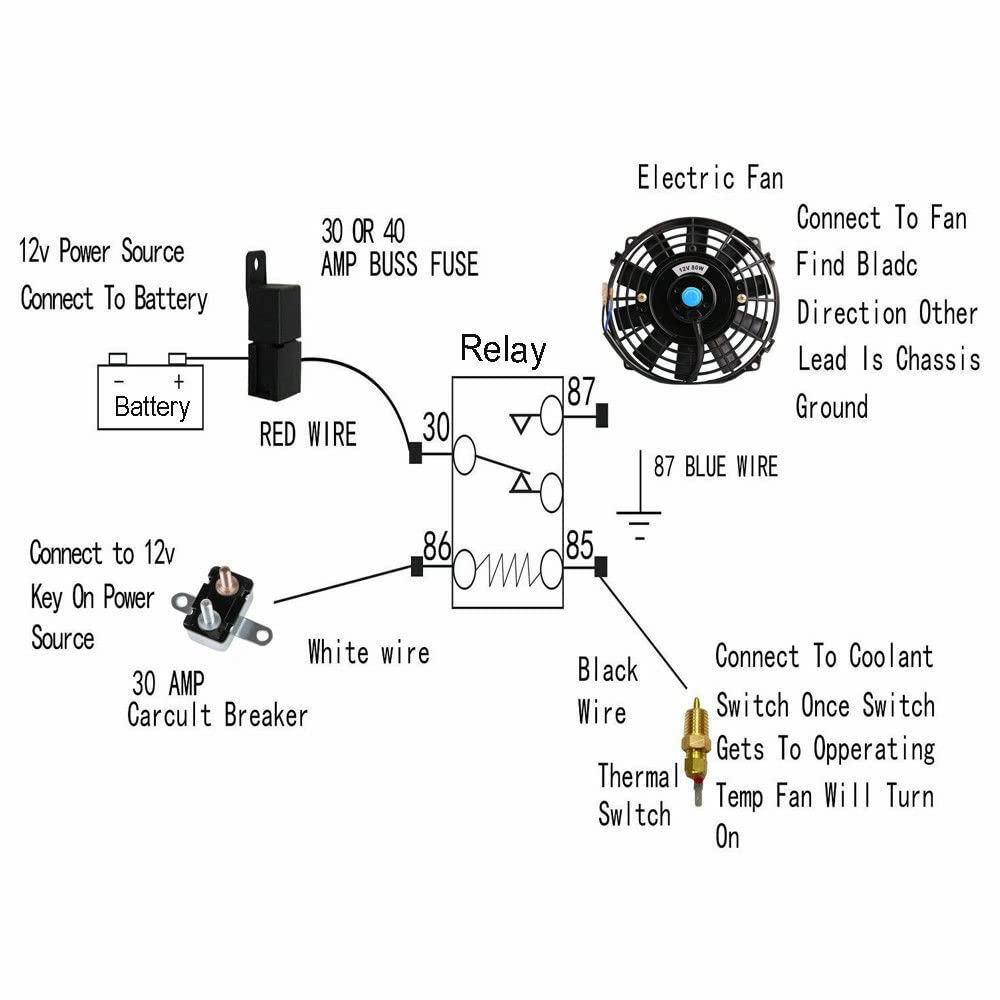

Product Includes: 1 X 3-Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 1 X 14inch Fans (Includes mounting kits) 1 X Thermostat Relay Kits Radiator Specs: Inlet Location Diameter: located on the Passenger side Outlet Location Diameter: located on the Driver side Core Material: Full Aluminum Tank Material: AA5052 Aircraft Grade Aluminum Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: Included Engine Oil Cooler: No Flow Type: Crossflow Delivery: Local Delivery 100% welded by TIG, no epoxy Fitment Type: Direct Replacement Fan Details: Maximum Fan CFM: 2200±200 FAN Diameter(inch): 14.05 X 14.05 X 2.5 Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator OEM/Substitute Numbers: 1164, CC1164, CU1164, DPI1164,MC1164,FO3010163,FOTZ8005EA This Radiator Compatible with: Replacement radiator for Ford Explorer 4.0L V6 1991-1994 Replacement radiator for Ford Ranger 2.8L 2.9L 3.0L 4.0L V6 1985-1994 Replacement radiator for 1991-1994 Ford Bronco II 2.8L 2.9L V6 radiator Replacement for B4000 4.0L V6 1994 radiator Replacement for Navajo 4.0L V6 1991-1994 PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features

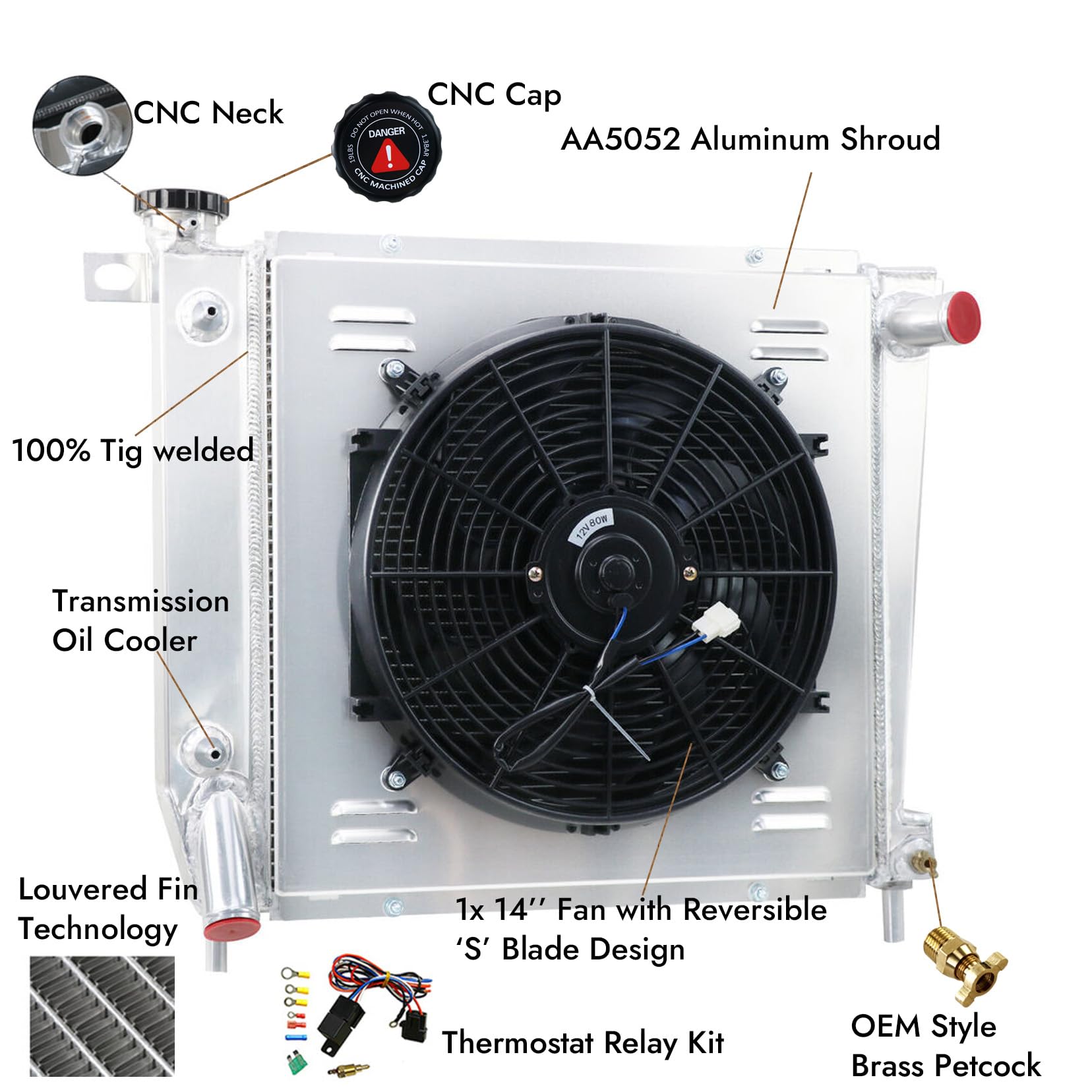

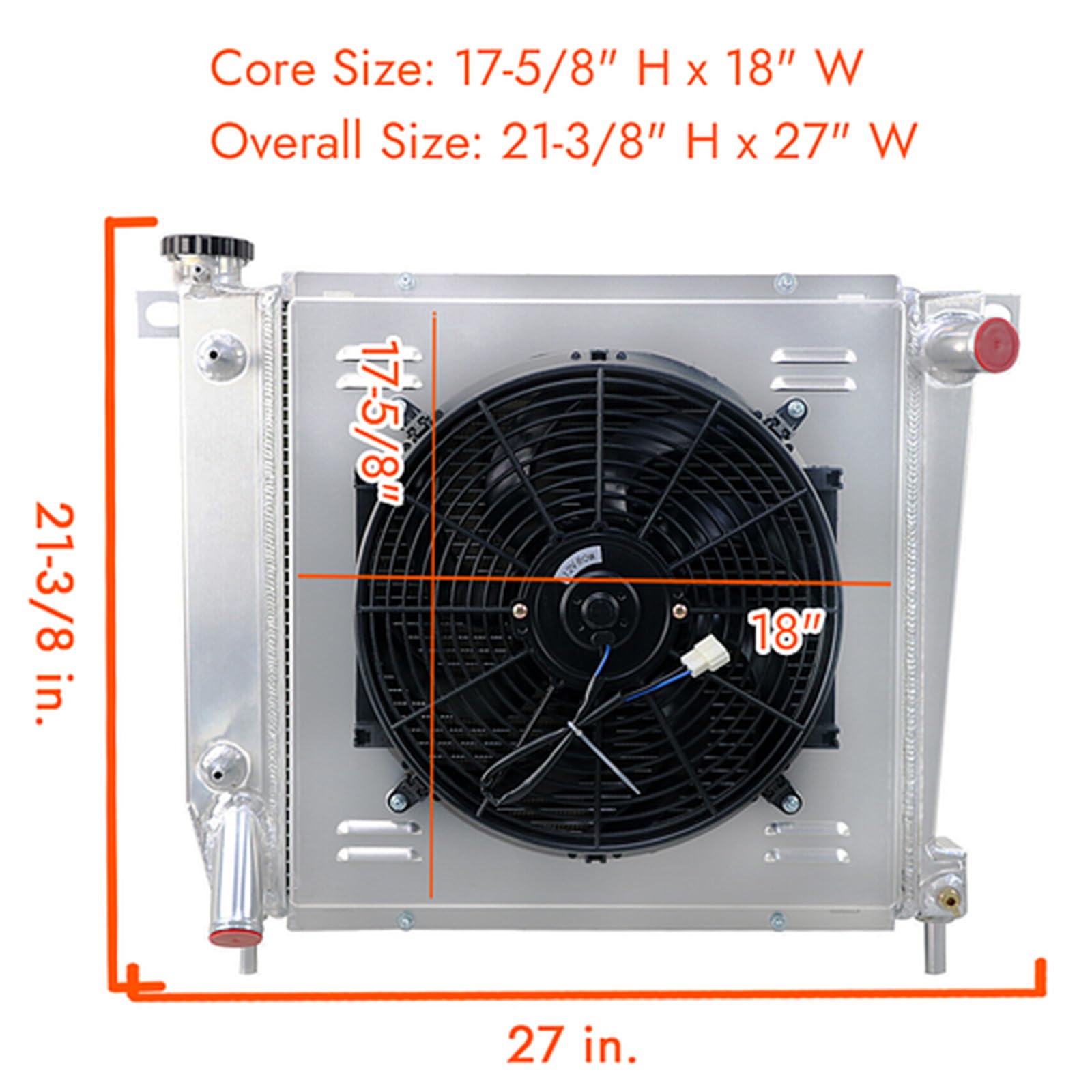

Core Size(inch) 18'' H x 17.65'' W x 1.74'' T / Overall Size(inch) 27'' L x 21.85'' W x 6.3'' H / Rows 3

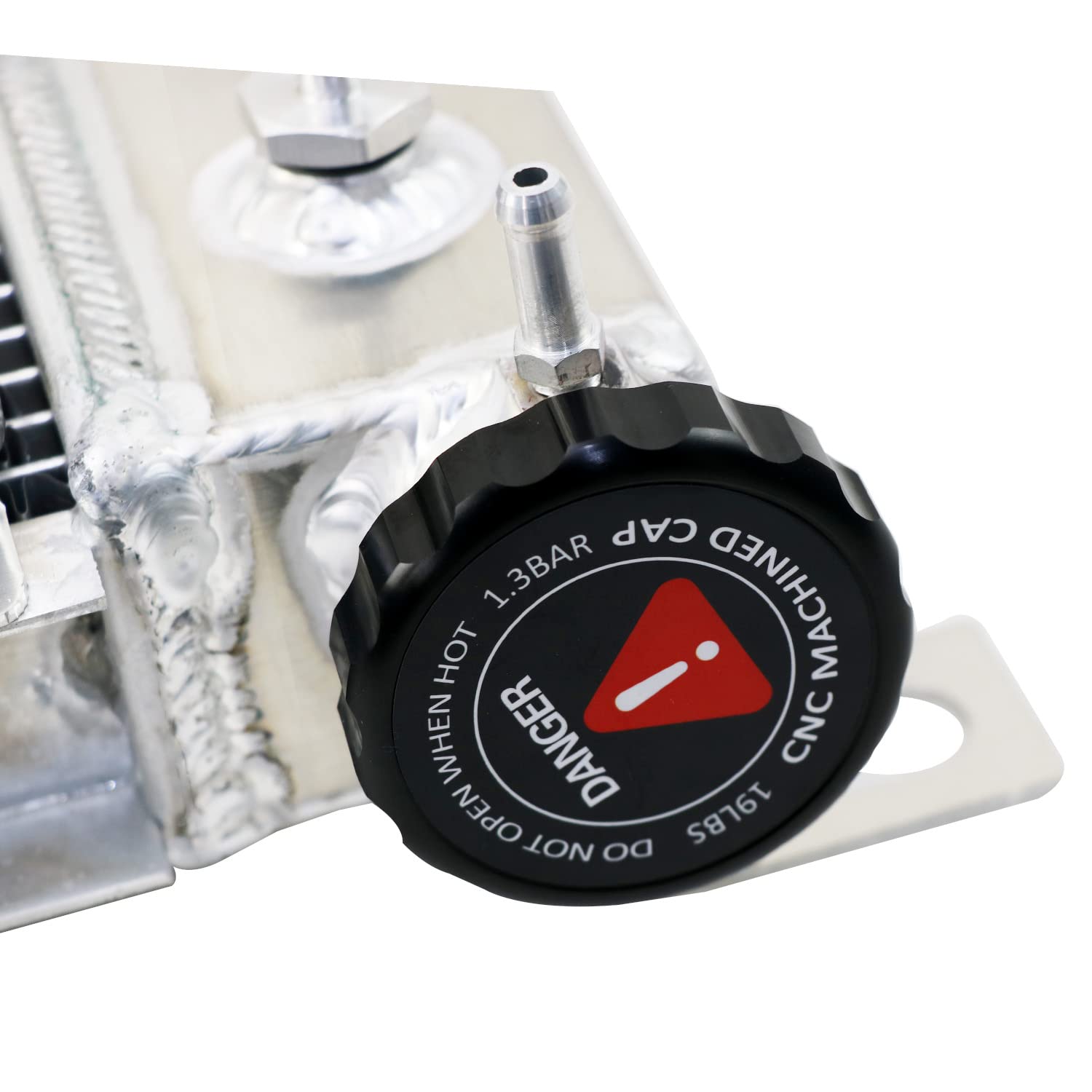

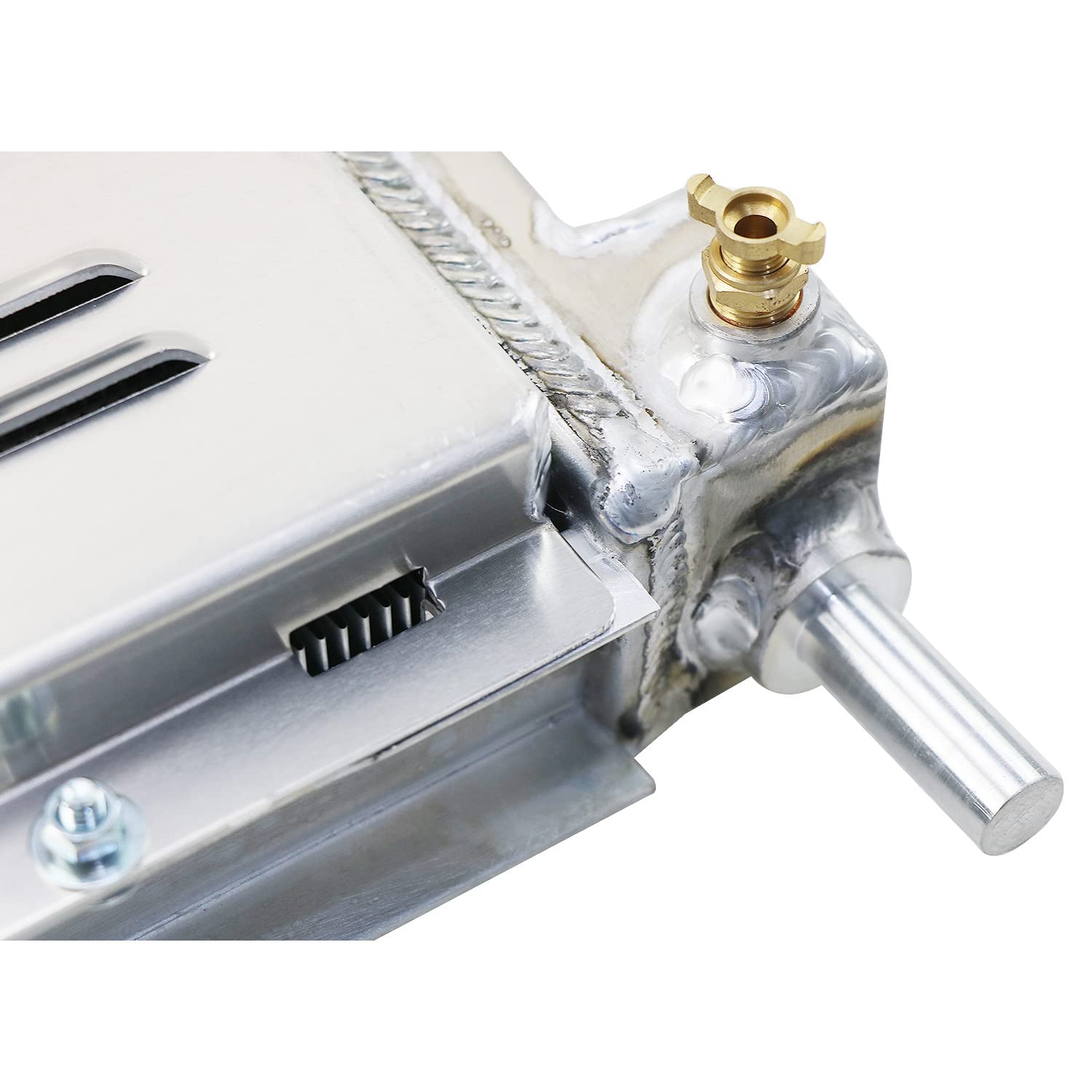

Inlet(inch) 1.5 located on the Passenger side / Outlet(inch) 1.5 located on the Driver side / CNC Precision Machined Radiator Cap / OEM Style Brass Petcock Drain
Build-in Transmission Oil Cooler 305*3/8-18NPT(P) / OE# 1164, CC1164, CU1164, DPI1164, MC1164
Vehicle test-fitted prior to market release, ensuring perfect drop-in fit

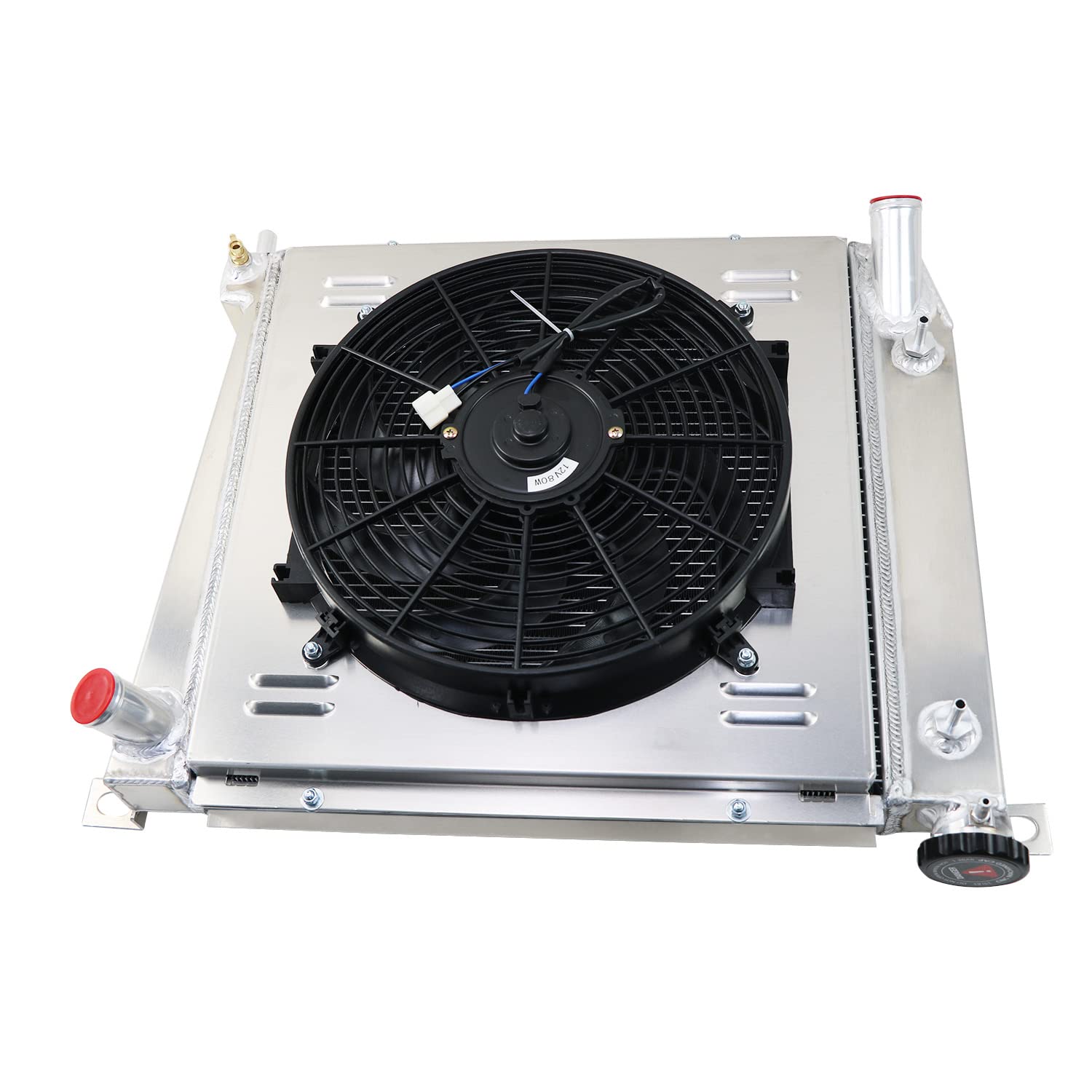

Shroud fan provides protection and extra heat heat dissipation for the radiator

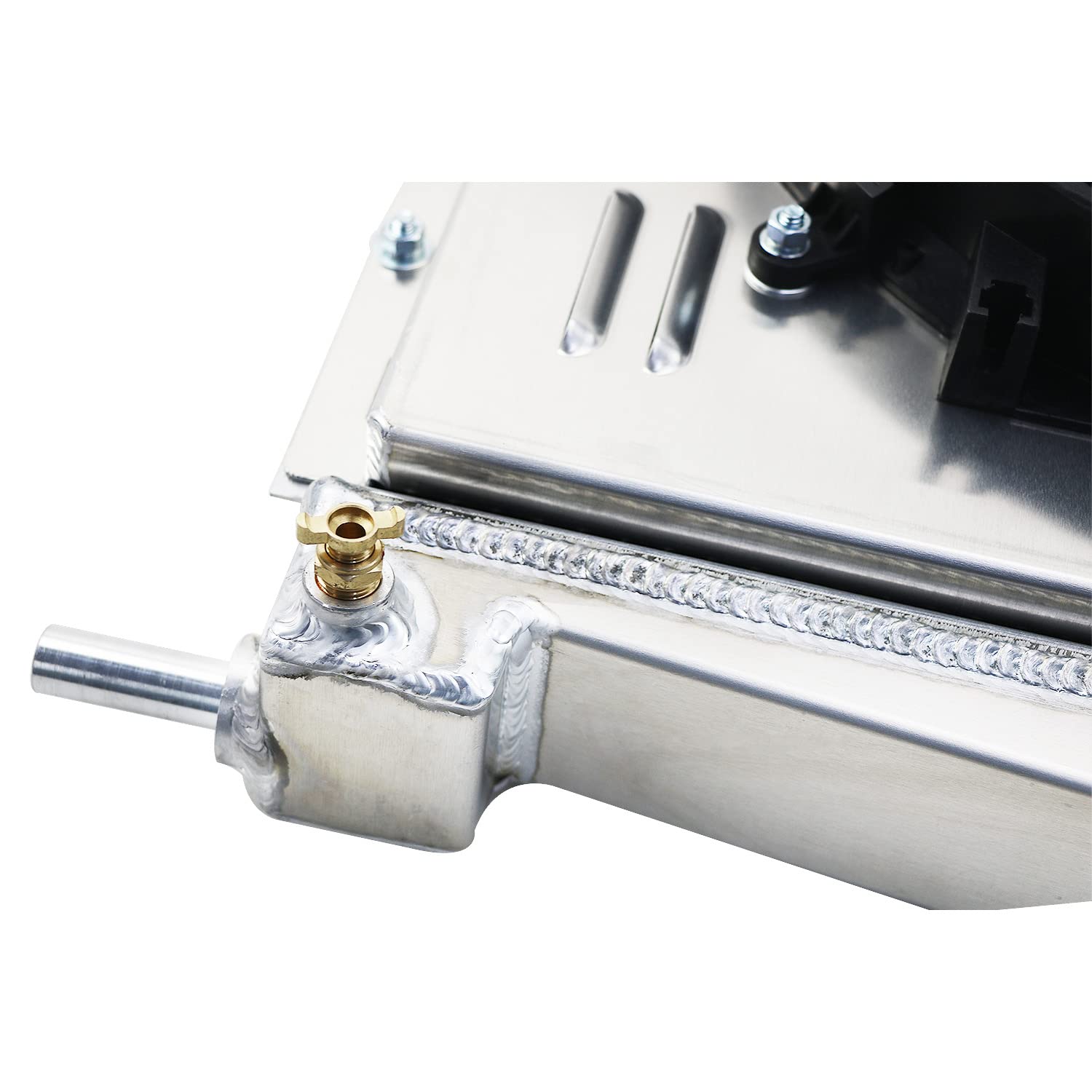

Full Aircraft 5052 aluminum construction with durable, TIG-welded end tanks
