4 Row Aluminum Radiator for 1917-1928 Ford Model T & Chevy V8 Engine - Universal Fit 17-28 Models - All Aluminum Construction with 16" Fan Shroud & Relay - Perfect for Classic Car Restoration & Hot Rod Upgrades

Product Description

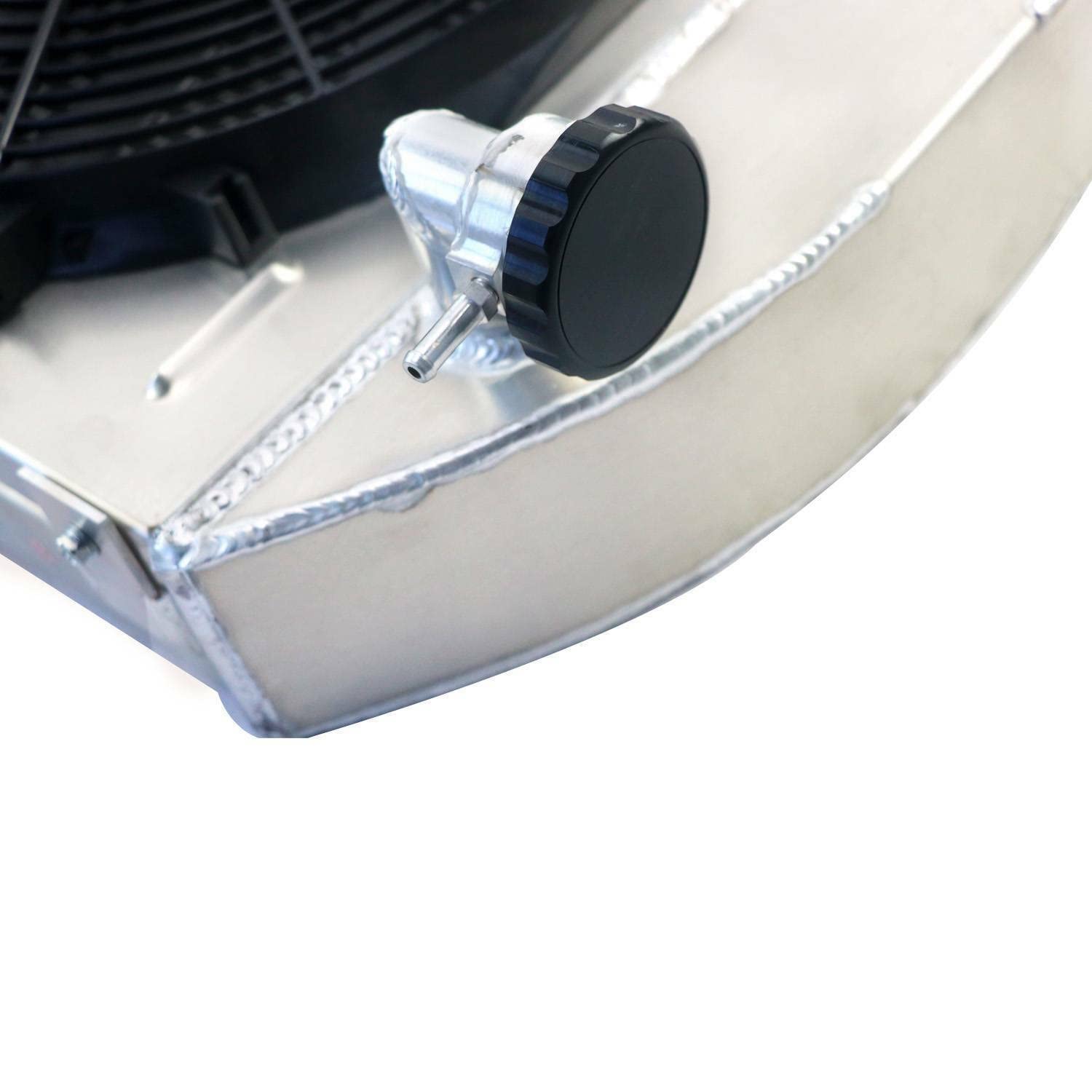

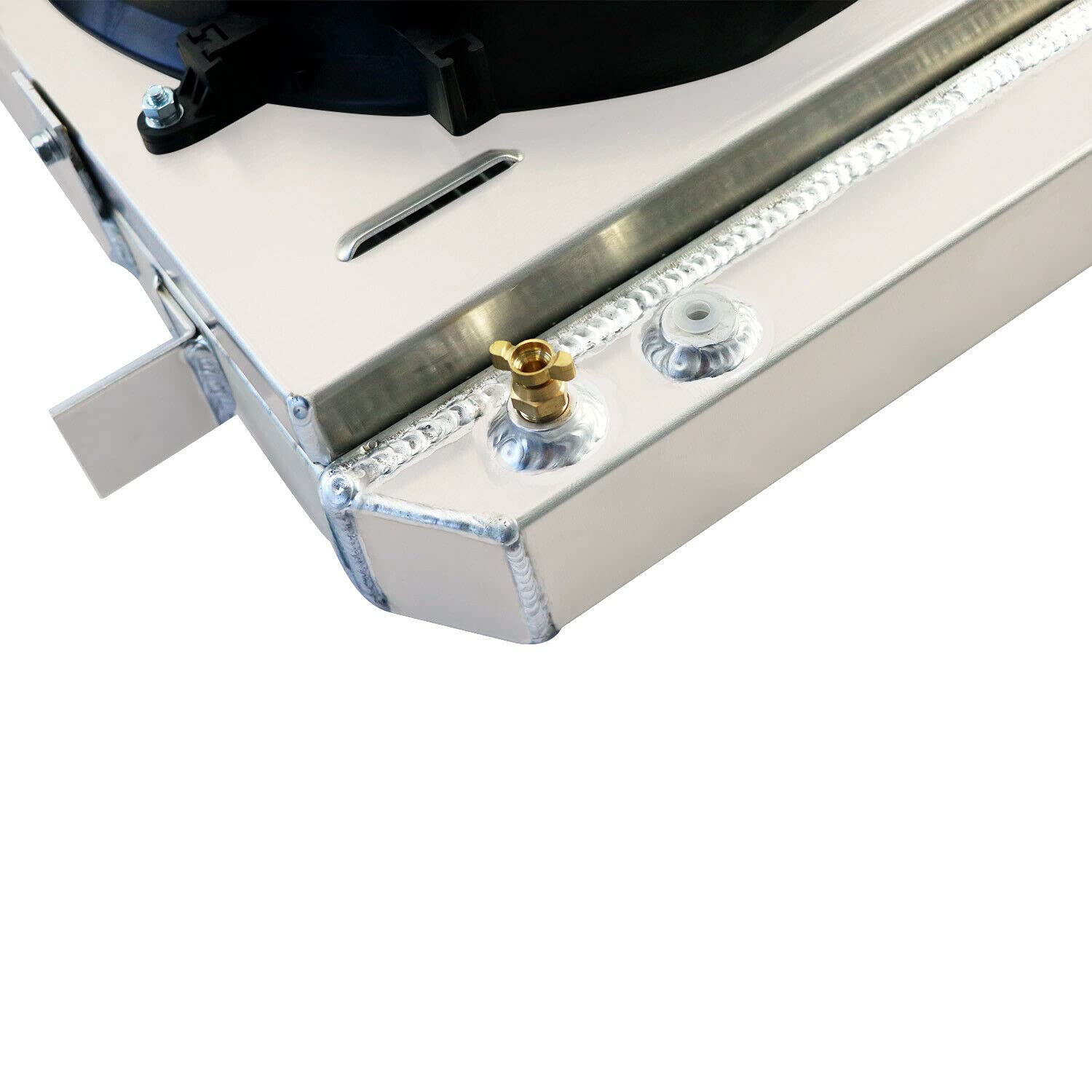

Vehicle Fitment For 1917-1927 Ford Model T-Bucket with Chevy Configuration Engine 4 Core Radiator Size High Performance Racing Spec. 4-Row of tubes Core Racing Design Tank Material: AA5052 Aircraft Grade Aluminum Core Dimensions: 18" (H) x 18-1/2" (W) Overall Dimensions: 24" (H) x 22-1/2" (W) Inlet Location：1-1/2" On Driver Side Outlet Location： 1-3/4" On Passenger Side Transmission Cooler: 1/8-27NPT All TIG WELDED, NO EPOXY Radiator Cap:CNC Precision Machined Radiator Cap Radiator Drain Plug:OEM Style Brass Petcock Drain. Fan Specification: Diameter : 16'' (Blade to Blade) Voltage: DC 12 Volts Wattage: 120W Number of Blades: 10 S-Type blades Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10% Amp Draw: 10amp Fan Thickness: 3.27" S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect Powerful 120 watt motor will keep your engine cool. ASCIUTTA Radiator, Your Best Choice 1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water). 2.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators. 3. AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. 4. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased.
