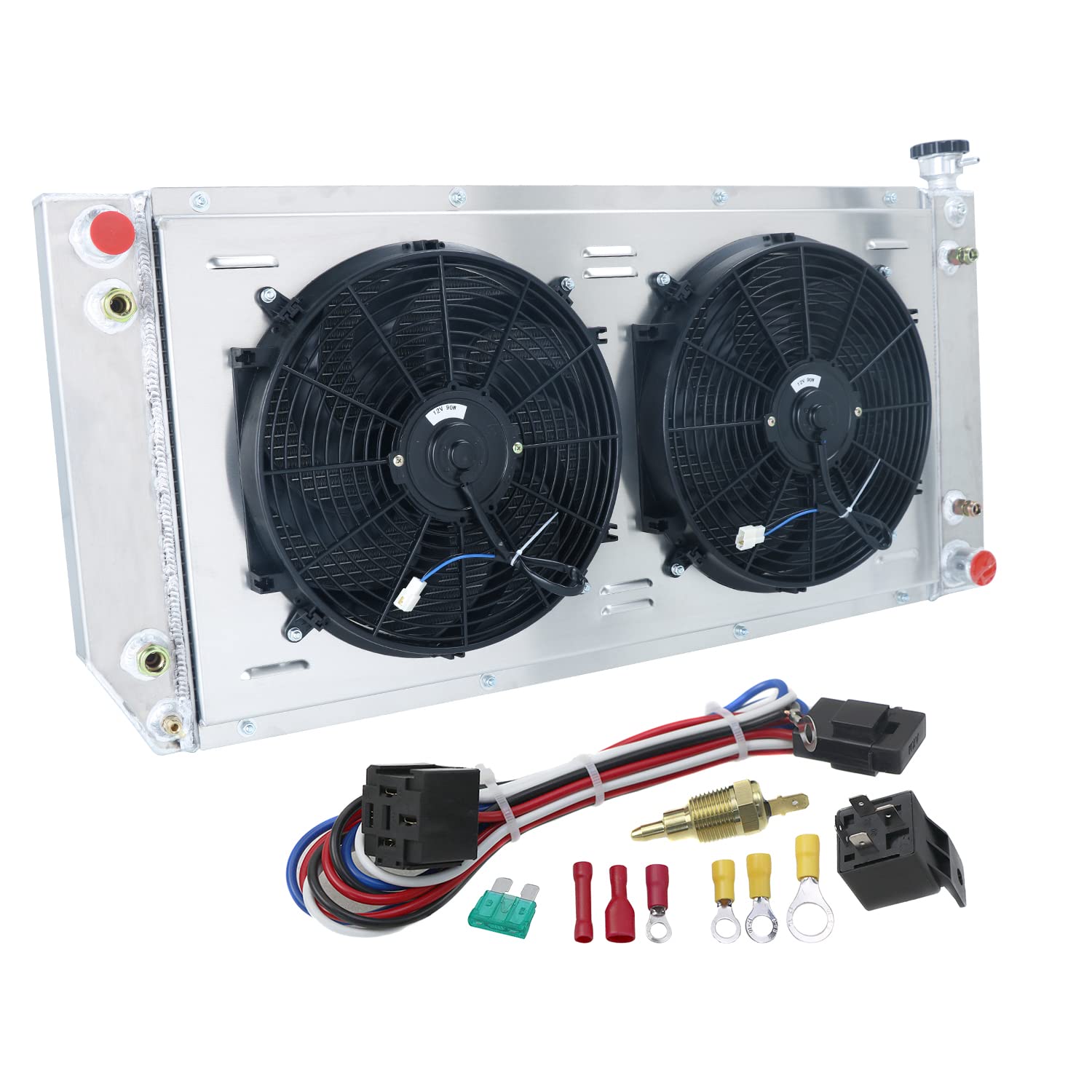

High-Performance 3-Row Aluminum Radiator for 1992-2004 Chevy GMC C1500 C2500 C3500 K1500 K2500 K3500 Suburban Tahoe Yukon 5.0L 5.7L 7.4L V8 - Complete Cooling Kit with Fan Shroud & Relay - Perfect for Towing, Off-Roading & Extreme Weather Conditions
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:13 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:52537150
Product Description
This Radiator Compatible with: Cadillac Escalade 5.7L V8 GAS, 1999-2000 Chevy Blazer 5.7L V8 GAS, 1994 Chevy C1500/C2500/K1500 5.0L V8 GAS, 1996-1999 Chevy C1500/K1500 5.7L V8 GAS, 1994-1999 Chevy C1500/C2500/K1500/k2500 Suburban 5.7L V8 GAS, 1996-1999 Chevy C2500 5.7L V8 CNG, 1996-2000 Chevy C2500/C3500/K2500/K3500 5.7L V8 GAS, 1994-2000 Chevy C35 5.7L V8 GAS, 1995-2000 Chevy C3500 5.7L V8 CNG, 1997-1999 Chevy C3500HD 5.7L/7.4L V8 GAS, 1992-1994 Chevy K2500 5.0L V8 GAS, 1997-1998 Chevy K2500 5.7L V8 CNG, 1996 Chevy Silverado (Mexico) 5.7L V8 GAS, 1995-1999 Chevy Silverado 2500 5.7L V8 GAS, 2002-2002 Chevy Silverado 3500 5.7L V8 GAS, 2001-2004 Chevy Sonora (Mexico) 5.7L V8 GAS, 2000-2002 Chevy Suburban 1500 5.7L V8 GAS, 1995-2002 Chevy Tahoe 5.7L V8 GAS, 1995-2000 GMC C1500/K1500 5.0L V8 GAS, 1996-1999 GMC C1500/K1500 5.7L V8 GAS, 1994-1999 GMC C1500/C2500/K1500/k2500 Suburban 5.7L V8 GAS, 1996-1999 GMC C2500 5.0L V8 GAS, 1996-1998 GMC C2500 5.7L V8 CNG, 1996-2000 GMC C2500/C3500/K2500/K3500/Yukon 5.7L V8 GAS, 1994-2000 GMC C3500 5.7L V8 CNG, 1997-1999 GMC C3500HD 5.7L/7.4L V8 GAS, 1992-1994 GMC K2500 5.0L V8 GAS, 1998 GMC K2500 5.7L V8 CNG, 1996 PLS double check OEM radiator core/overall size & inlet/outlet location before ordering. PLS use AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. OEM #: 1520, 1693, CU1693 14'' FAN Spec: Maximum Fan CFM: 2200±200 Fan Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 S-Type blades Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: * Activates by grounding electric fans at preset temperature. * 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!
Product Features
Core Size 33.9'' x 16.9'' x 1.73'' ; Overal Size 40.8'' x 20.2'' x 5.9'' ; 3 row core

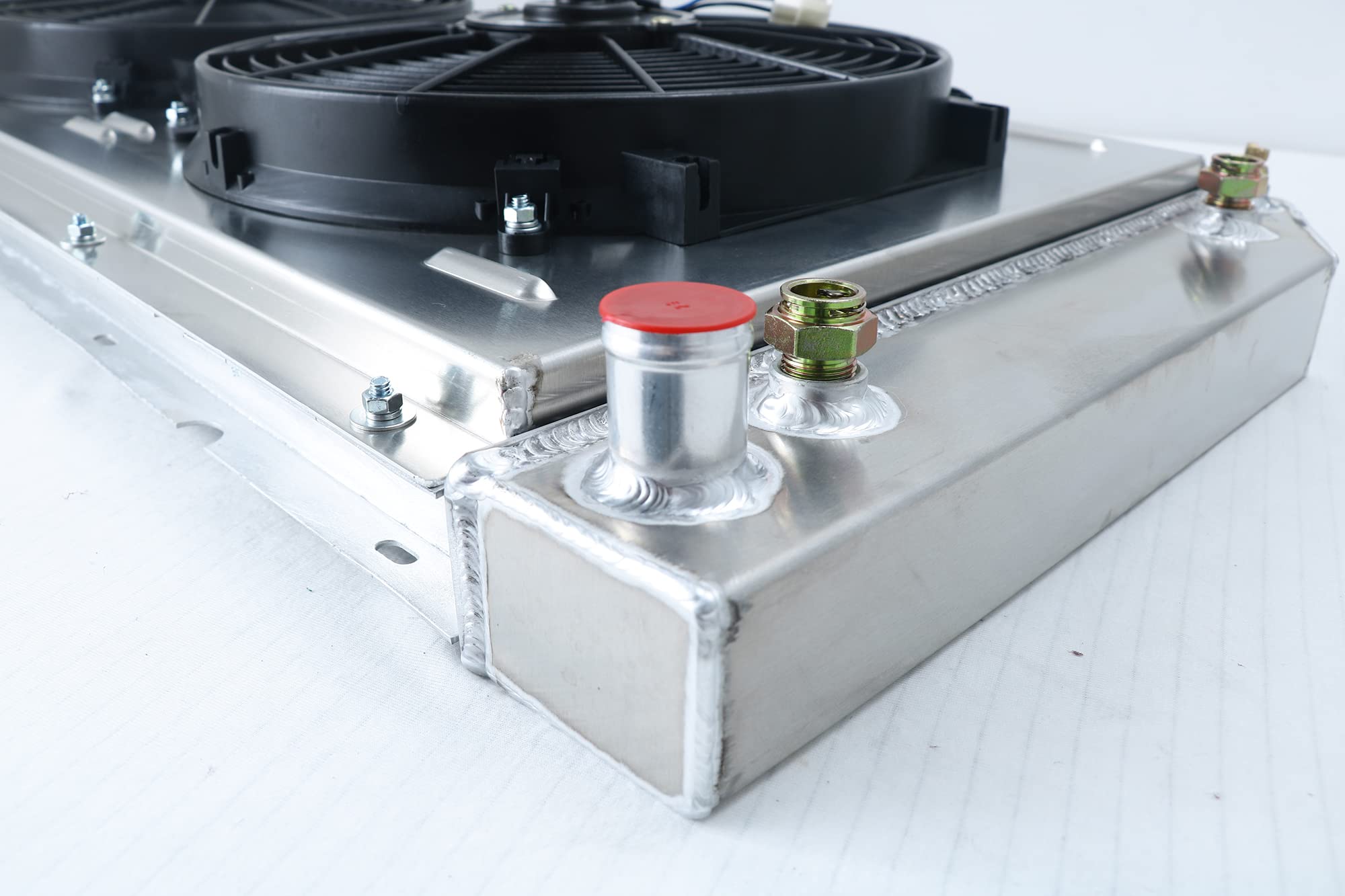

Inlet 1 5/16 inch at driver side ; Outlet 1 9/16 inch at passenger side

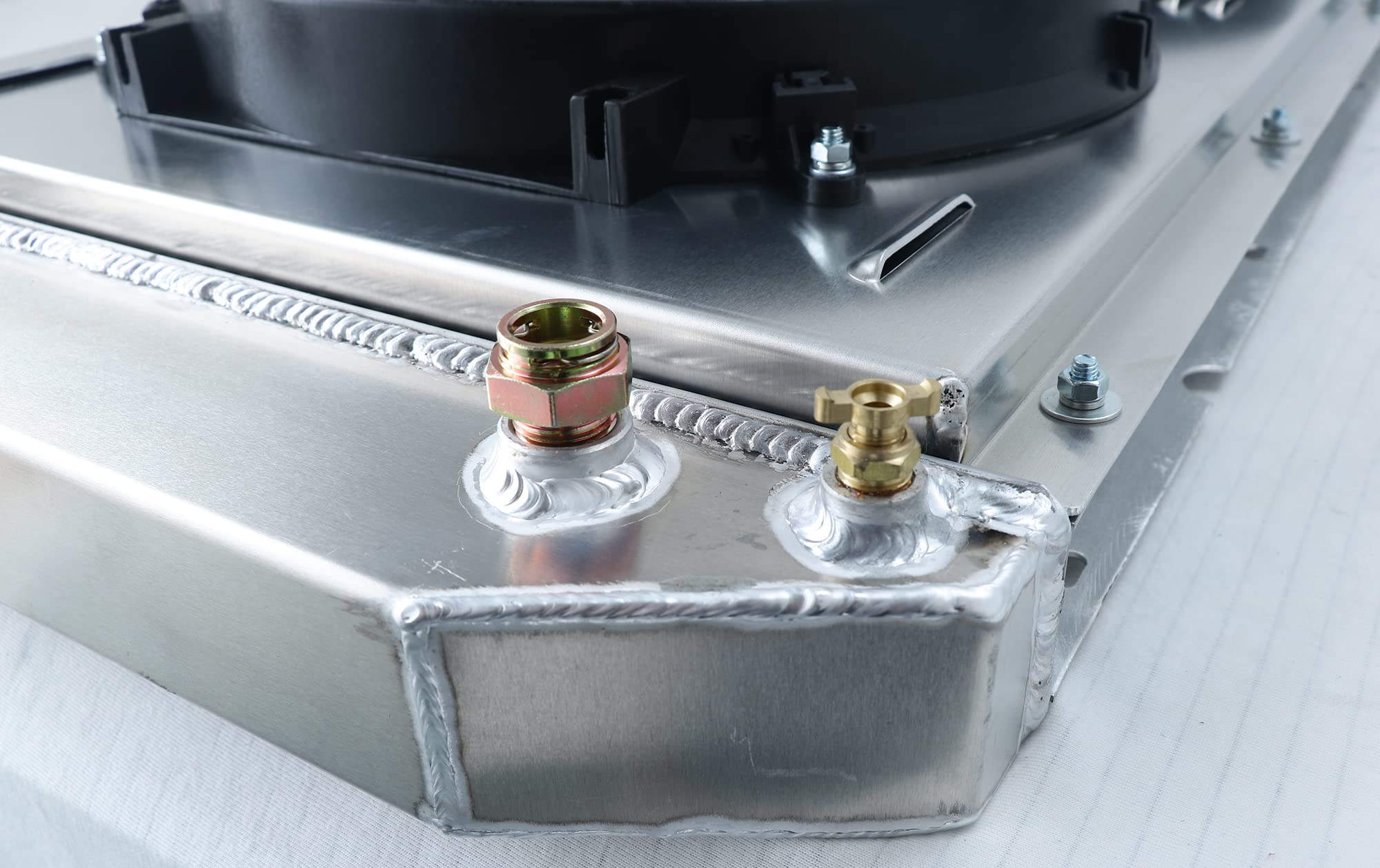

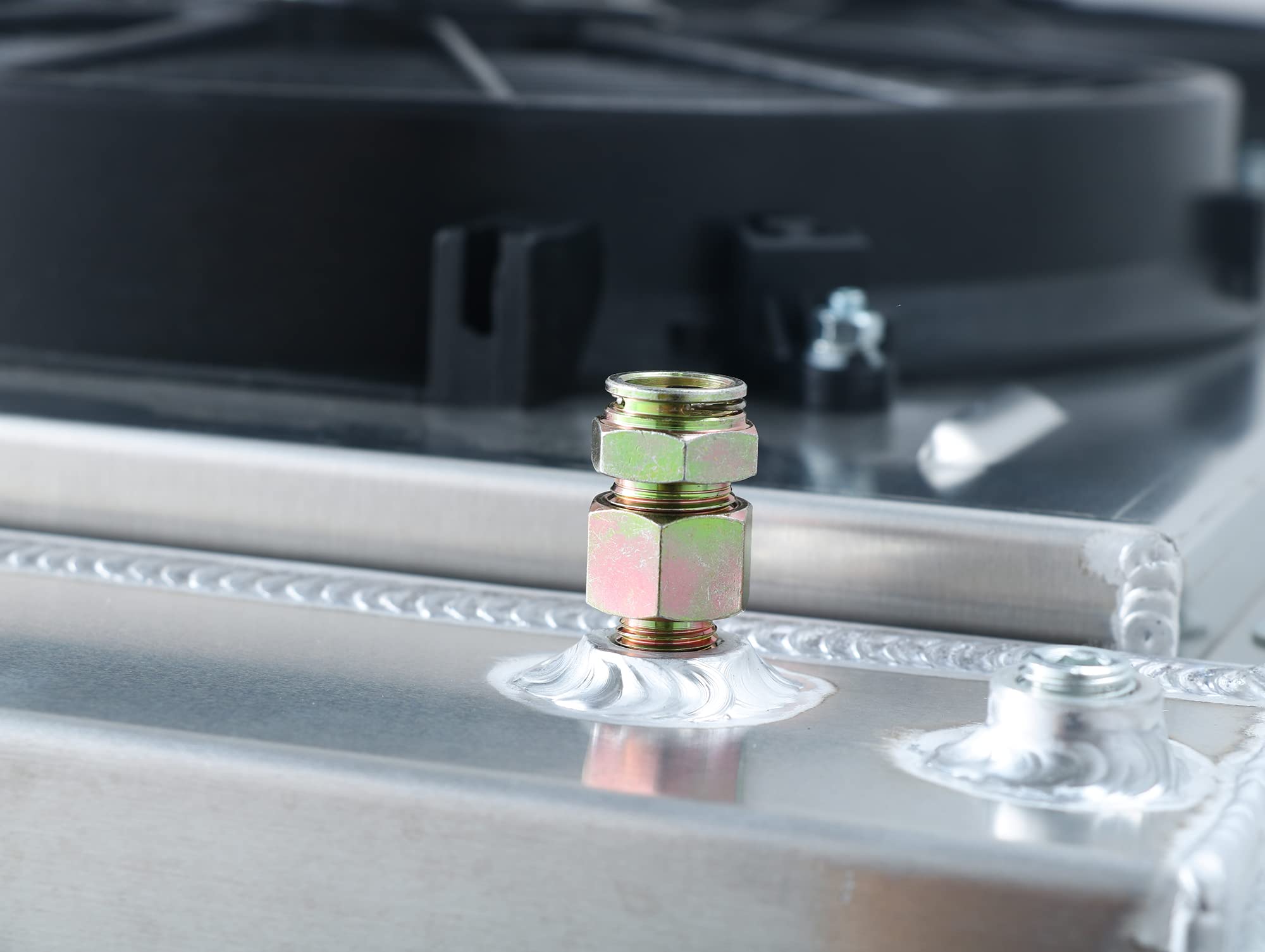

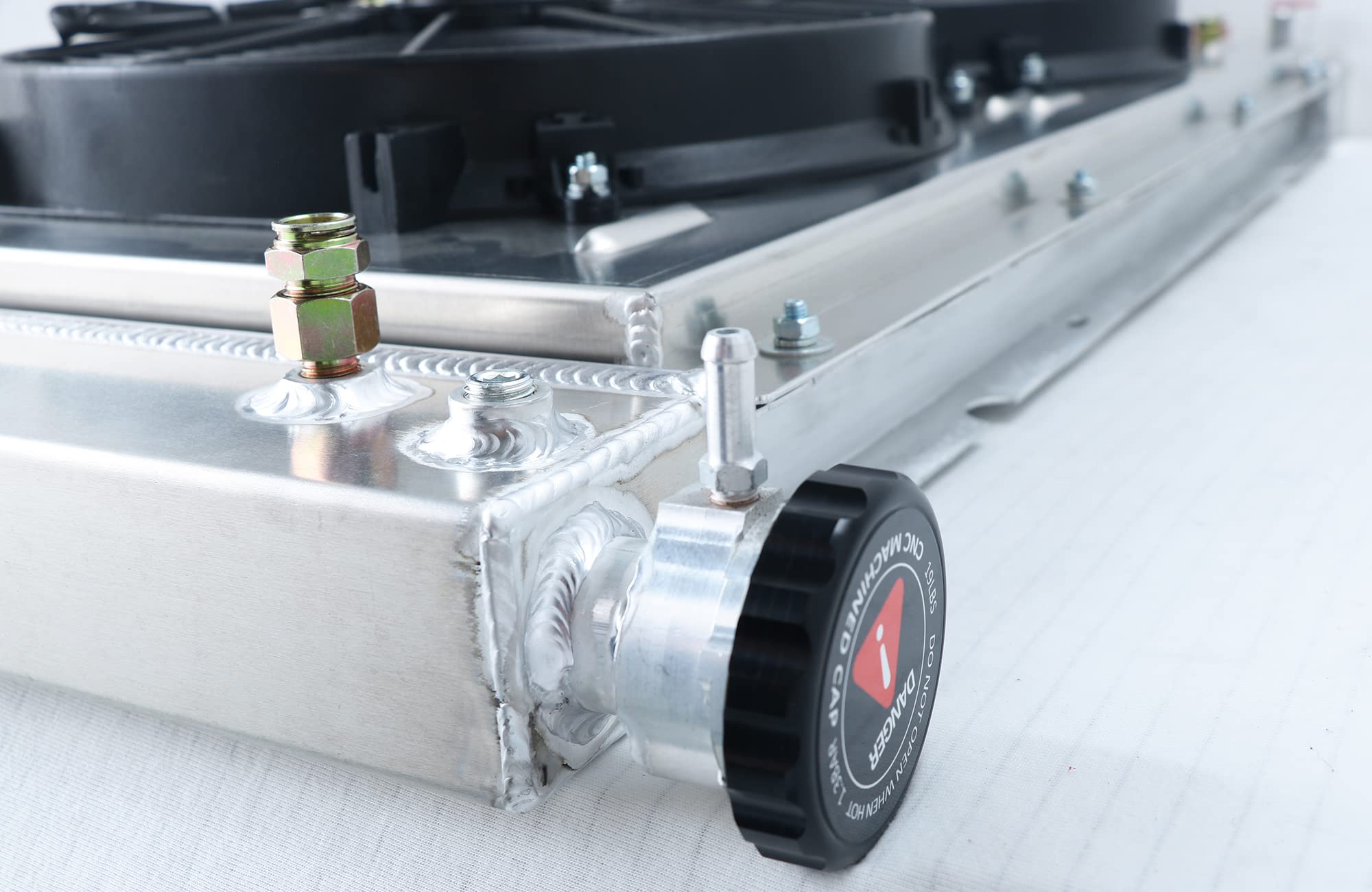

Transmission Cooler 1/2-20UNF ; Engine Oil Cooler M20*1.5
Direct fit for most applications, simple modification maybe required for several applications
Buy with no worry-12 months warranty
All radiators100% leak/durability tested
All aluminum construction provides greater heat and pressure tolerance, better heat dissipation

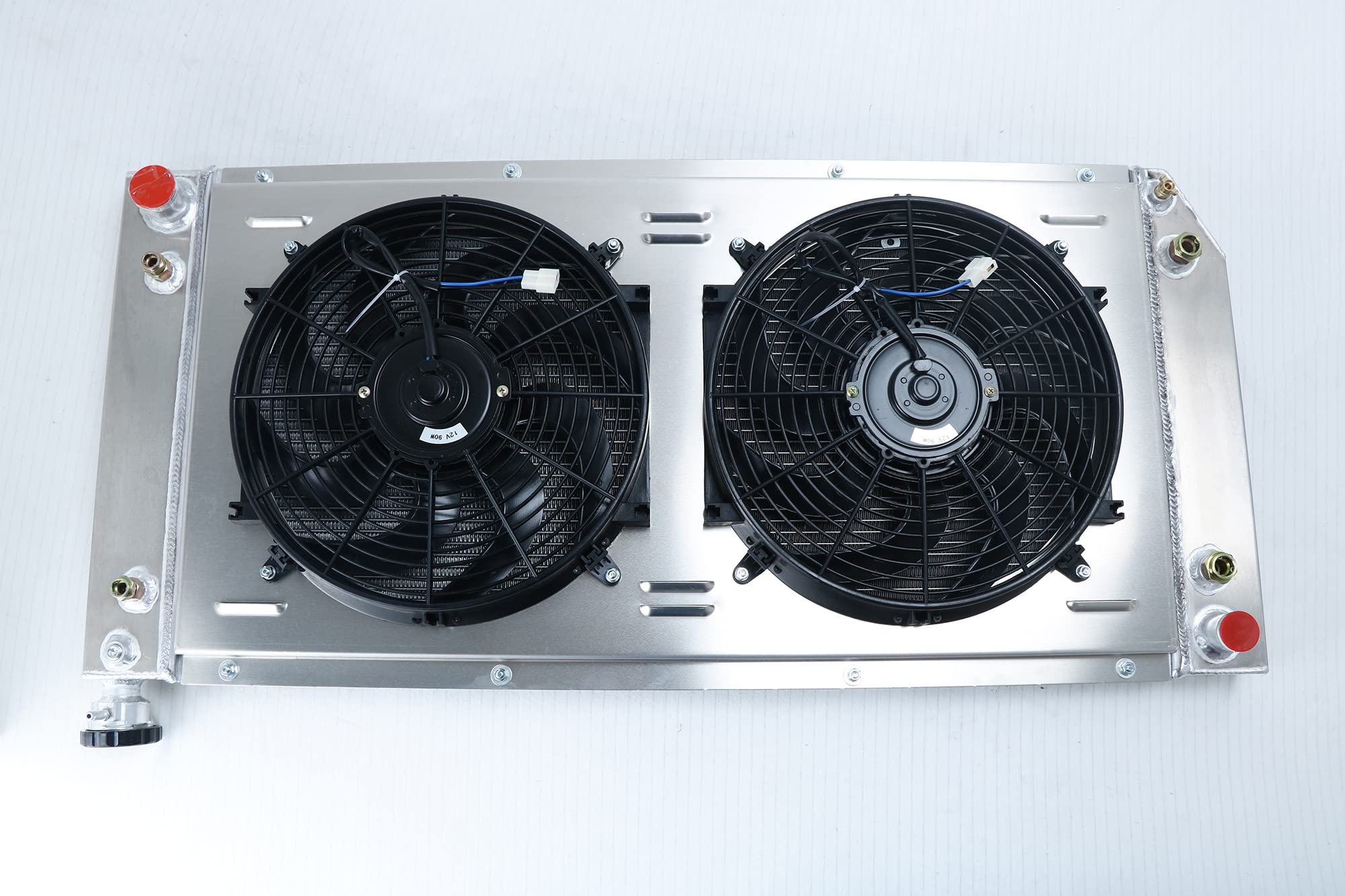

Shroud fan provides protection and extra heat dissipation for the radiator

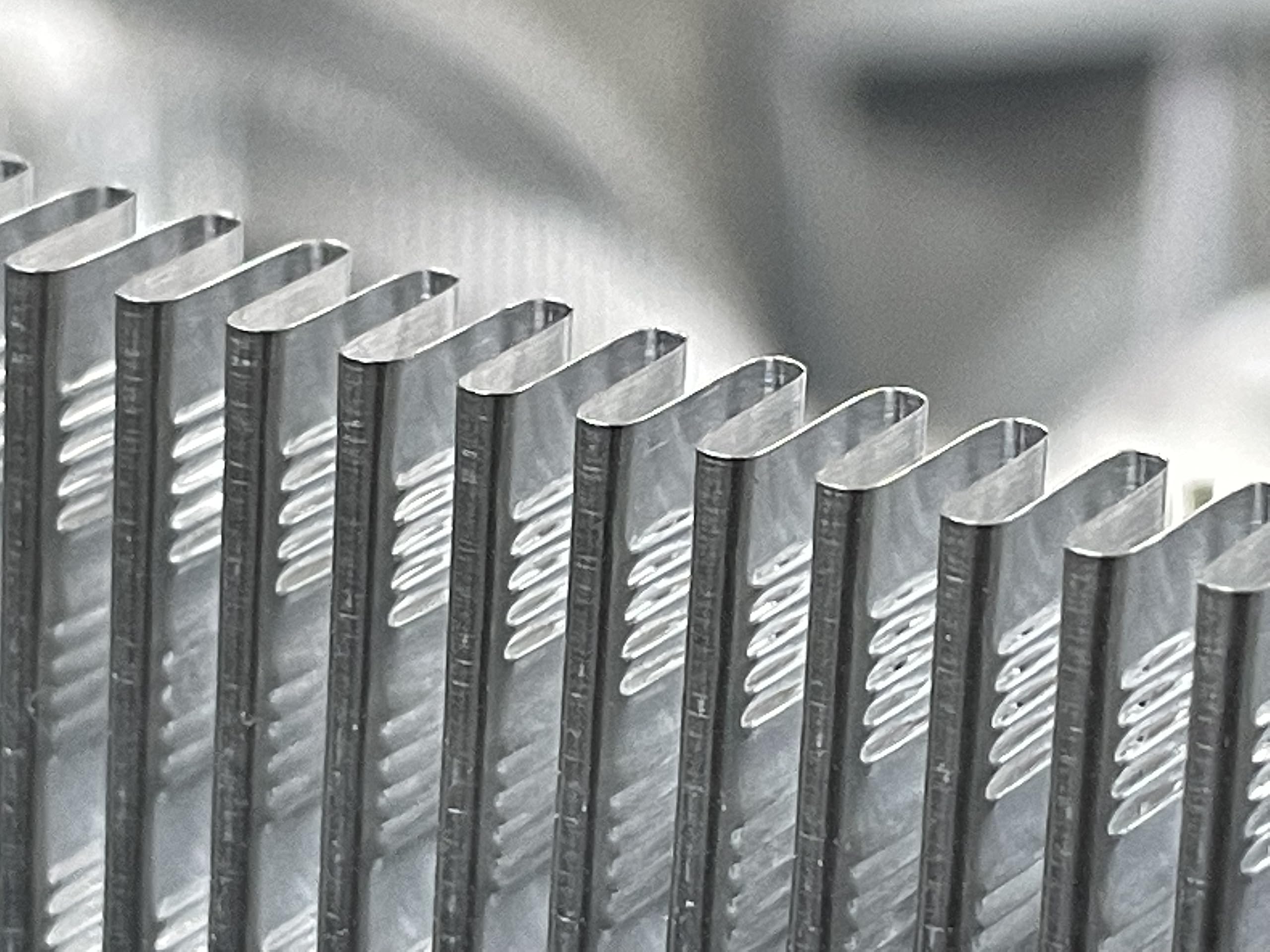

Aluminum brazed cores for minimal distortion
Customer Reviews

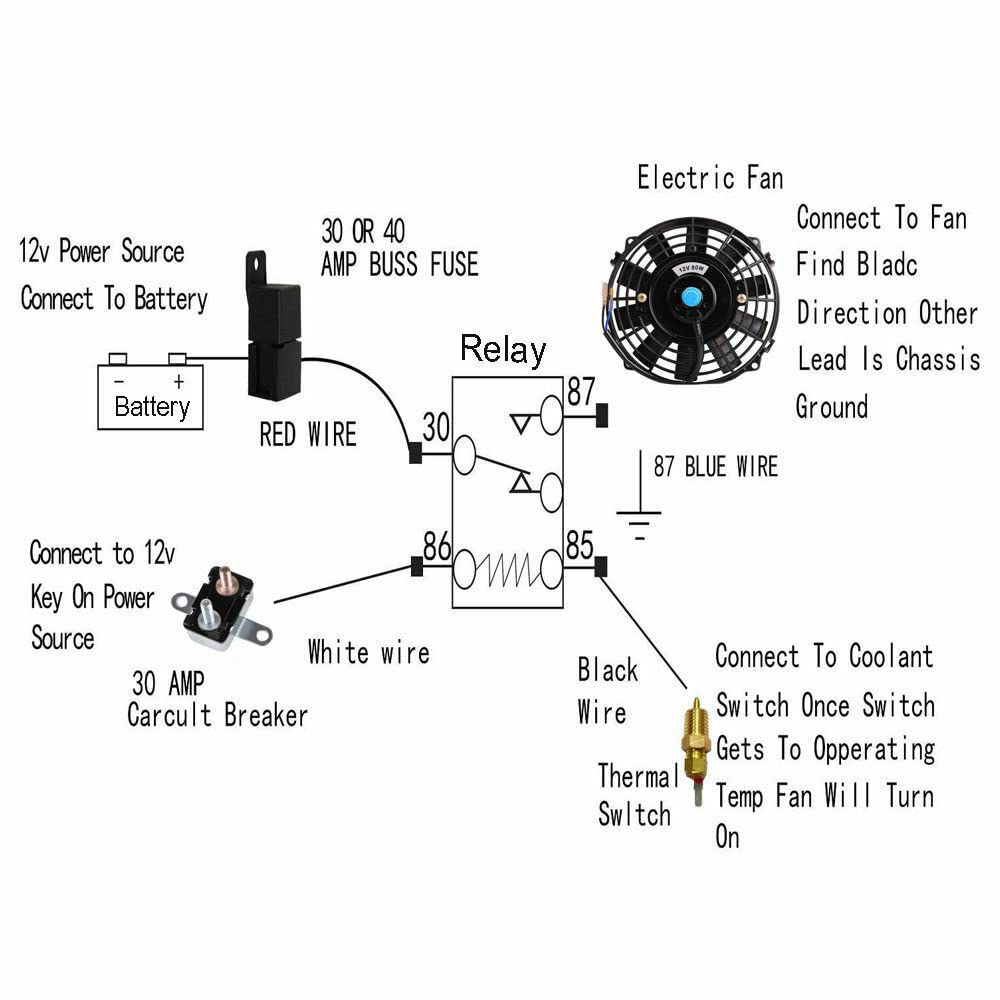

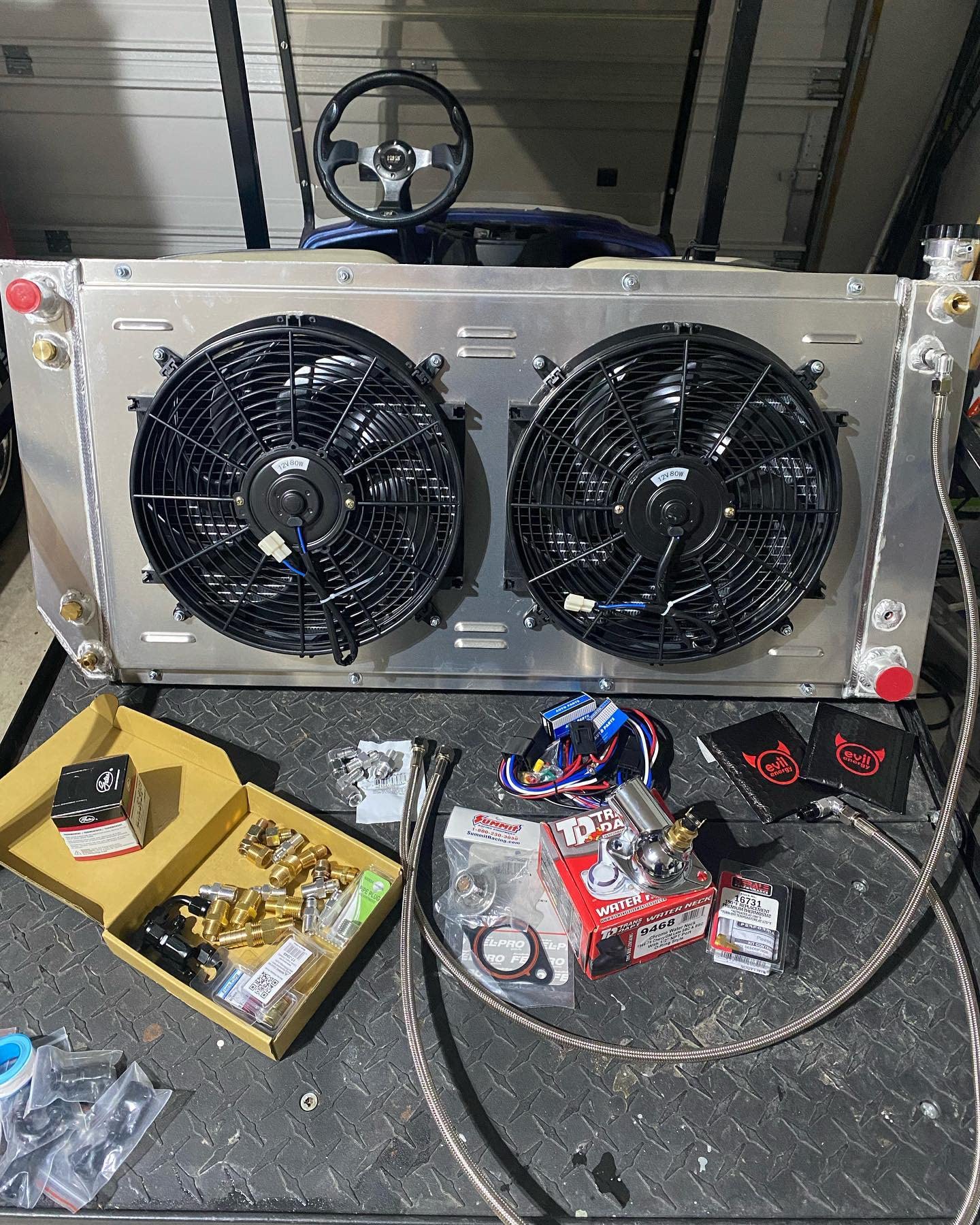

Just installed this in my 1994 Suburban. This radiator fit perfect, and I have had no leaks after two complete heat cycles. The fans are quiet and seem to work fine. There are no instructions, but if you have any mechanical skills, you don't need them. Relay RED to BATTERY, WHITE to IGNITION POWER, BLUE to the FANS, and the BLACK to the TEMP SENSOR. I am truly amazed at the quality for this price.
