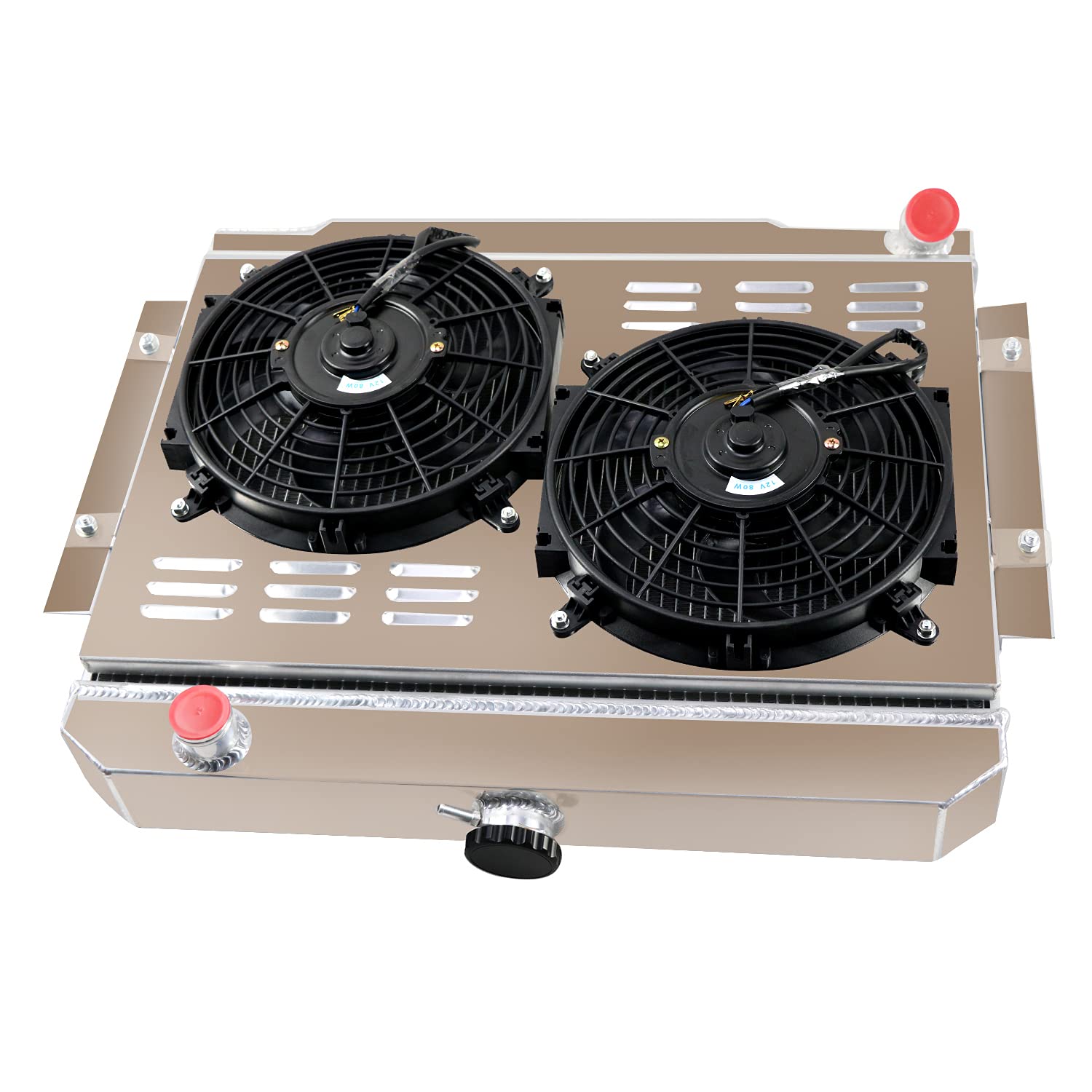

4 Row Aluminum Radiator Shroud with Fan Relay Kit for 1976-1986 Jeep CJ5 CJ6 CJ7 Scrambler 3.8L 4.2L 5.0L AT/MT - Perfect for Off-Roading, Overheating Prevention & Engine Cooling Upgrade

Product Description

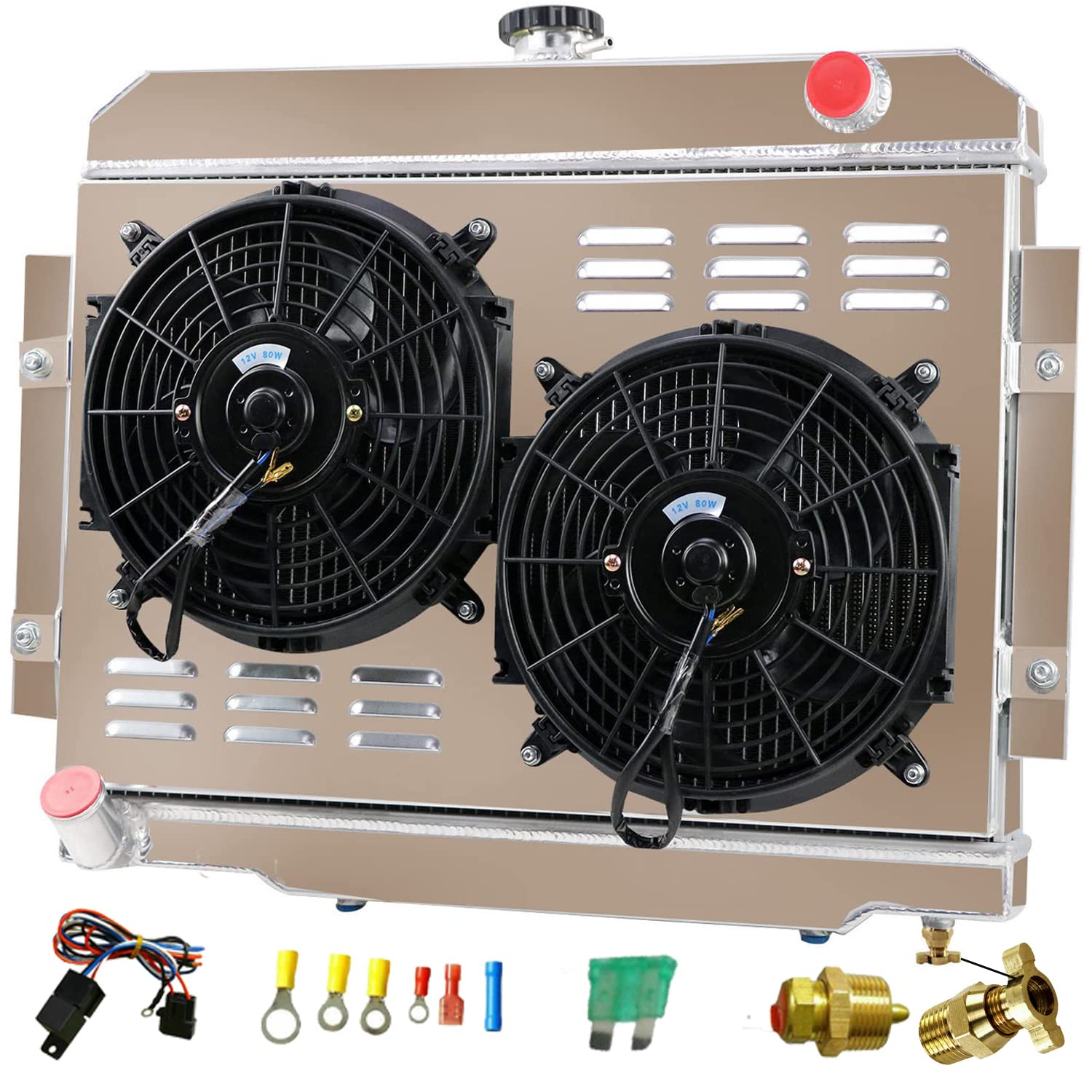

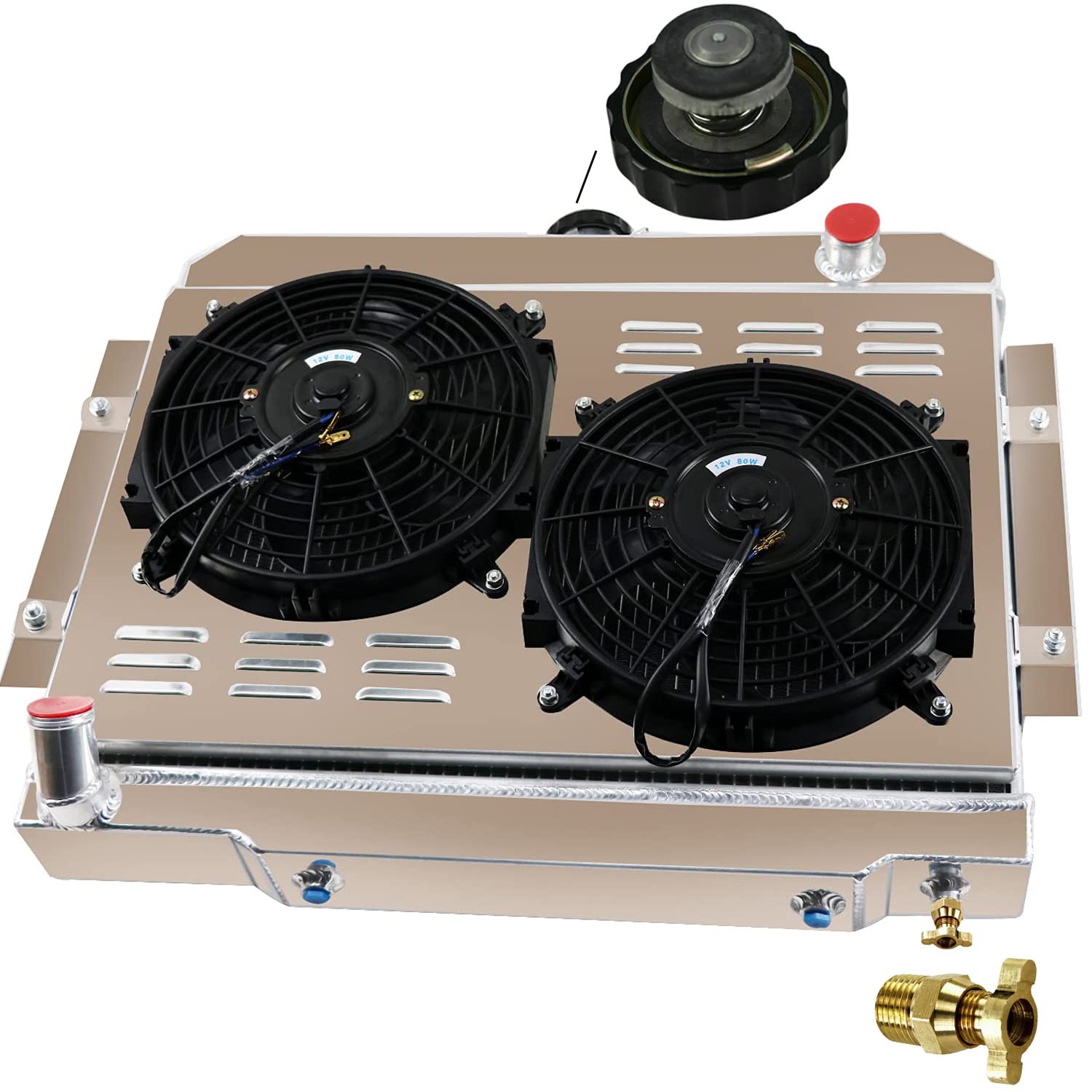

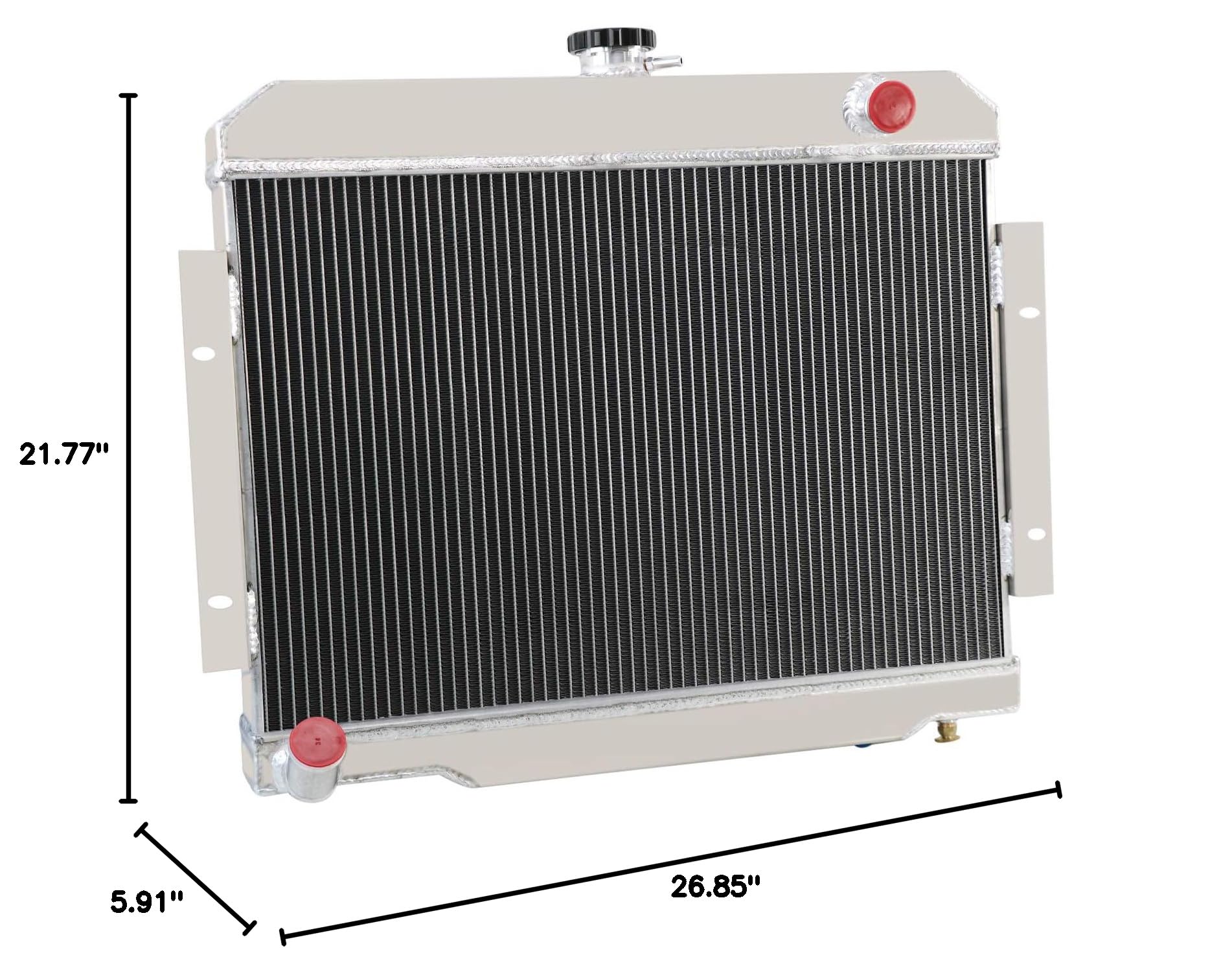

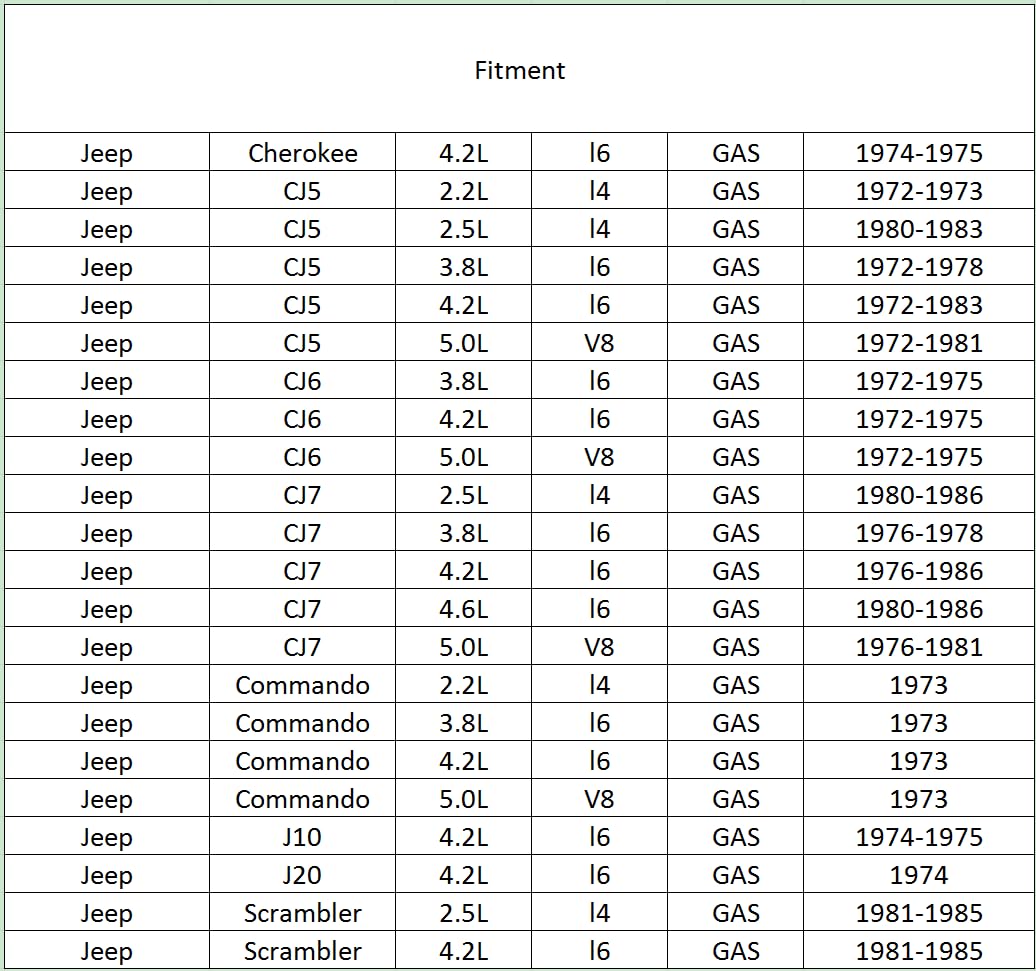

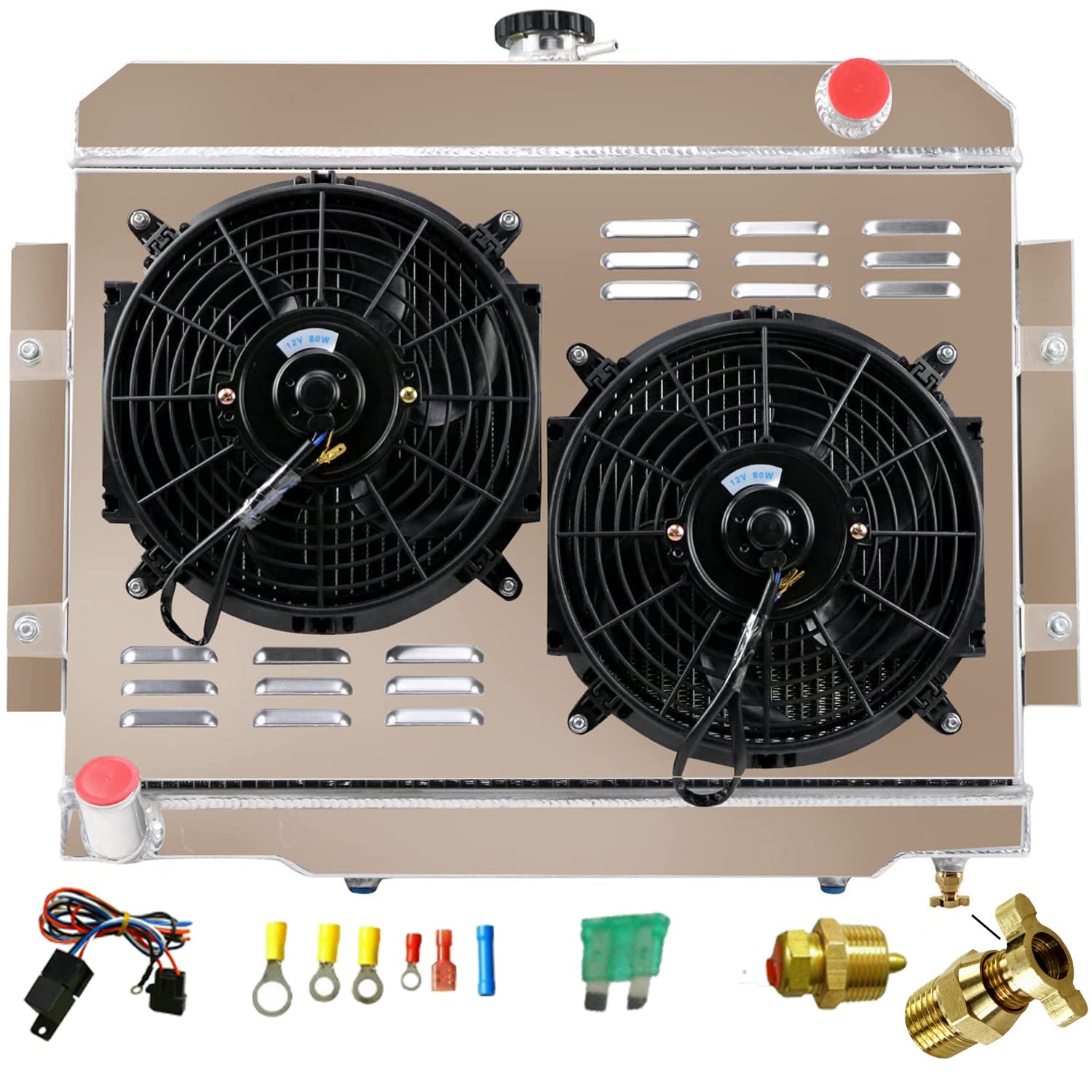

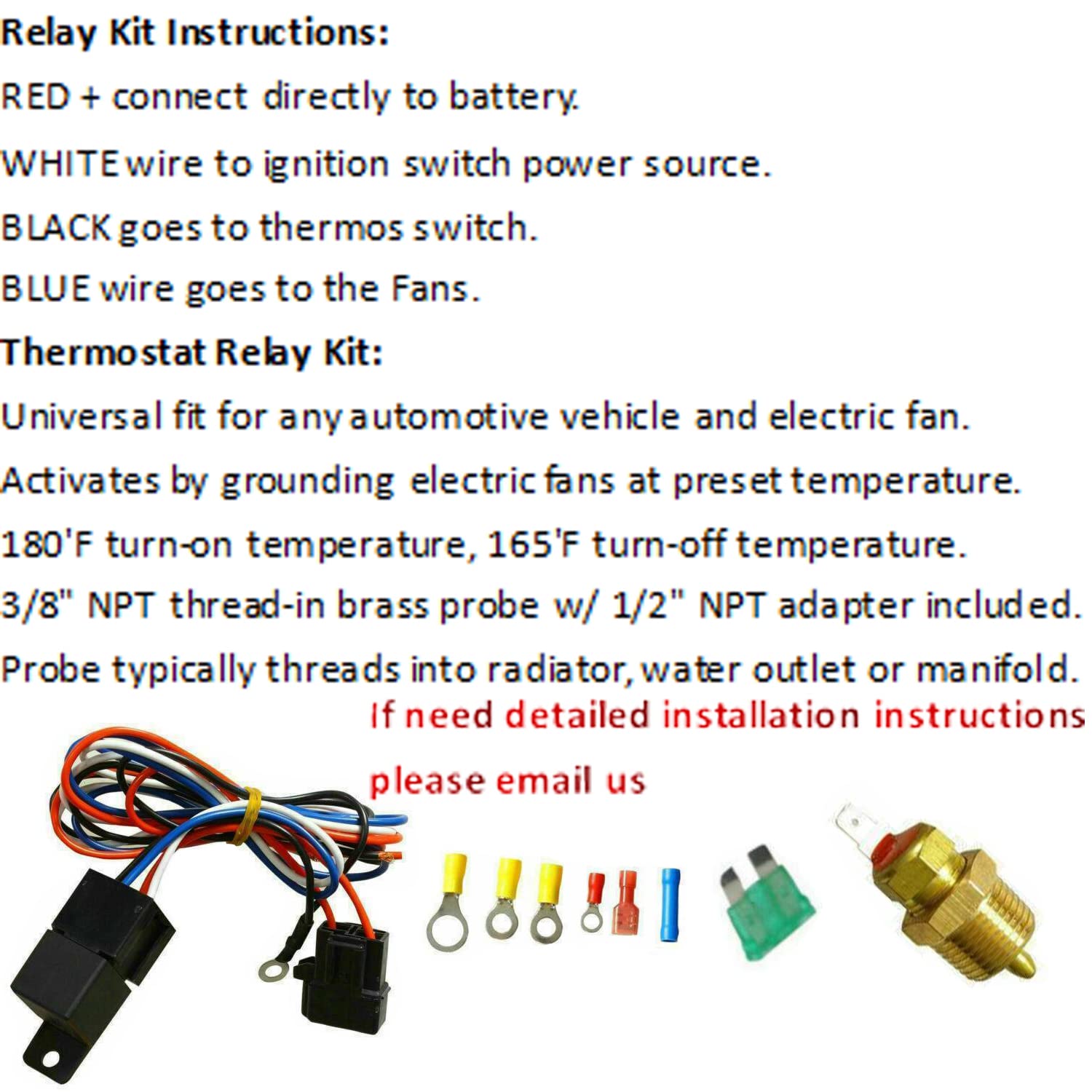

Fitment: For Jeep CJ5 3.8L / 4.2L / 5.0L 1972-1983 For Jeep CJ6 All Models 1973-1975 For Jeep CJ7 3.8L / 4.2L / 5.0L 1976-1986 Part Number: CC583 CU583 DPI583,R583-LKQ,R583-ACP,J536155,R1589-ACP,R1589-LKQ,583,CC583,CU583,DPI583, 583 0583 05830583AA RAD583 P583 R0583 This Listing Is Including 1 X 4 Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12"Fans (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details: Row: 4 Row Core Material: Full Aluminium Radiator Cap: included Core and Tank: All Aluminum Transmission: Automatic and Manual. Crafts:100% Tig welded Trans Cooler Details:1/8-27NPT Mounting Specs:Vert - 7 Horizontal - 25 3/4 FAN SPEC: Maximum Fan CFM: 2300±200 Fan Diameter X Height X Thickness:12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Relay Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included. Probe typically threads into radiator, water outlet or manifold. Description: 1：Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. 2：Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently.
