Aluminum Radiator for Jeep Wrangler TJ 1987-2006 - 2.4L 2.5L 4.0L L4 L6 Gas Engine - 4 Row Cooling System with 14" Fan, Shroud & Thermostat Relay Kit - Perfect for Off-Roading & Engine Cooling Upgrades

Product Description

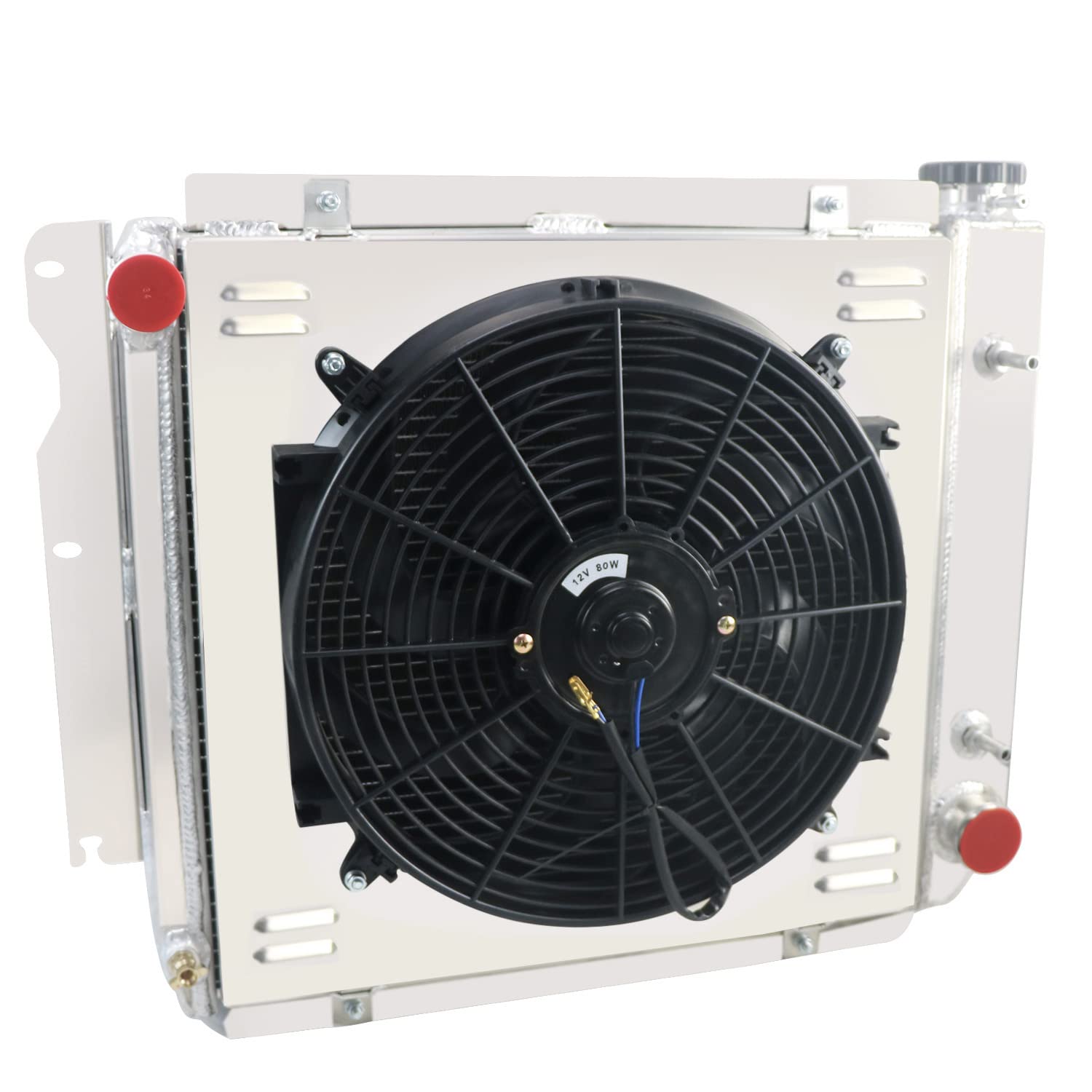

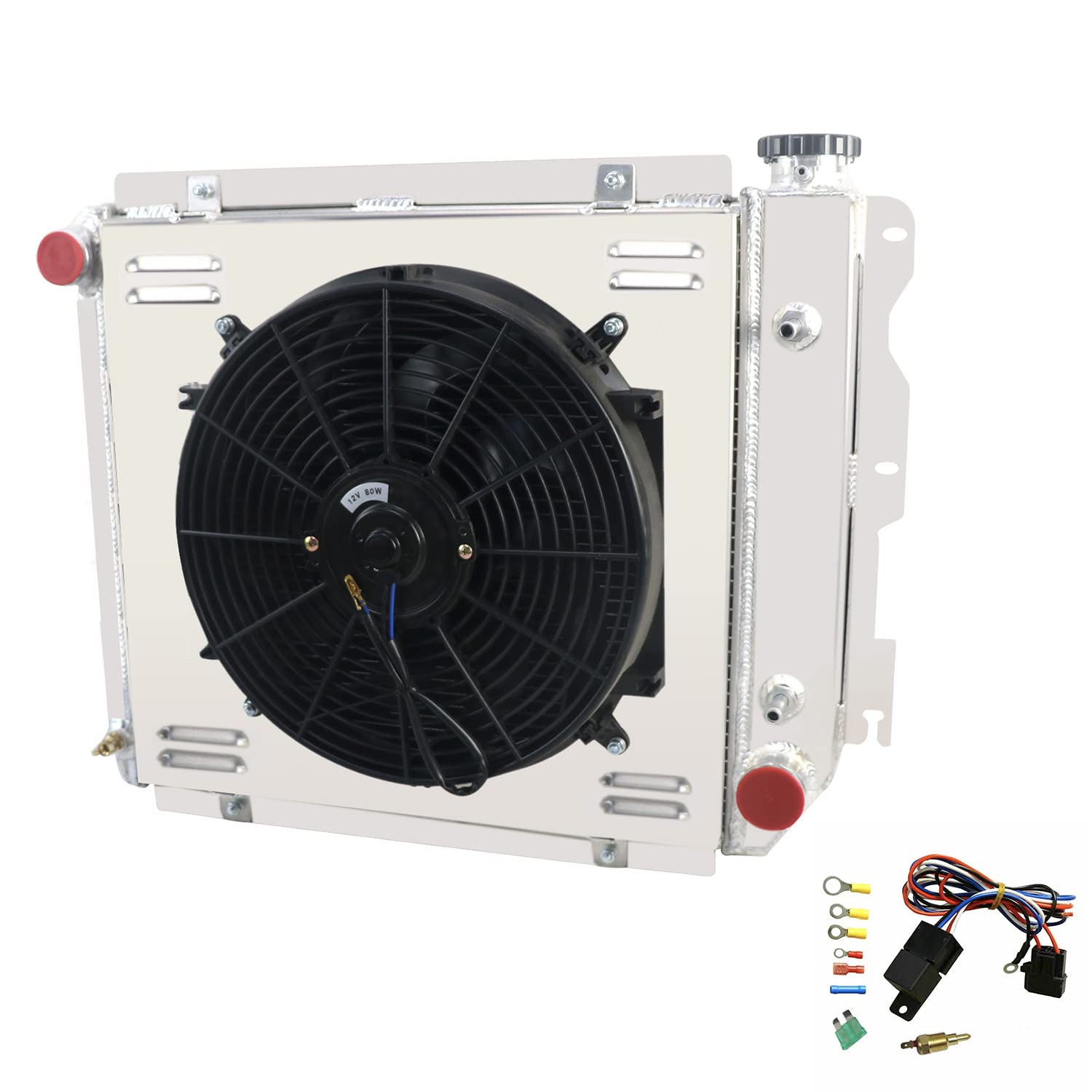

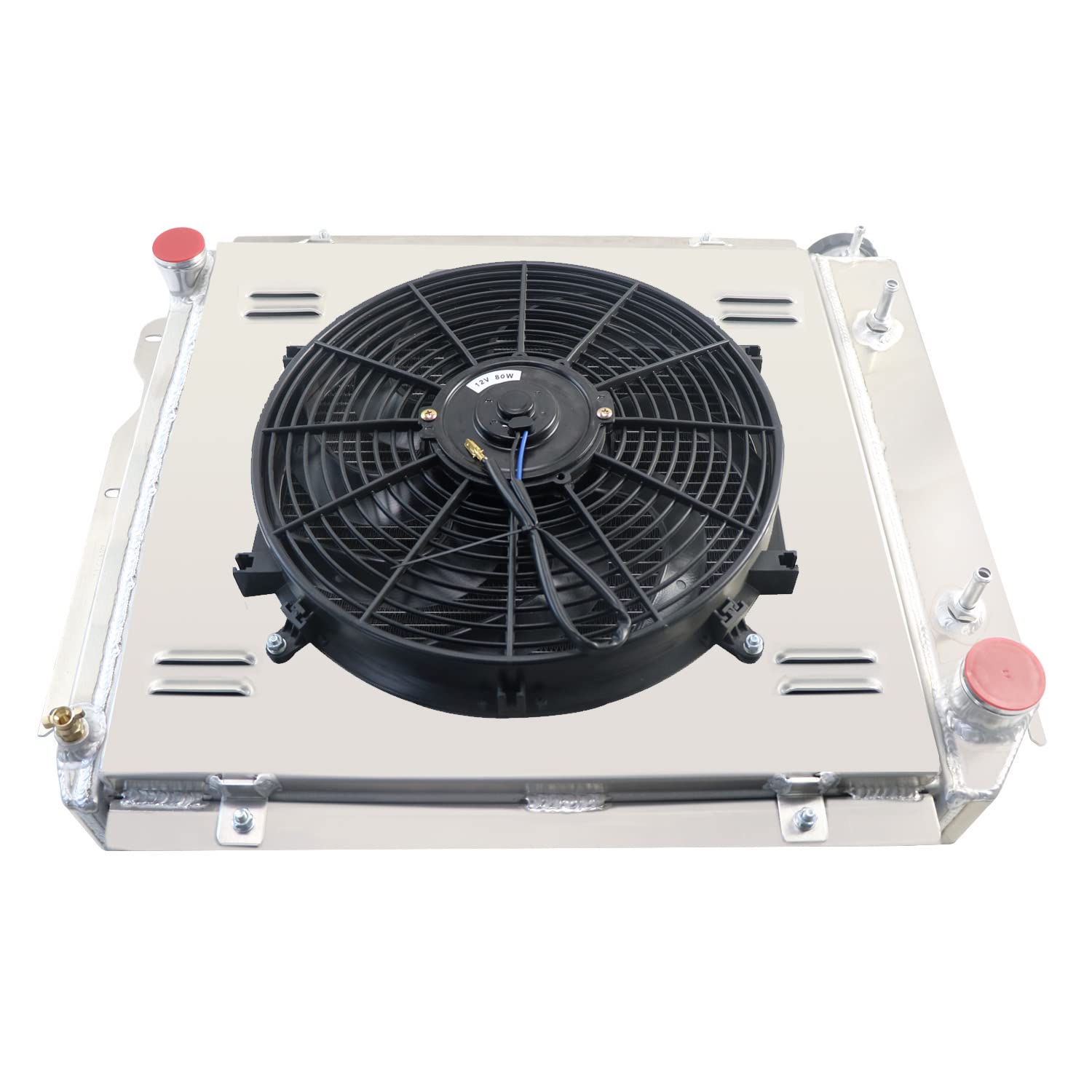

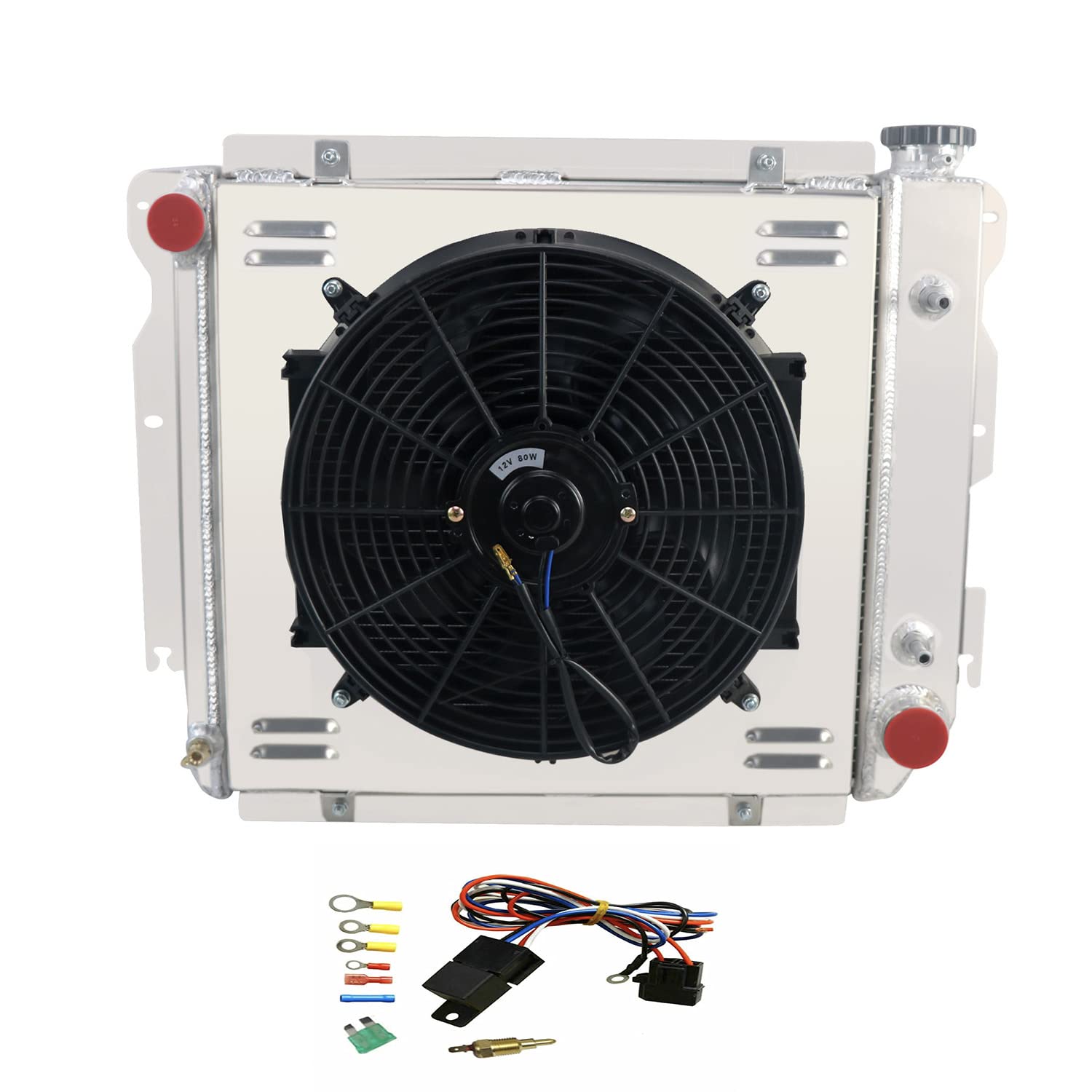

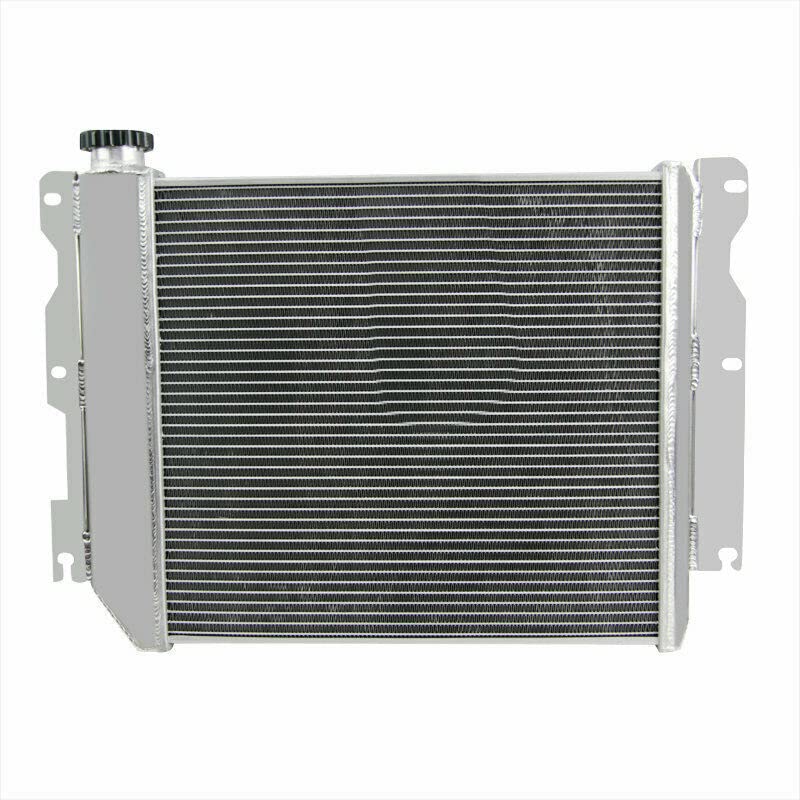

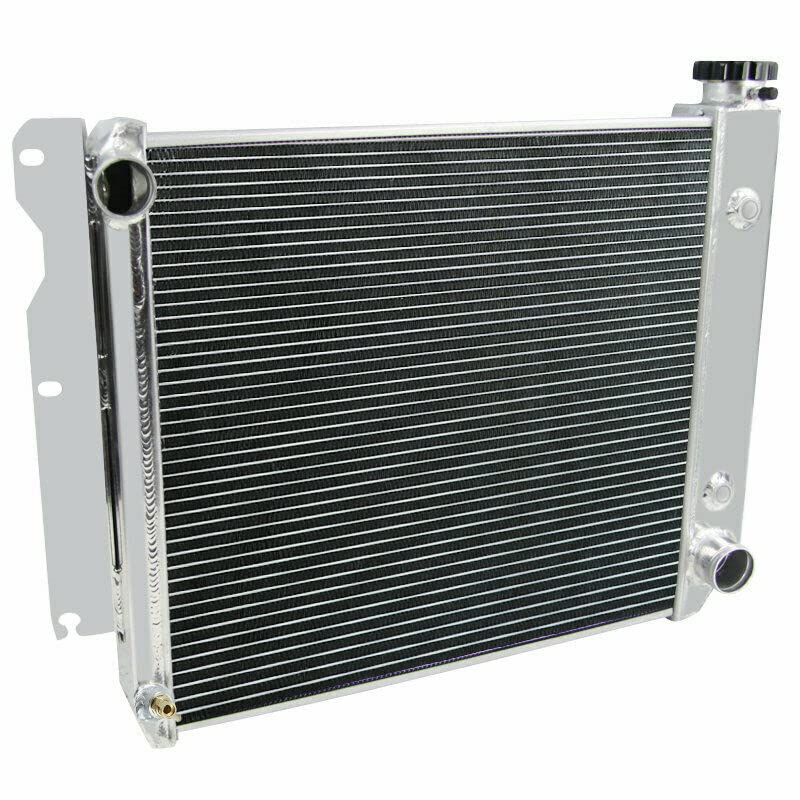

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 4 Row Core Size: 17.2'' H x 18.2'' W x 2.44'' Thickness Overall Size: 18.9''H x 25.4''W x 6.1'' T Top Hose Location & Size: driver 1.5 inch Bottom Hose Location & Size: Passenger 1.77 inch Transmission Oil Cooler: 26x250xM16x1.5(Z) OEM mount system Fan Spec: Maximum Fan CFM: 2200±200 FAN Diameter: 14.05" X 14.05" X 2.5" Number of Blades: 8 blades (Plastic) Maximum Fan RPM/ Amp Draw :2,250 rpm / 12.70 amps Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1987-2002 Jeep Wrangler TJ YJ V8 Conversion 1987-2002 Chevy GM Engine 87-06 / Jeep Wranglers TJ YJ 1987-1995 Jeep Wrangler YJ/TJ / Chevy V8 Engine PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
