CoolingCare 4-Row Aluminum Radiator with Shroud & Dual 12" Fans + Thermostat - Compatible with 1973-1991 Chevy & GMC C10 C20 C30 K10 K20 K30 Pickup/Jimmy V8 - Perfect for Engine Cooling & Off-Road Performance

Product Description

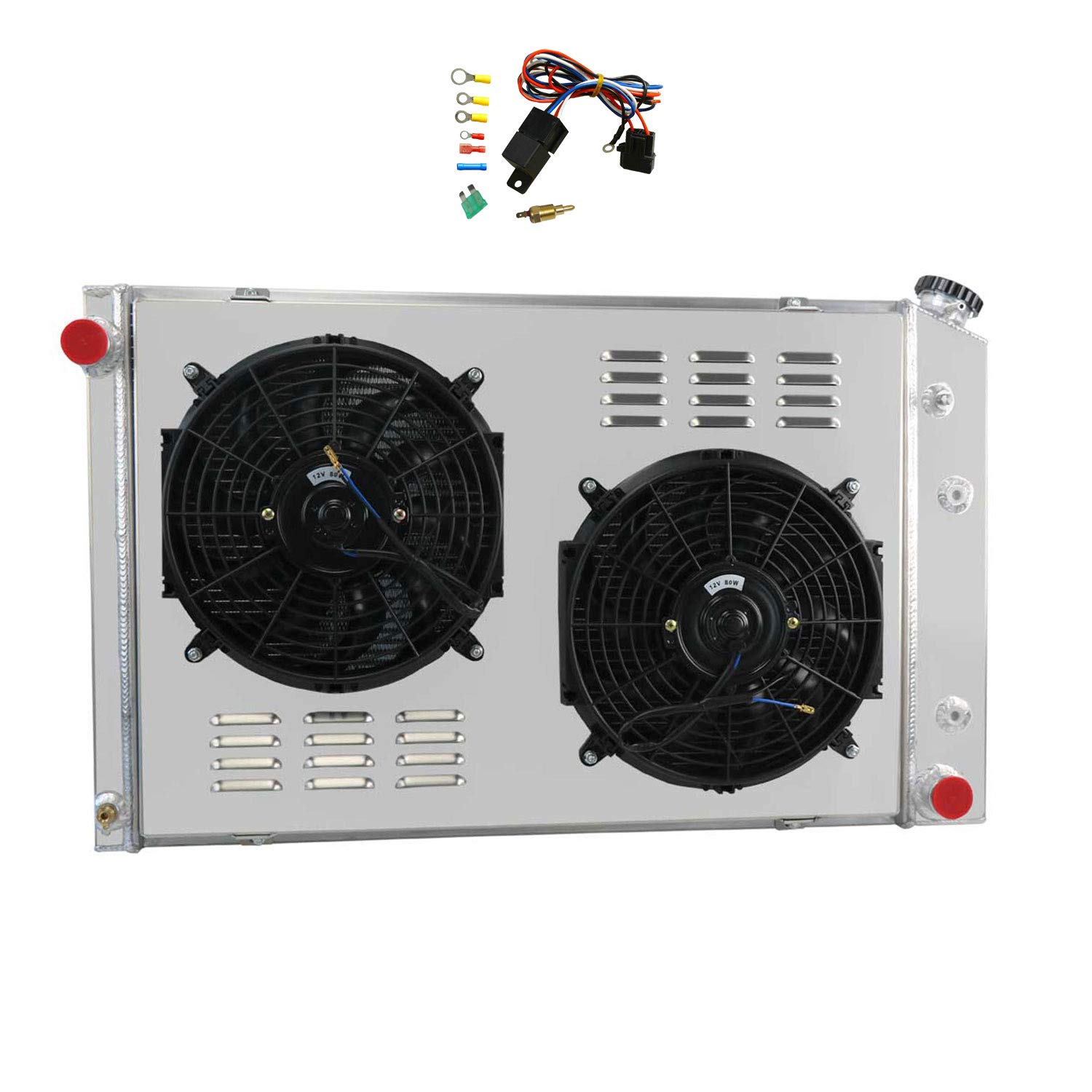

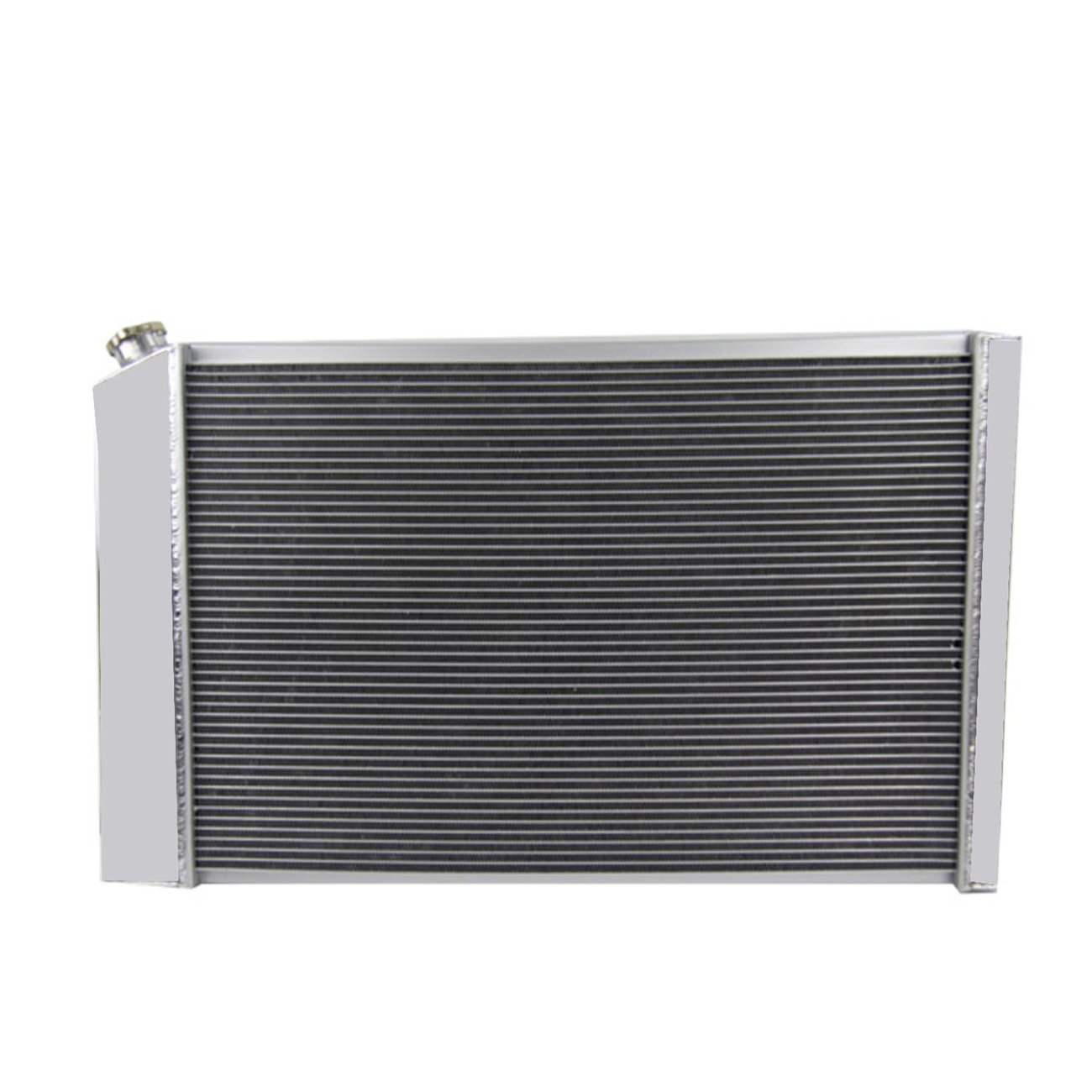

This Listing Including: 1 * 4-Row Aluminum Radiator (Includes Radiator Cap) 1 * Aluminum Shroud 2 * 12" Fans (Includes mounting kits) 1 * Thermostat Relay Kit Radiator Details: All Aluminum Tank and Core 4 Rows Cores Core Size: 19" high x 28-1/2" wide x 1.73'' thick Overall Size:20-1/4" high x 33-1/4" wide Upper inlets:1 1/2" located on the driver side Lower outlets:1 1/2" located on the passenger side Transmission Oilcooler : Include Mounting Type : Saddle Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Part Number: 716, CC716, CU716, RAD716, DPI716, EC716, AE716, SBR716, CU844, SPTCU716, 2308, 40385, 0AAS0778, 433716 Interchange Part Number: CU1599, EC716, 1599, B1599, B716, MC716, 1605-370200, 438716, 433716,0716-2AA,CR1599 Application: Pls check whether this radiator compatible with your vehicle by the application chart (the 7th image of this listing) or by Amazon Fitment Tool before you order.
