All Aluminum Radiator for 1966-1979 Ford Bronco F100 F150 F250 F350 V8 Engine - 3 Row Core with 12" Electric Fan & Relay Kit - Perfect for Off-Roading, Towing & High-Performance Cooling
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:10 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:37562624
Product Description

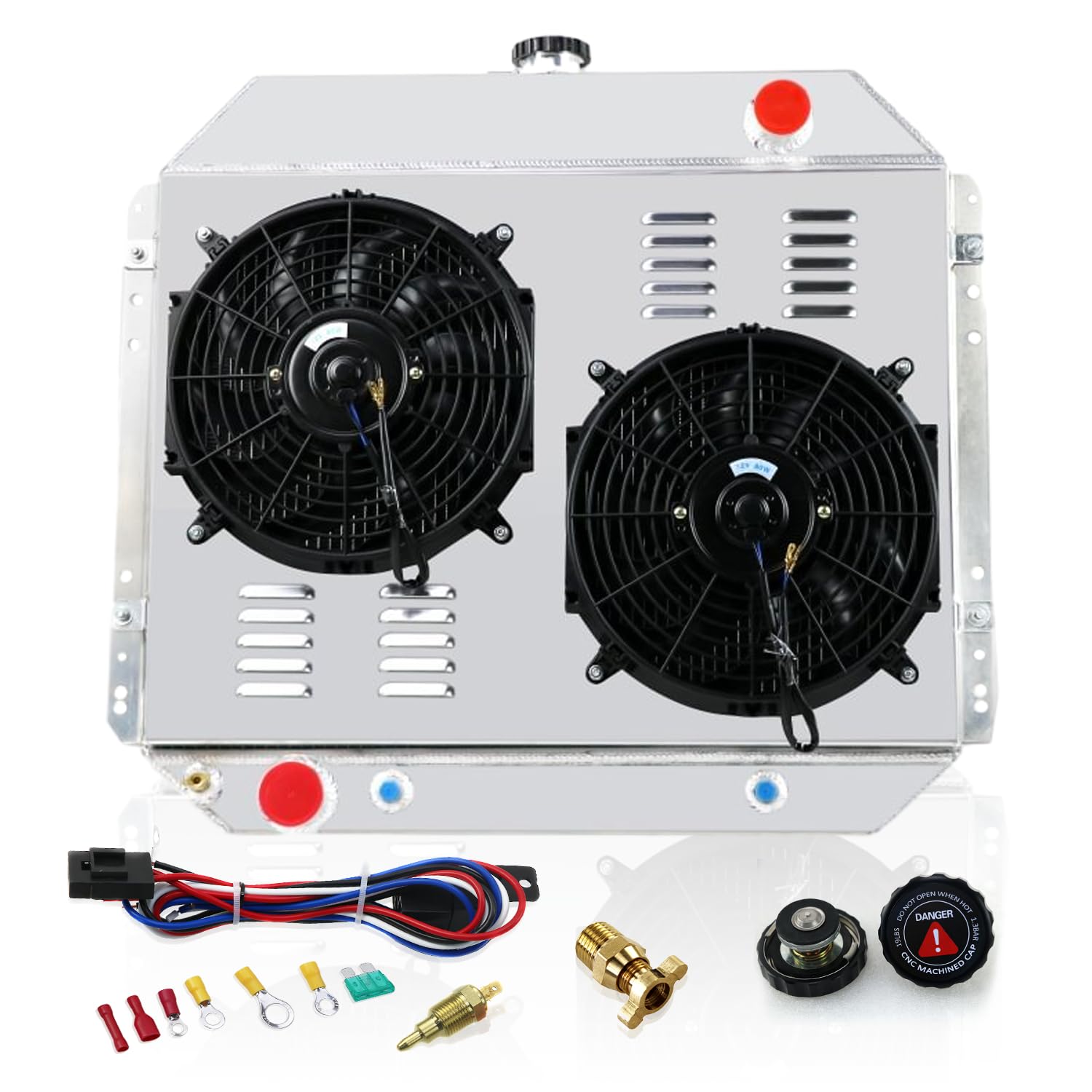

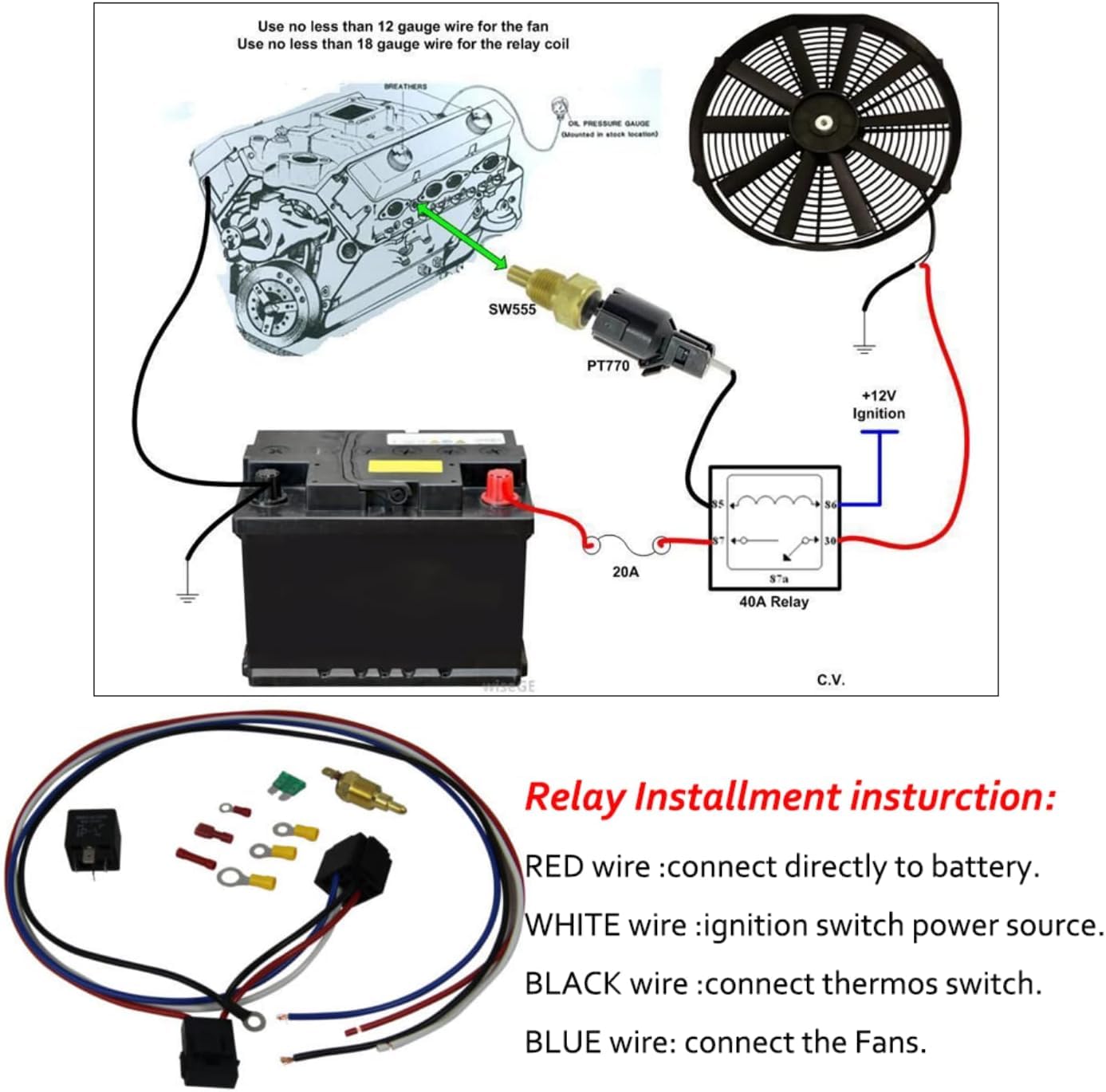

Product Includes: 1 X 3 Row Aluminum Radiator (includes radiator cap) 1 X Aluminum Shroud 2 X 12inch Fans (Includes mounting kits) 1 x Thermostat Relay Kits Radiator Specs: Upper Hose Fitting: PASS Lower Hose Fitting: DRIVER Core Material: All Aluminum Tank Material: T-5057 Aircraft Grade Aluminum Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Transmission Oil Cooler: Included Flow Type: Downflow Mounting Type: Bracket Mounting Specs: Ver - 16 1/2 Horizontal - 27 3/8 Fan Details: Maximum Fan CFM: 1730 cfm Fan Diameter (inch): 12.050 Thickness (inch): 2.500 Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans OEM/Substitute Numbers: 433,SBR433,CC433,EC433,AE433,MC433,RCC433,DPI433, DPI132, CU433, CU132, RA-F10068-2, RA-F100,DRCC433,433S,KKS433 This Radiator Compatible with: Ford Bronco 1978-1979 (351ci V8, 400ci V8) Ford F-Series Truck 1968-1969 (4.9L Straight 6-cylinder, 360ci V8, 390ci V8) Ford F-Series Truck 1970-1972 (360ci V8, 390ci V8) Ford F-Series Truck 1973-1975 (302ci V8, 360ci V8, 390ci V8) Ford F-Series Truck 1976 (302ci V8, 351ci V8) Ford F-Series Truck 1977-1979 (302ci V8, 351ci V8, 400ci V8) Note:PLS check core/overall/inlet/outlet SIZE carefully before you order
Product Features

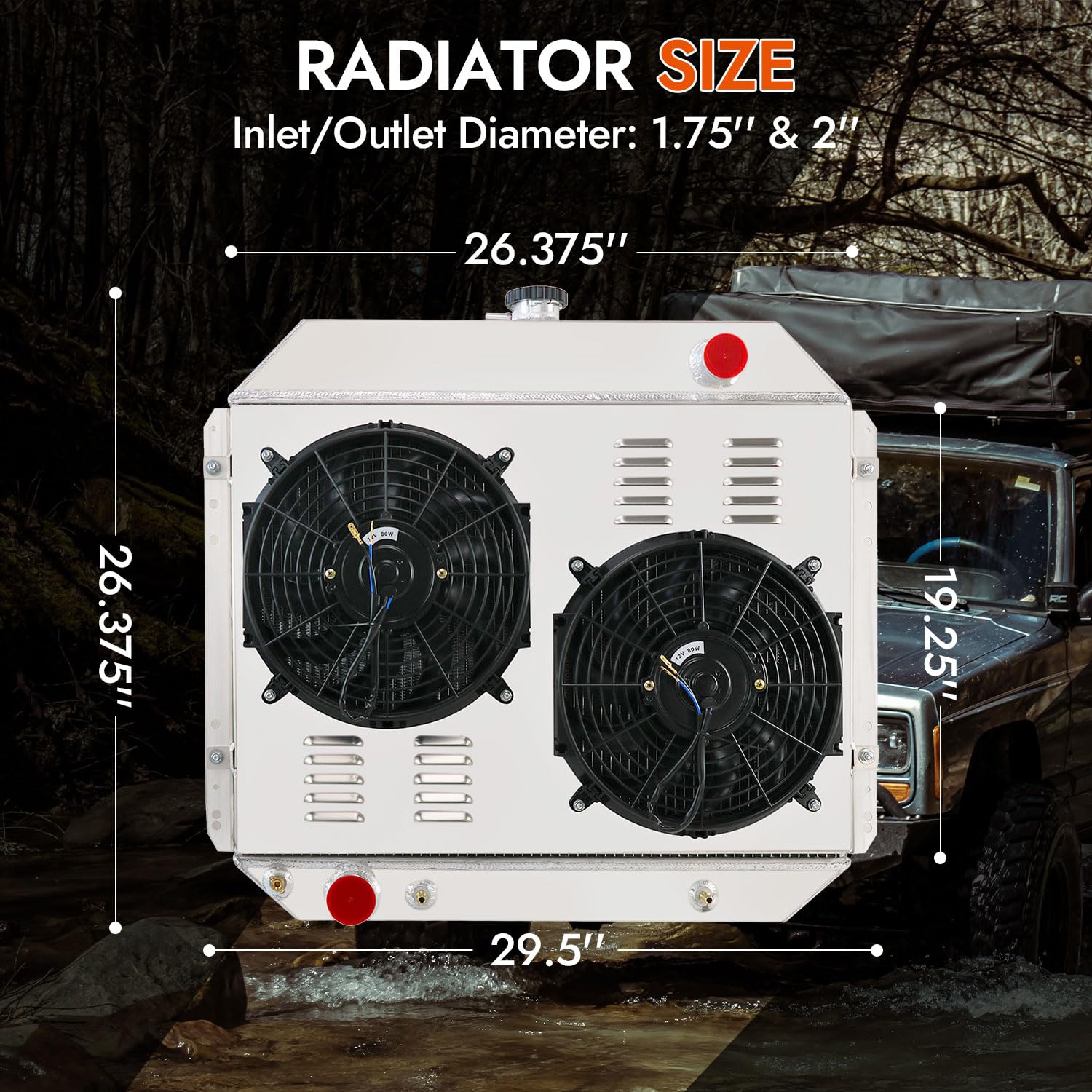

Core Size(inch)18.8 H x 26 W x 1.74 T / Overall Size(inch) 26 H x 29.5W / Rows 3 Core Radiator
Inlet Diameter(inch) 1.75 / Outlet Diameter(inch) 2 / Upper Hose Fitting PASS / Lower Hose Fitting DRIVER

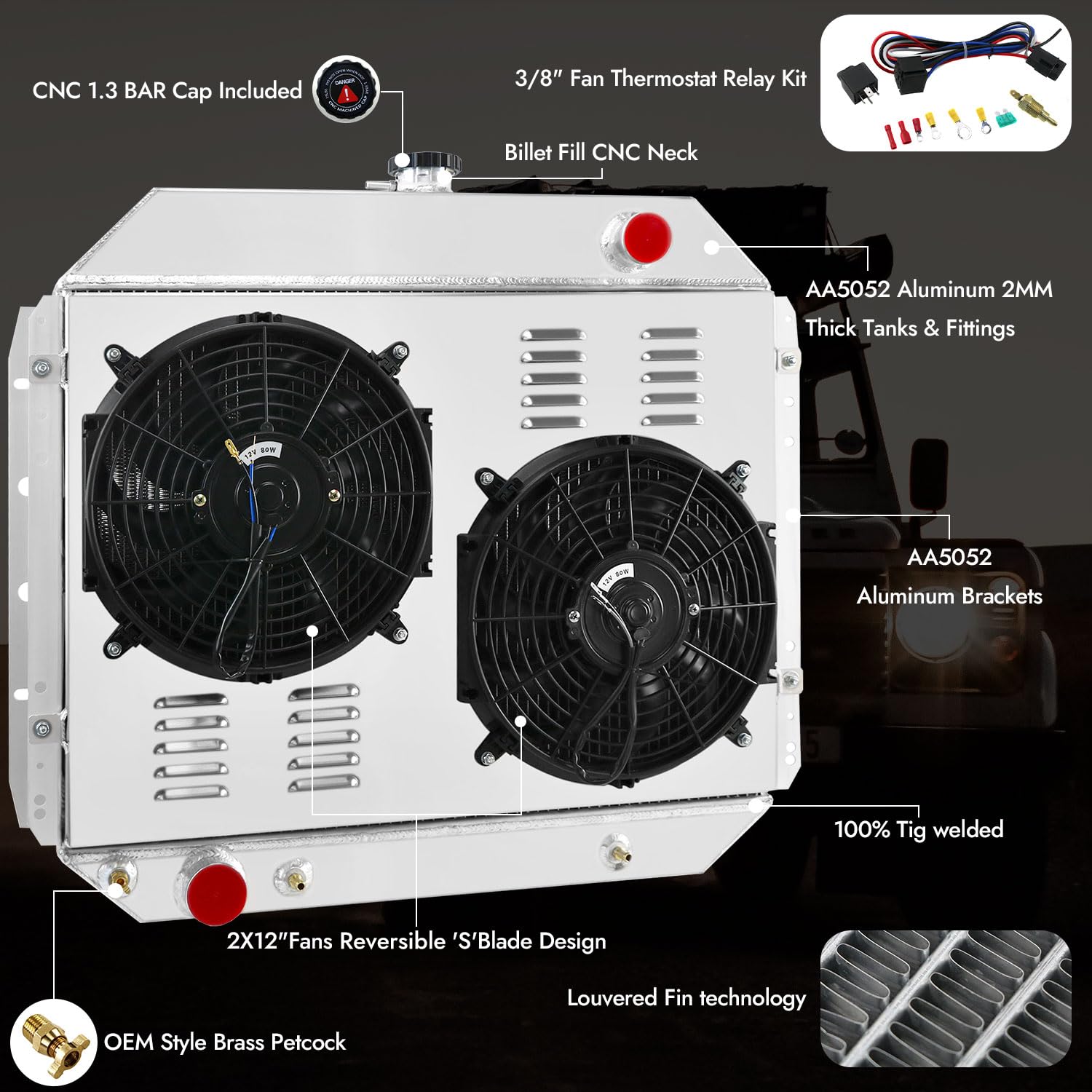

Build-in Transmission oil cooler size 305x1/4-18NPT（T） / Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
Aftermarket Radiator for 1966-1979 Ford Bronco F100 F150 F250 F350, for Ford 1975-1979 F150 Radiator, for 66-79 Ford F250 Radiator, for 66-79 Ford F350 Radiator, for 66-79 Ford Bronco Radiator, for 66-79 Ford F100 Radiator

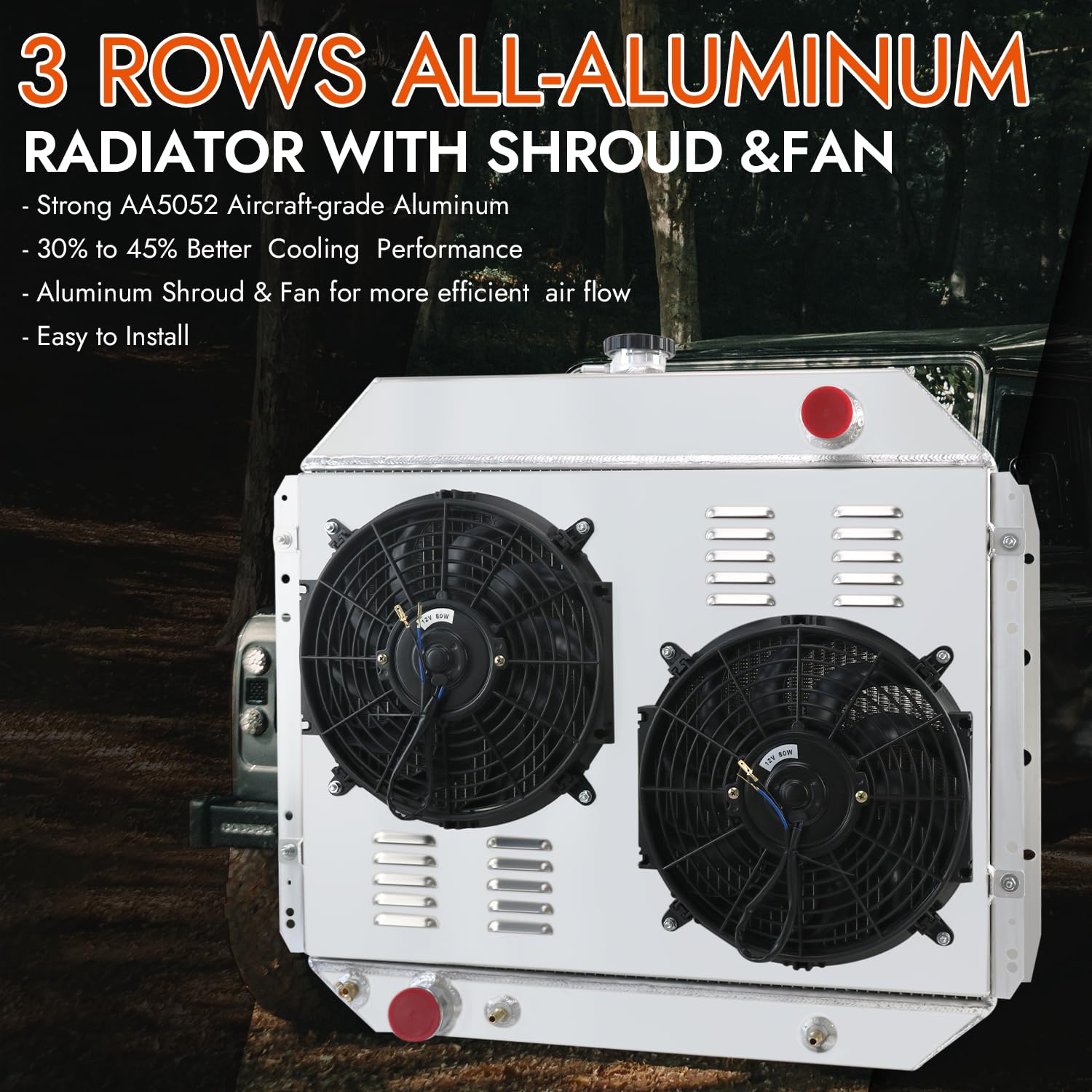

All-aluminum design with durable TIG-welded construction, KUUHLERSAT Aluminum Radiator is welded in vacuum brazing furnace, no epoxy
100% leak/durability tested ; No drilling or modifications needed for installation
High performance, 30-35% extra flow
Customer Reviews
Have not installed yet but it looks good and the price was right. Will update after installation on my F100!
