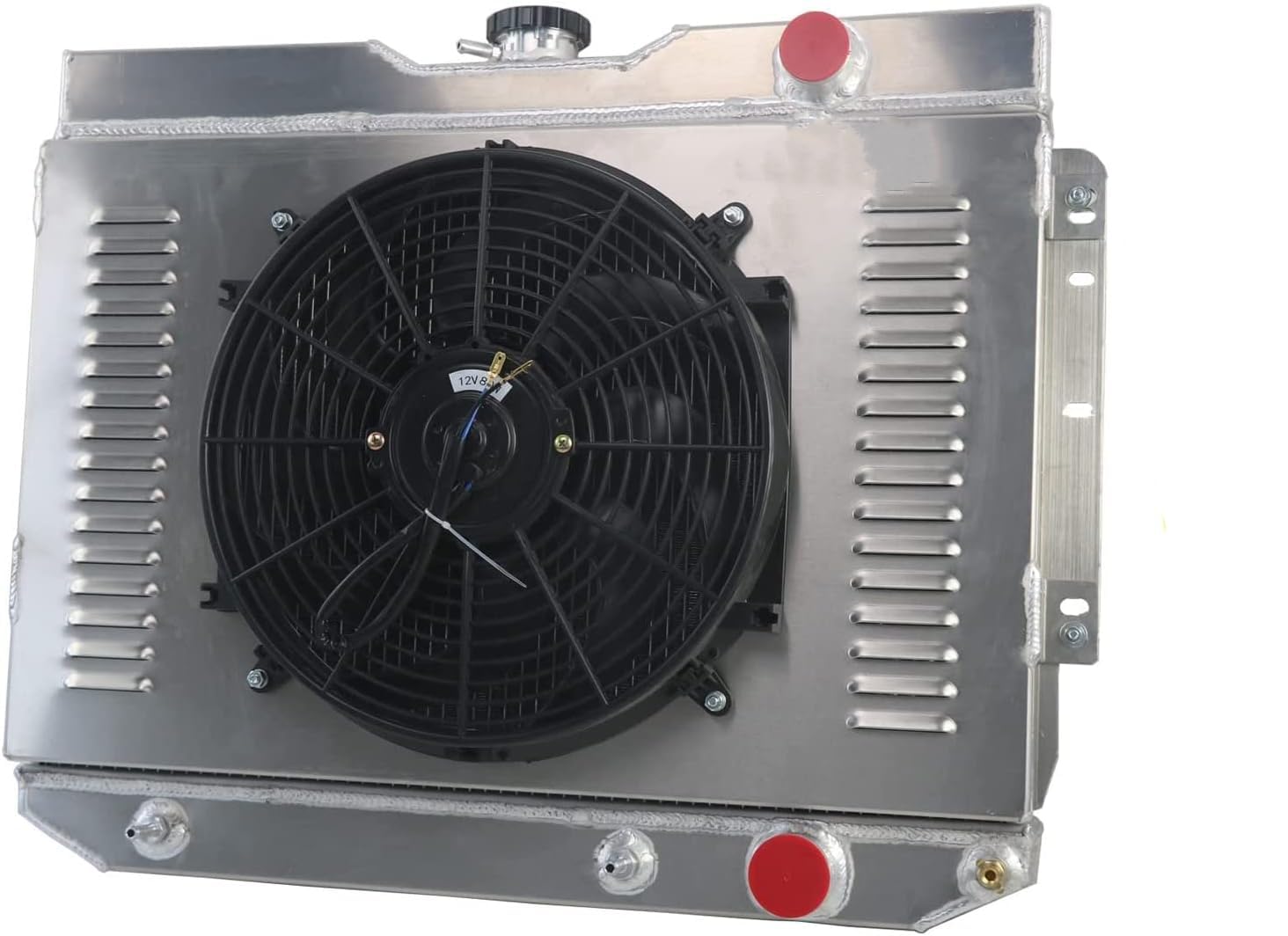

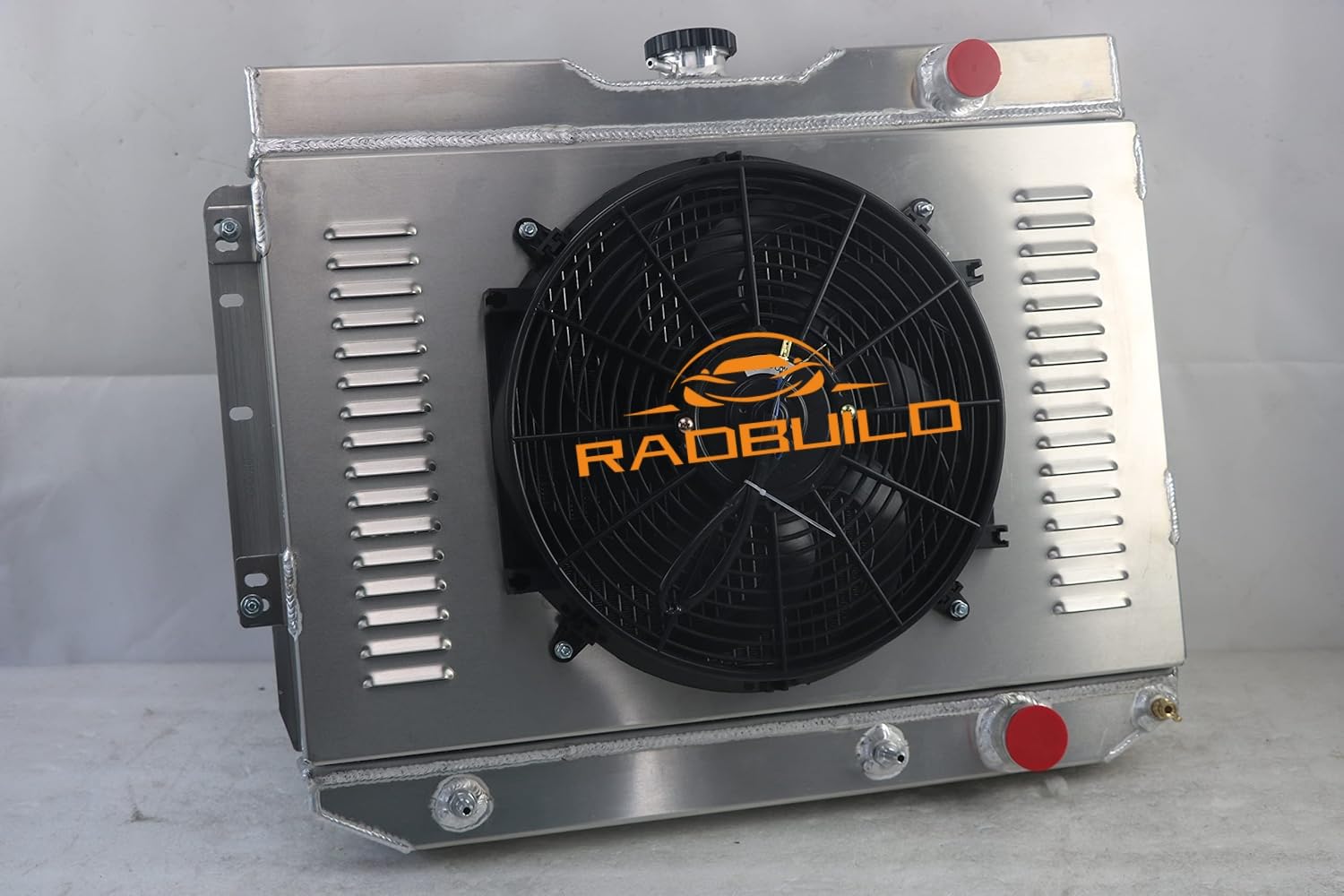

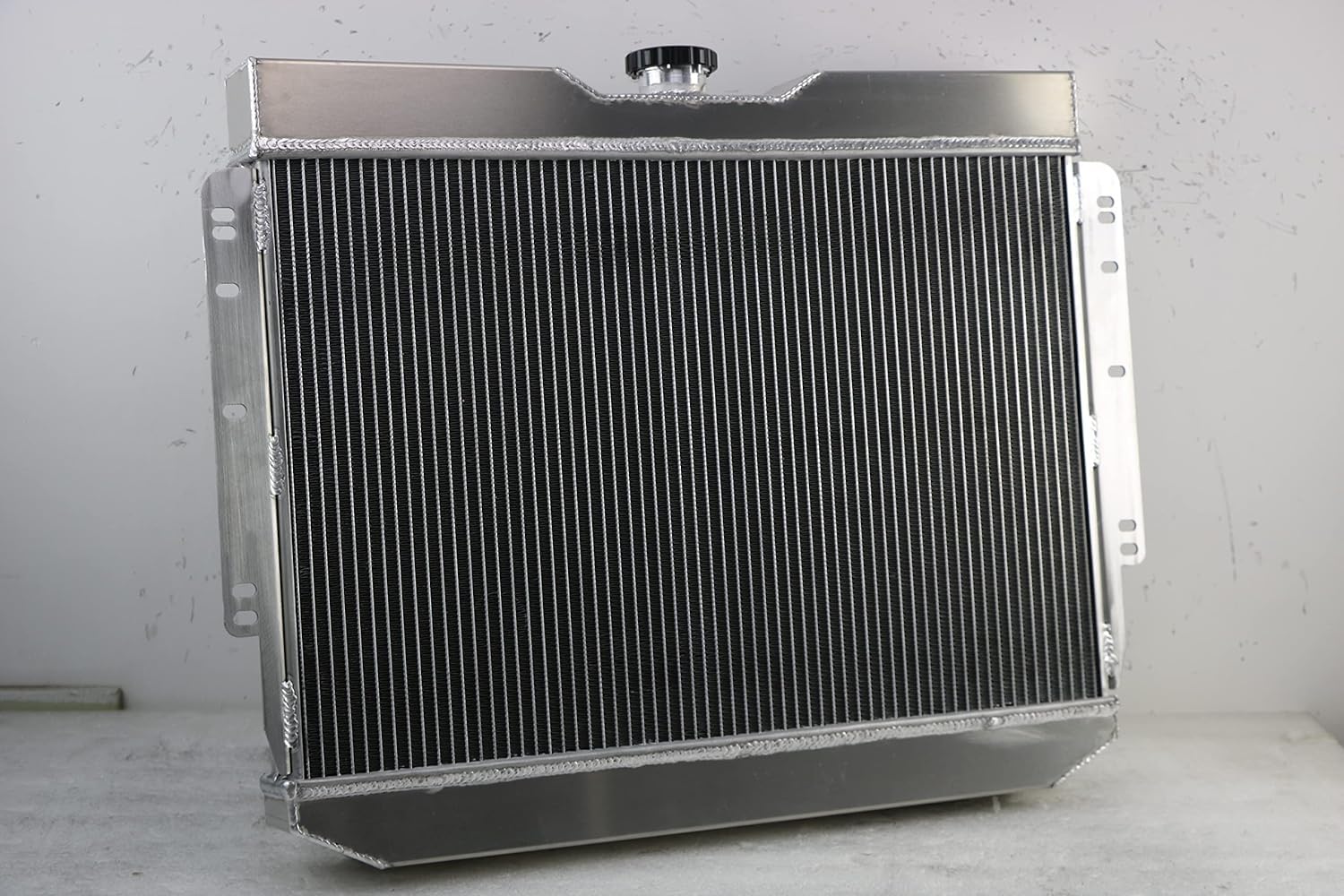

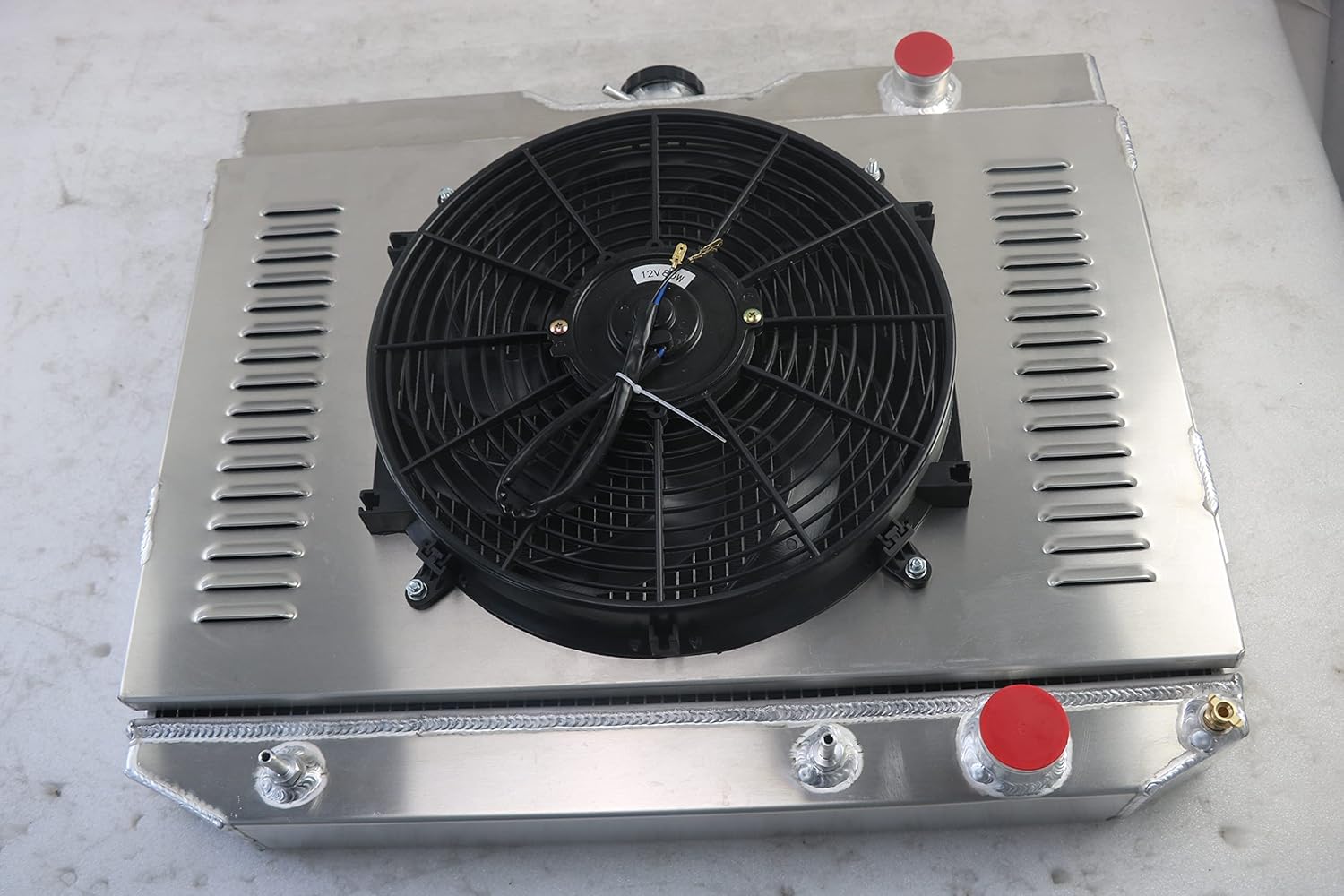

High-Performance 3-Row Aluminum Radiator for 1959-1965 Chevy Impala, El Camino, Bel Air, Biscayne V8 - Includes Shroud & Fan Relay Kit - Perfect for Classic Car Restoration & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:27 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:35554581
Product Description

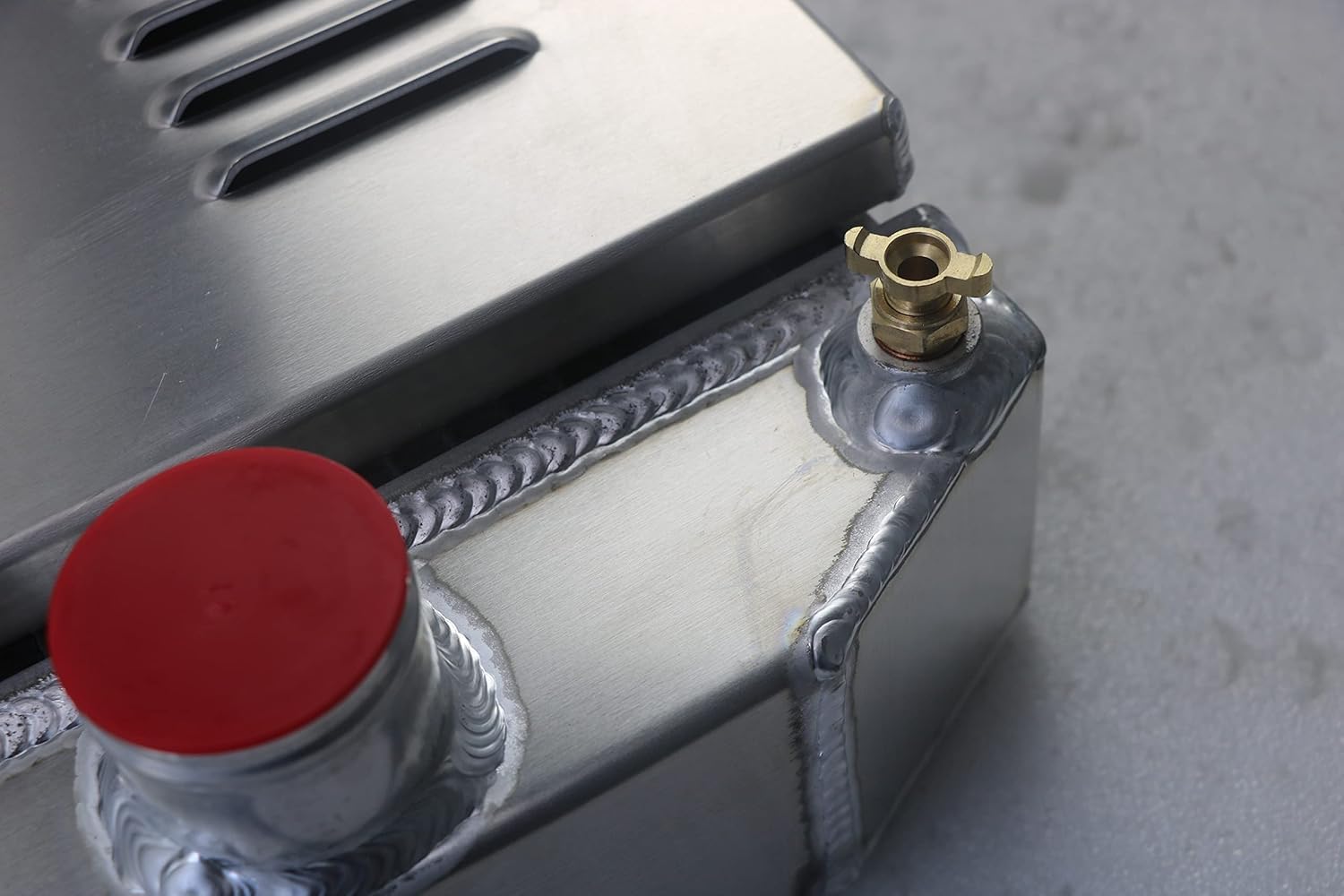

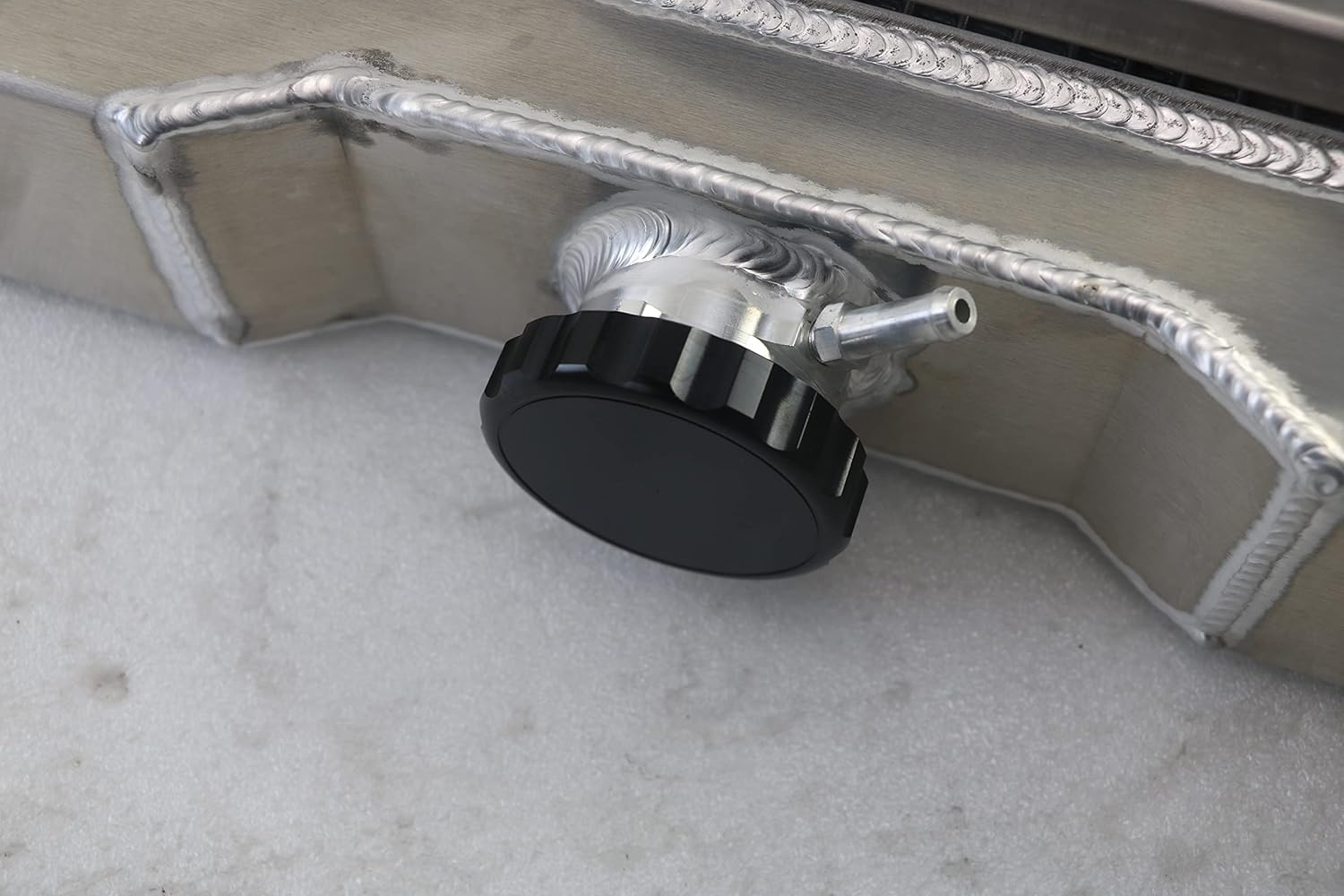

FitmentChevy Impala 1959-1963 Only with Both Hoses on Pass SideChevy Chevelle 1964-1965 Only with Both Hoses on Pass SideChevy Bel-Air 1963-1965 Only with Both Hoses on Pass SideChevy Kingswood 1959-1962 Only with Both Hoses on Pass SideChevy Biscayne 1960-1965 Only with Both Hoses on Pass SideChevy Caprice 1959-1962 Only with Both Hoses on Pass SideChevy El Camino 1959-60/1964-65 Only with Both Hoses on Pass SideGMC Cabellero 1959-60/1964-65 Only with Both Hoses on Pass SideRadiator DetailsRow Count: 3 RowCore Size: 1.73" T x 16.2" H x 24.7" W Overall Size: 21.5" H x 27.9" WUpper Inlet: 1.57" located on driver sideLower Outlet: 1.77" located on passenger sideSurface Finish: Aircraft Grade Raw AluminumOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2200±200FAN DIAMETER X HEIGHT X THICKNESS: 14.05" X 14.05" X 2.5"Number of Blades: 8 blades (Plastic)Maximum Fan RPM/ Amp Draw: 2,250 rpm/12.70 ampsThermostat KitRED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number: DPI281, SBR281, CC281, CU281, RAD281
Product Features
★For Chevy Impala 1959-1963; For Chevy Chevelle 1964-1965; For Chevy Bel-Air 1963-1965; For Chevy Kingswood 1959-1962; For Chevy Biscayne 1960-1965; For Chevy Caprice 1959-1962; For Chevy El Camino 1959-60/1964-65; For GMC Cabellero 1959-60/1964-65
★Core Size 1.73" T x 16.2" H x 24.7" W; Overall Size 21.5" H x 27.9" W; Inlet/Outlet Diameter 1.57"/1.77"

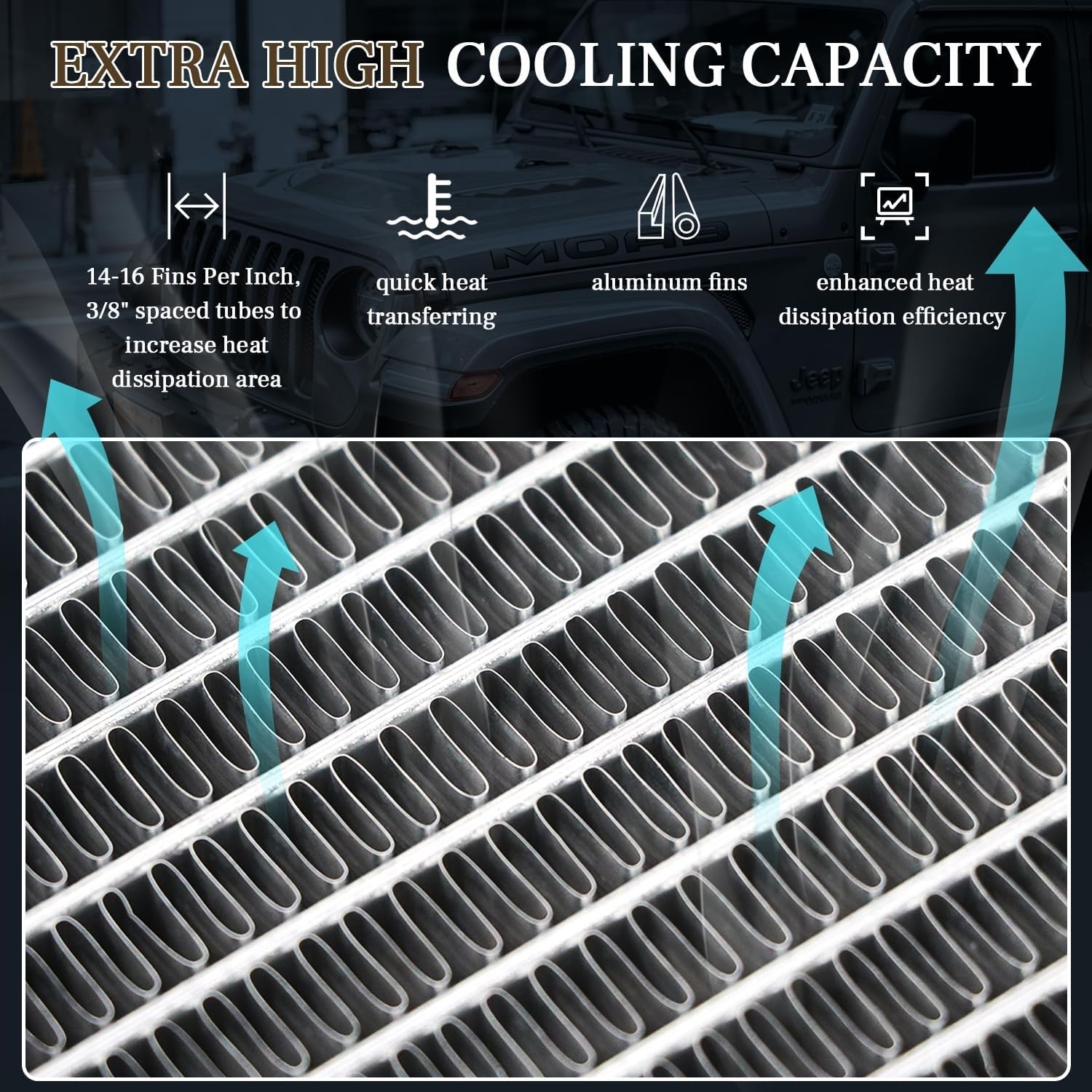

★High Performance. Full AA5052 Aircraft Aluminum craftsmanship radiator & exclusive tube design that dramatically increases cooling efficiency by up to 30%~45%, strong and durable, 100% welded by TIG, No Epoxy. 100% Leak Tested
★Easy to Install. Meticulously built to superior OE standards a precise fit, direct bolt-on replacement. No Drilling or Modifications Needed Installation. Please contact us if you need additional installation instructions
★Excellent service. Local delivery. Shipping damage, leakage and any other problems can contact us for exchange or refund, reply within 12 hours
