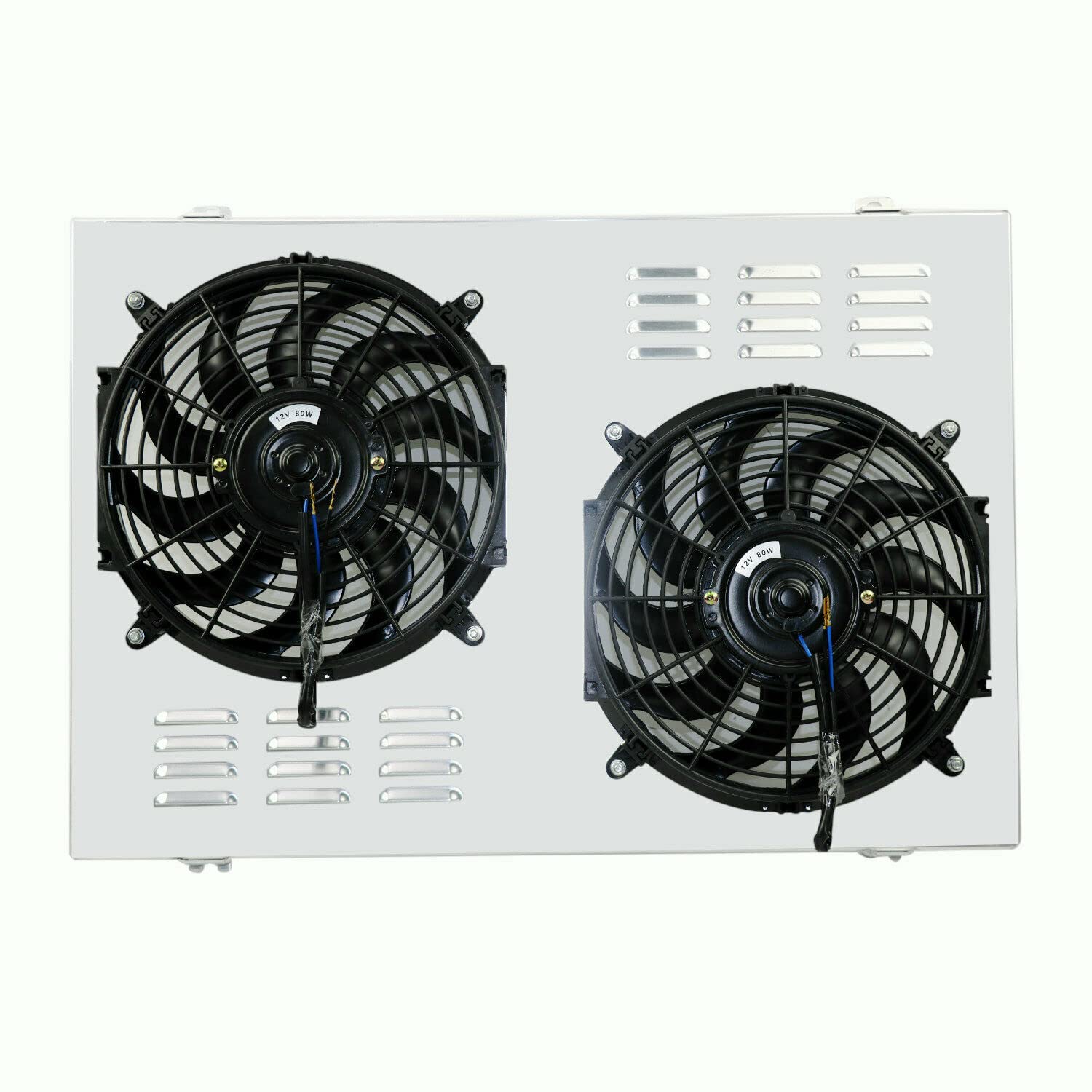

High-Performance Aluminum Radiator Fan Shroud for 1971-1990 Buick, Chevy Chevelle, Impala, Caprice, Malibu, C10-C30, K10-K30, Suburban, GMC, Cadillac, Plymouth, Pontiac, El Camino V8 - Perfect for Engine Cooling & Restoration Projects

Product Description

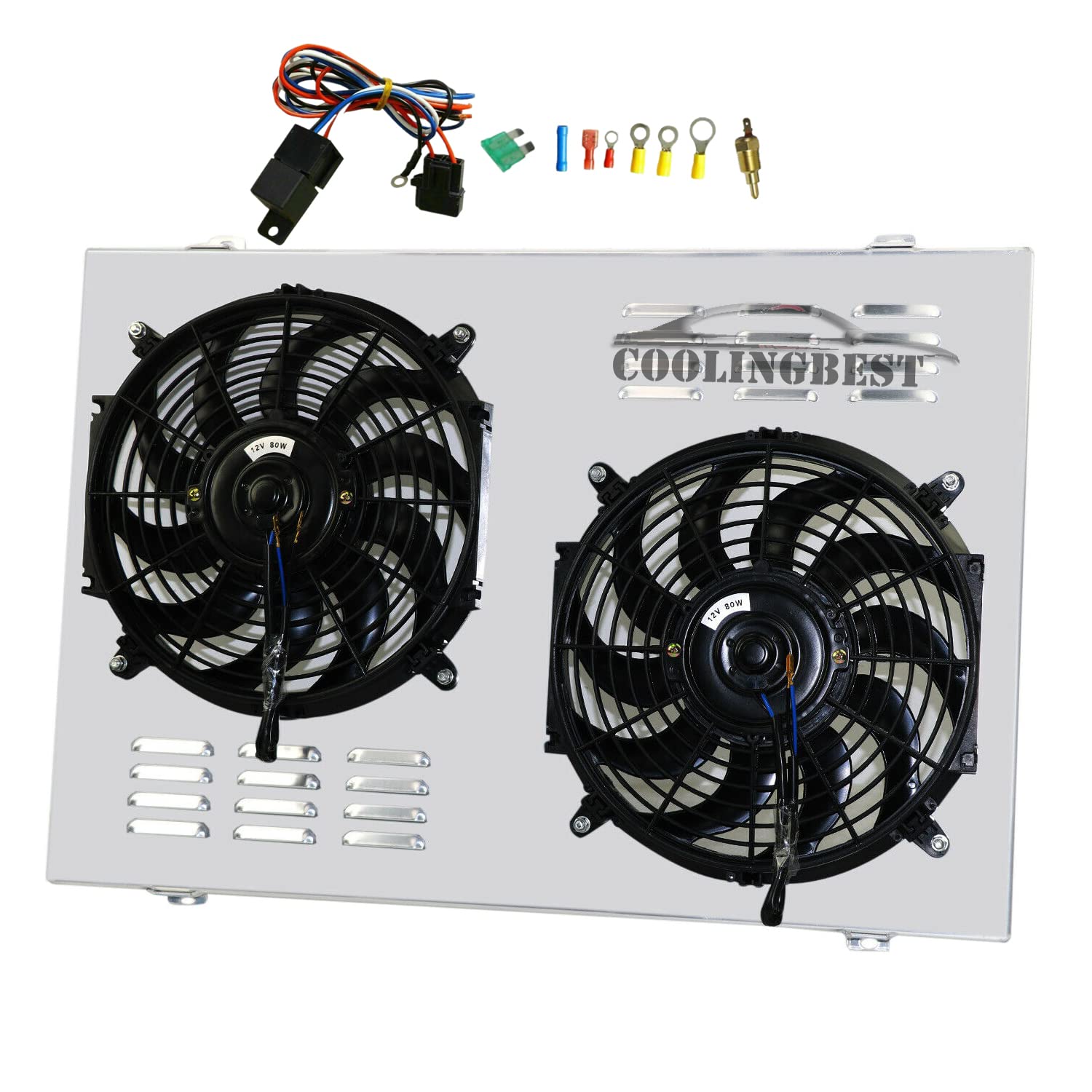

Compatible with: 1968-1973 Chevy Chevelle 5.0L 5.7L 6.6L 7.4L 1979-1987 Chevy El Camino 3.3L 3.8L 4.4L 5.0L 5.7L 1980-1986 Chevy Caprice 5.0L 5.7L 1979-1980 Chevy K20 4.1L 4.8L 1980-1985 Chevy Impala 5.0L 5.7L 1979-1988 Chevy Monte Carlo 3.3L 3.8L 4.4L 5.0L 1979-1981 Chevy Camaro 4.4L 5.0L 5.7L FANS: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect! 2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material. 3. Additional with thermostat,professional matching advice, consider for every detail and needed
