High-Performance 4-Row Aluminum Radiator for 1982-2002 Chevy S10 S-10 Blazer L4 V6 & 1984-1990 Chevy Corvette 5.7L V8 - All Aluminum Construction with Fan Shroud & Relay Kit - Perfect for Engine Upgrades and Off-Road Adventures

Product Description

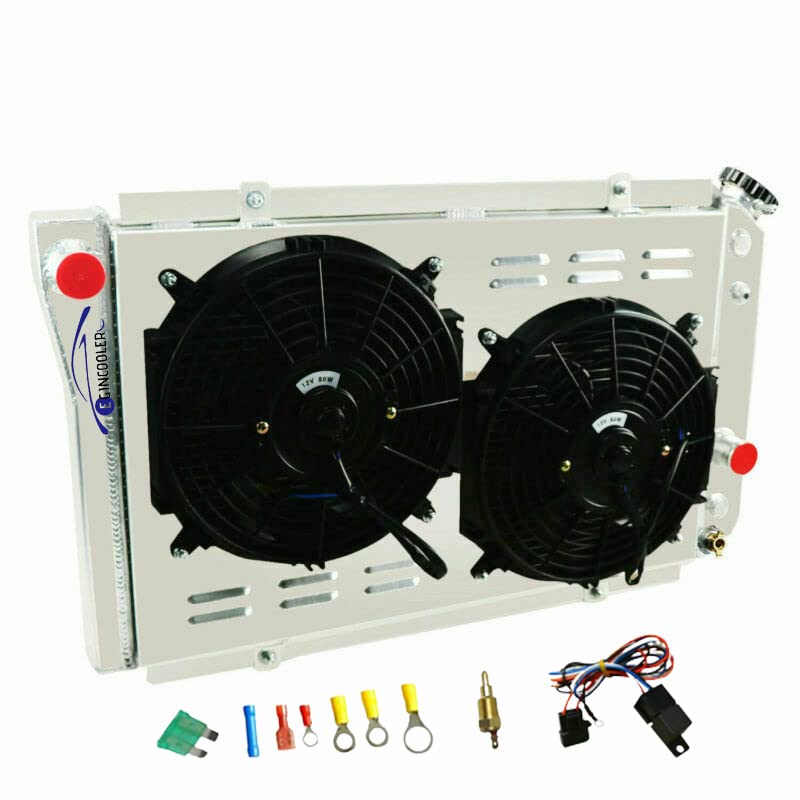

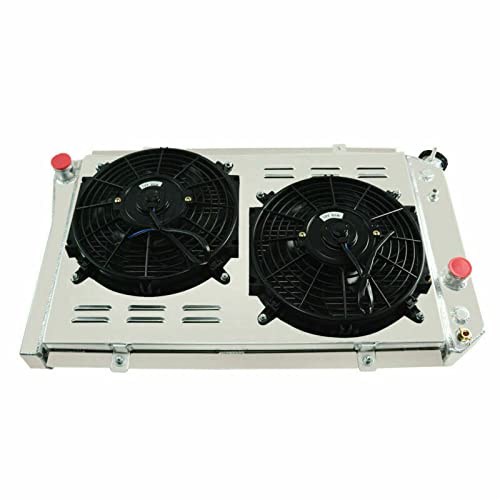

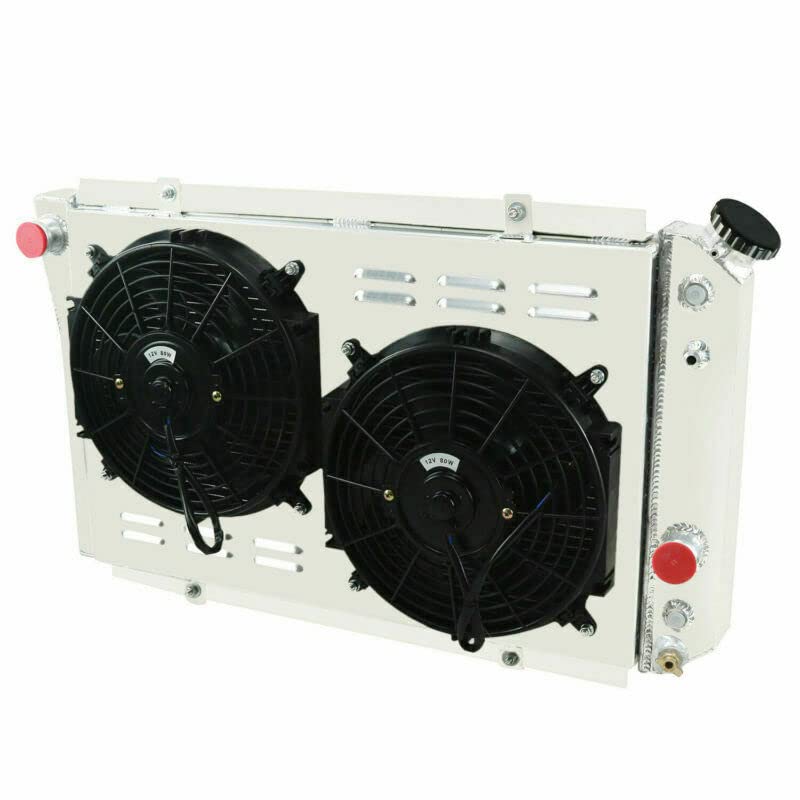

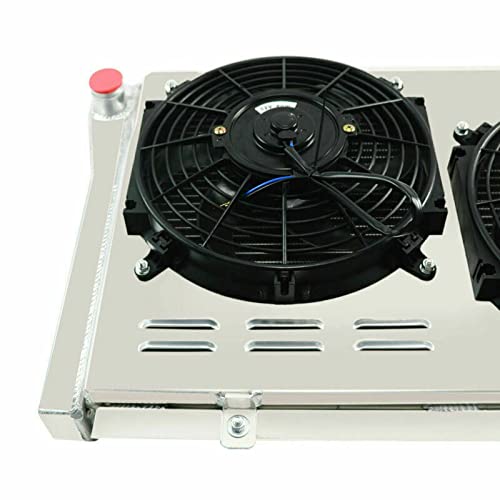

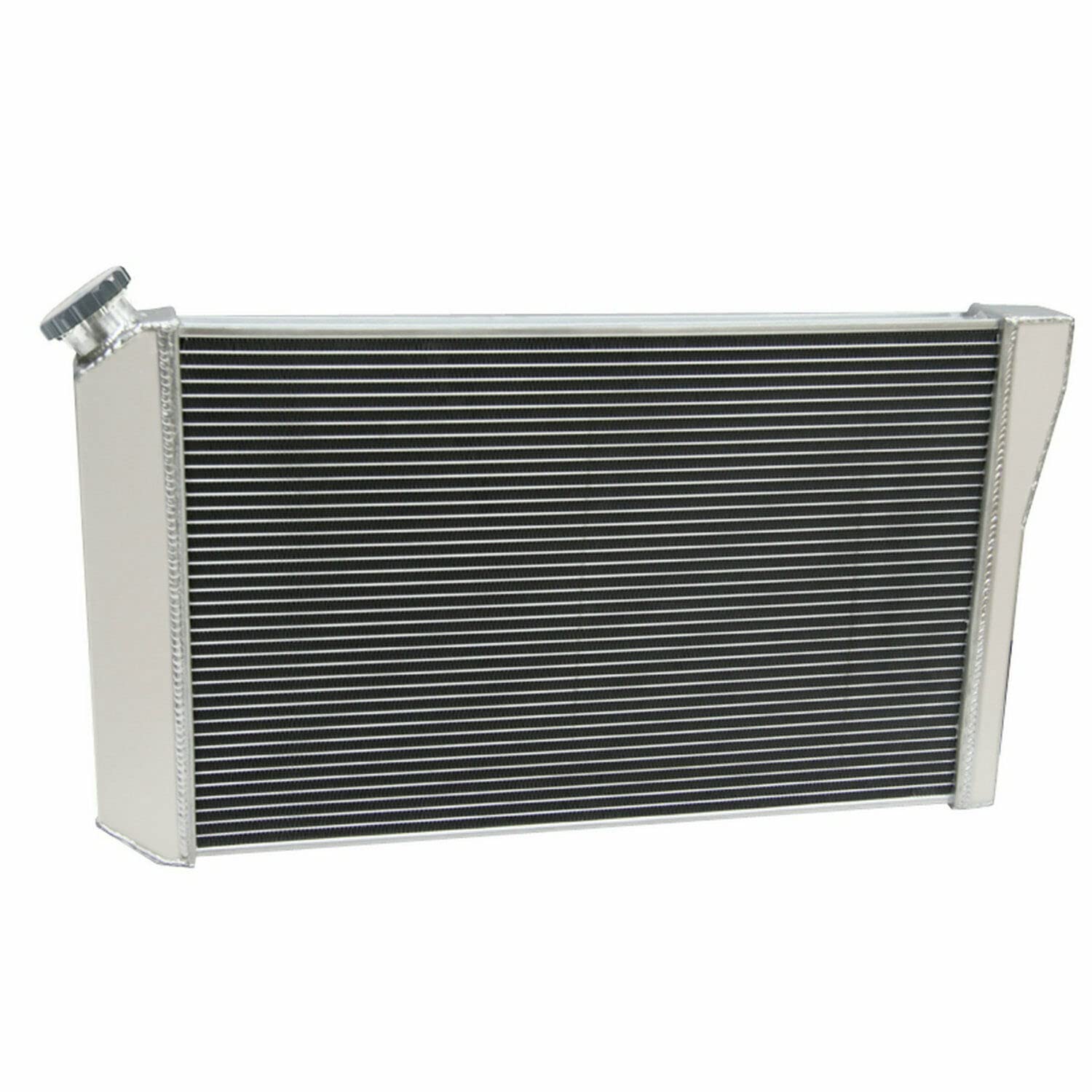

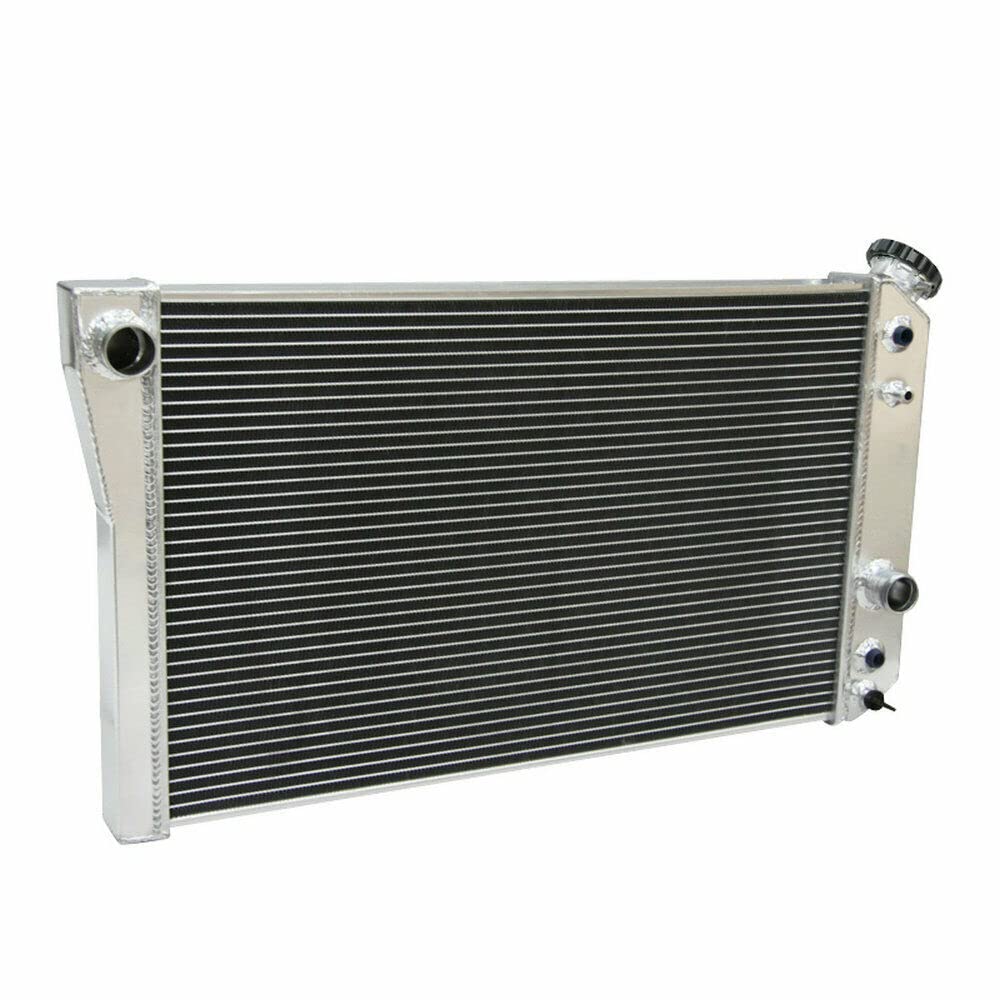

Vehicle Fitment For 1982-2002 Chevy S10/S-10 Blazer V8 Conversion 1984-1990 Chevy Corvette 5.7 V8 Manufacturer Part Number: 829,CC829,CU829,DPI829,MC829 AE829 EC829 Interchange Part Number: KKS829 SBR829 SPTCU829 Q829 Radiator Details Core Size: 23.500" x 15.750" Overall Size: 28.750" x 16.000" x 2.500" Inlet/ Outlet: 1.375"/ 1.375" Transmission Oilcooler: BUILD-IN OILCOOLER Mounting Type : pin Shroud Fan The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Listing Is Including: 1 X 3-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 10" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Direct Fit for Easy Installation Direct Bolt-On OE Fitment or Replacement. Notes: Installation instruction is not included. Professional installation is highly recommended! Why Choosing Us: 1. Covers vast selection of import and domestic applications 2. Stringently tested to guarantee optimum performance and dependability 3. Straightforward installation guaranteed 4. Aircraft 5057 grade aluminum and with raw aluminum finish 5. Made from high-grade materials for prolonged lifespan 6. CNC machined filler neck and cap 7. OEM style brass petcock drain
