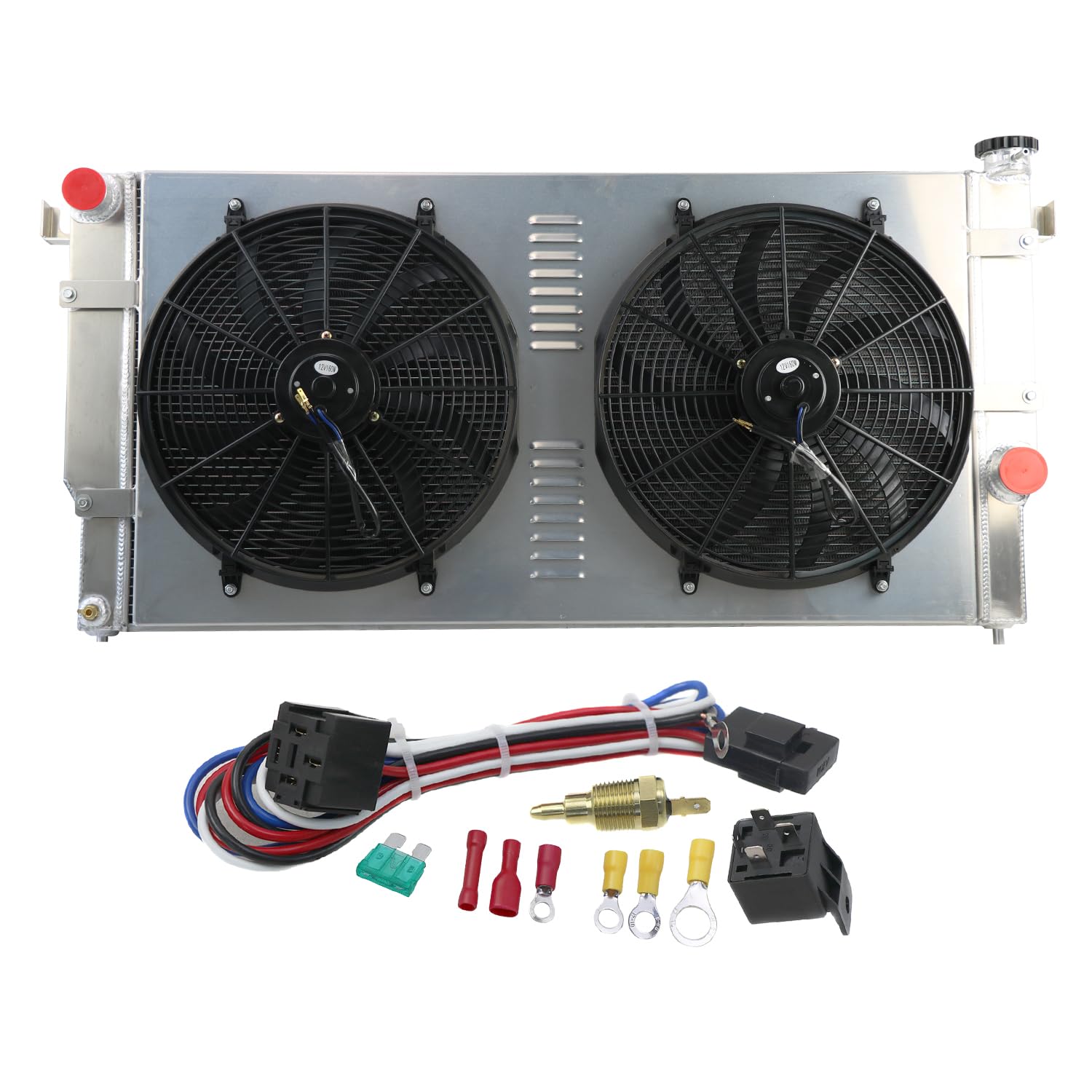

High-Performance Aluminum Radiator for 1994-2002 Dodge Ram 2500/3500 with 5.9L Cummins Diesel Engine - 3-Row Heavy Duty Cooling System with Shroud, Fan & Relay Kit (OE #CU1553) - Perfect for Off-Roading, Towing & Extreme Weather Conditions
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:8 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:33411192
Product Description

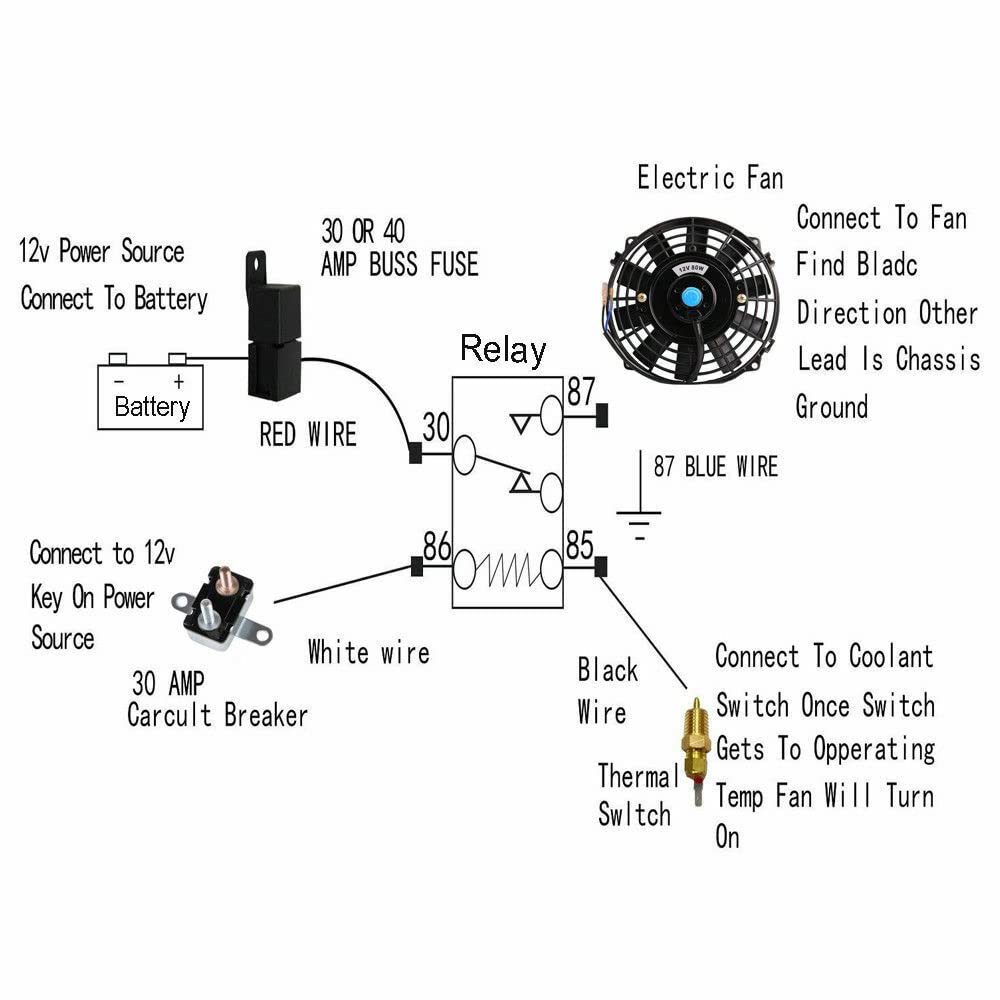

Application: 1994-2002 Dodge Ram 2500 5.9L L6 Diesel Pickup 1994-2002 Dodge Ram 3500 5.9L L6 Diesel Pickup for 5.9L Turbo diesel motors only Pls double check oem radiator core/overall size; inlet/outlet location before ordering Pls use Amazonconfirmedfit to confirm this radiator fit your vehicle before you order OE / Part #: 52006479, 52028900AC, 52028900AD, 52029169AA, 1553, DPI1553, CU1553 SC1553, SBR1553, 52030191AA, 52030191AB, 52030191AC, 52030191AD 16" Fan Spec: Voltage: DC 12 volts Maximum Fan CFM: 2150 Wattage: 120 wattage Thickness: 2.5 inch Number of Blades: 10 S-type blades Maximum Fan RPM: 2250 rpm Amp Draw: 10 amps Includes the mounting tabs for an easy zip tie installation Relay kit instruction: * Red to battery * White to ignition power * Black to the temp sensor * Blue to the fan Activates by grounding electric fans at preset temperature 180F / 165F turn on/off temperature Radiator Arrived Damaged? All aluminum radiator is easy got damage during shipping, we offer full refund or replacement if your order arrived damaged. (clear pics of damaged radiator and packing box is required before we resend or refund) Radiator Leaking/Not Working after Installed? 12 Months warranty. (clear pics of leaking details is required before we offer solution) Contact us if you have any question! Your message will be replied within 12 hours!
Product Features

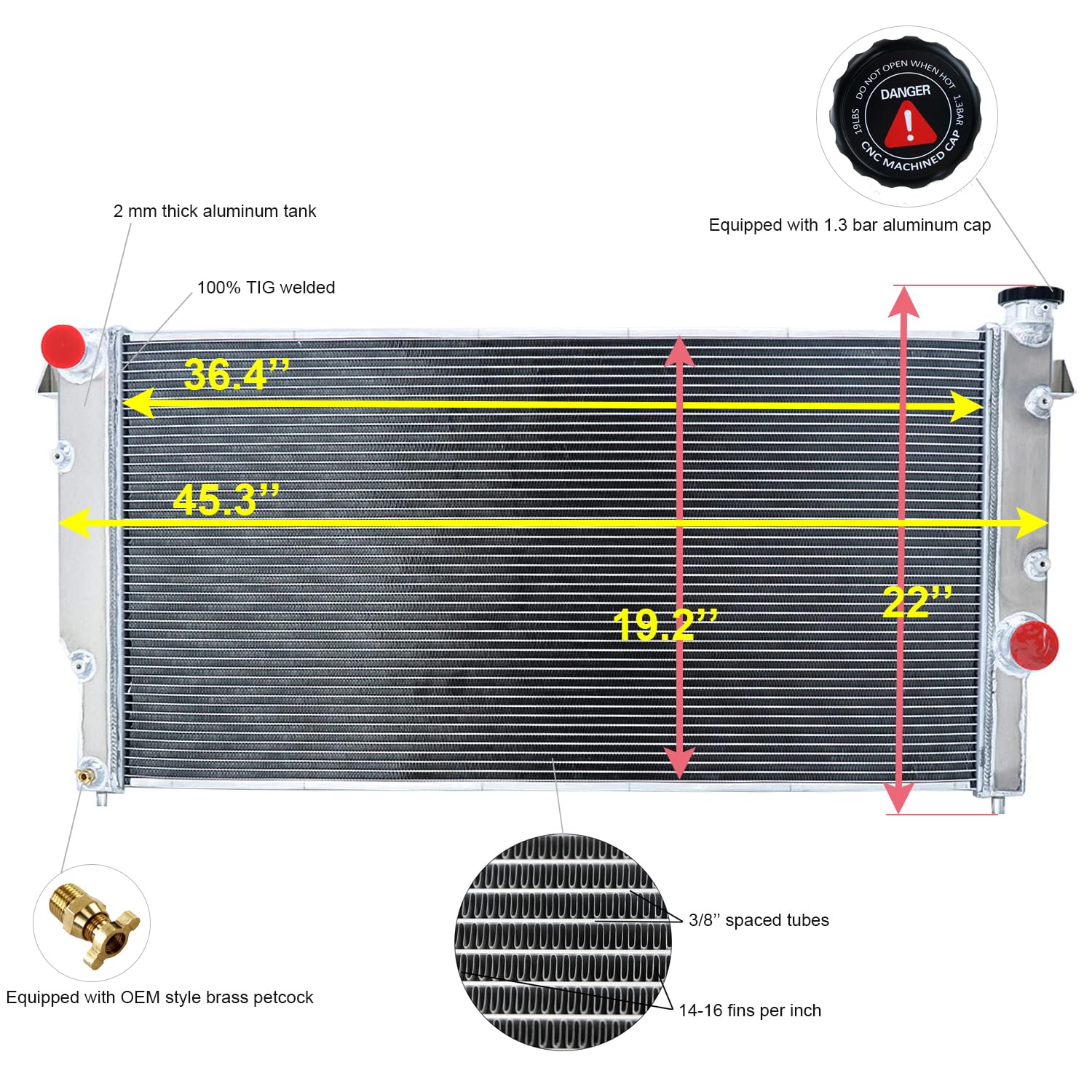

Core/Overall Size (Inch) 19.2 x 36.4 x 1.73 / 22 x 45.3 x 5.7 ; 3 row cores
Inlet/Outlet Diameter (Inch) 1.75 / 2 ; Inlet/Outlet at driver / passenger side
Leak/durability tested; No drilling or modifications needed for installation
Complete aluminum radiator assembly with no plastic end tanks or rubber gaskets

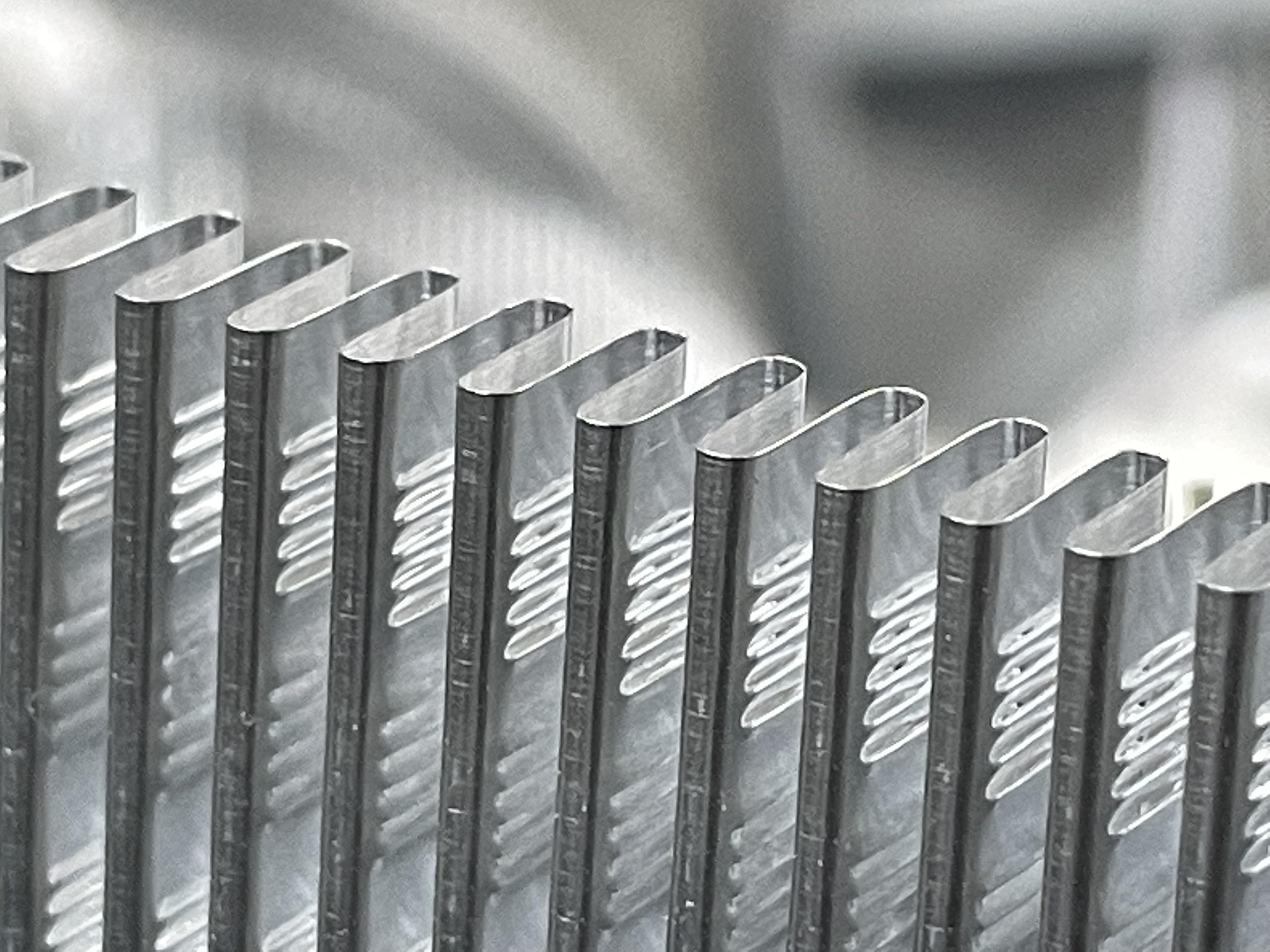

Louvered core fins increase airflow and accelerate heat transfer to keep your engine running cool
Buy with no worry-12 months warranty
Factory sized cooling hose inlet and outlet connections

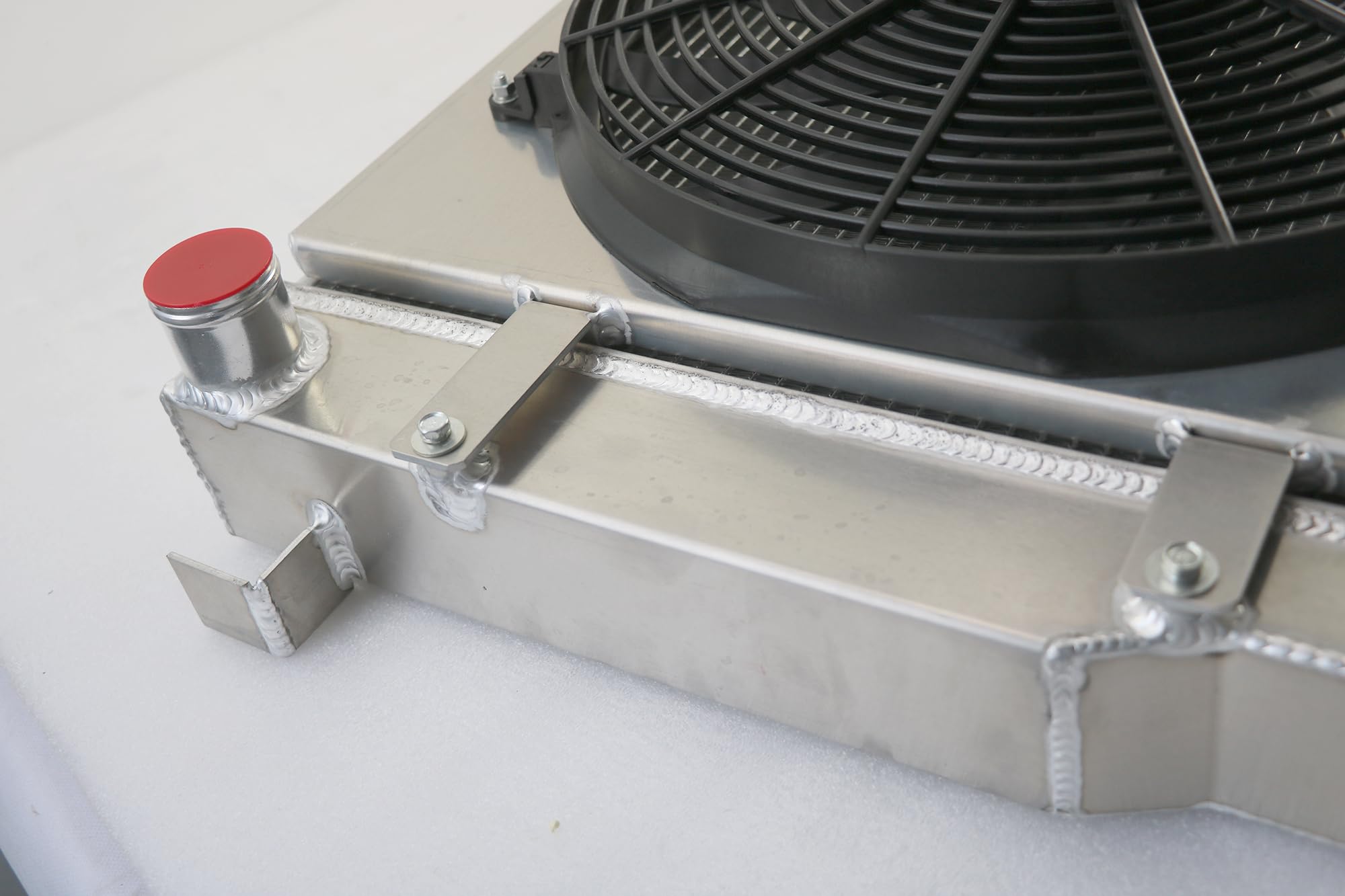

Controlled atmosphere furnace brazed core with TIG welded tanks and brackets
Radiator features factory style mounting brackets
Higher capacity for coolant than original radiator
