4 Row Aluminum Radiator with Shroud Fan & Relay Kit - Compatible with 1963-1966 Chevy C10 C20 C30 K10 K20 Pickup, Suburban Truck, Pontiac Catalina Bonneville Grand - Full Aluminum Cooling System Upgrade for Hot Weather & Heavy Duty Towing
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:15 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:24439516
Product Description

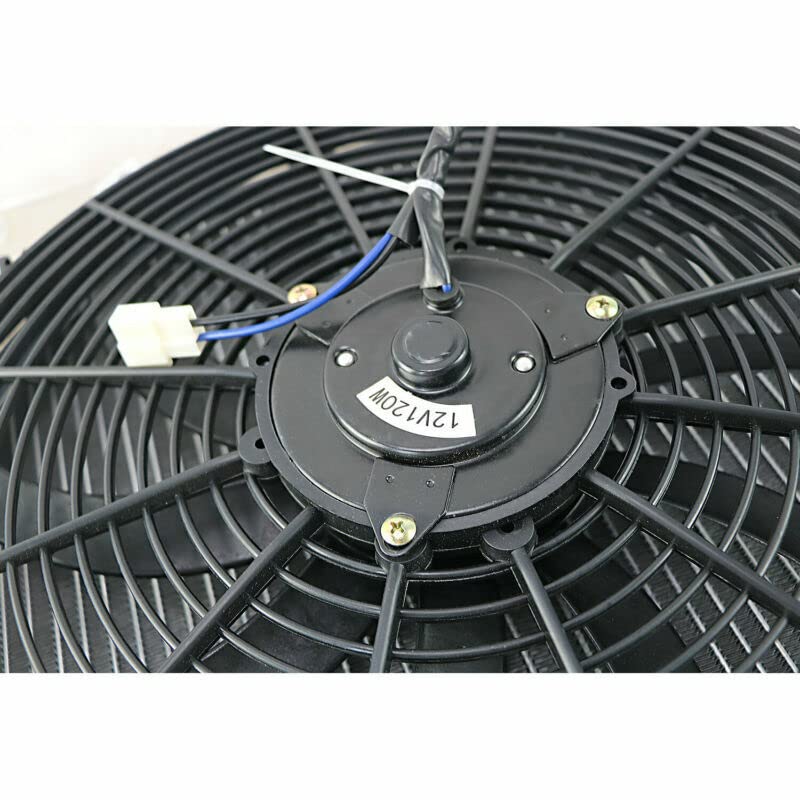

Radiator Size: Row: 4 Row-Core Material: Full Aluminum Core Size: 17-1/2"H x 25-1/4"W x 2 3/4"T Overall Size: 23-3/8" H x 25-1/2" W Upper inlet: 1-3/4" located on the DRIVER side. Lower outlet: 1-3/4" located on PASSENGER side. Trans cooler: BUILD-IN Mount System: Saddle Mount Fans Details： Maximum Fan CFM: 2000±200 cfm Fan Diameter (in): 16.050" Thickness (in): 2.500" Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Thermostat Kit: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. Vehicle Fitment: Compatible For Oldsmobile 1961 1962 Olds Dynamic Compatible For 63-66 CHEVY TRUCK PICKUP SUBURBAN 1963-1966 Compatible For Oldsmobile 61-62 Compatible For CHEVY PICKUP SUBURBAN 63 64 65 66 Compatible For Pontiac Bonneville 61-66 Compatible For Chevy Truck C10 C20 C30 63-66 Compatible For CHEVY TRUCK C/K SERIES/PONTIAC PICKUP 61-66 Compatible For CHEVY GM C/K Truck 61-66
Product Features
♥Compatible For 1961 1962 1963 1964 1965 1966 Chevy C10 C20 K10 K20 K30 Pickup
♥Core Size 17-1/2"H x 25-1/4"W x 2 3/4"T / Overall Size 23-3/8" H x 25-1/2" W

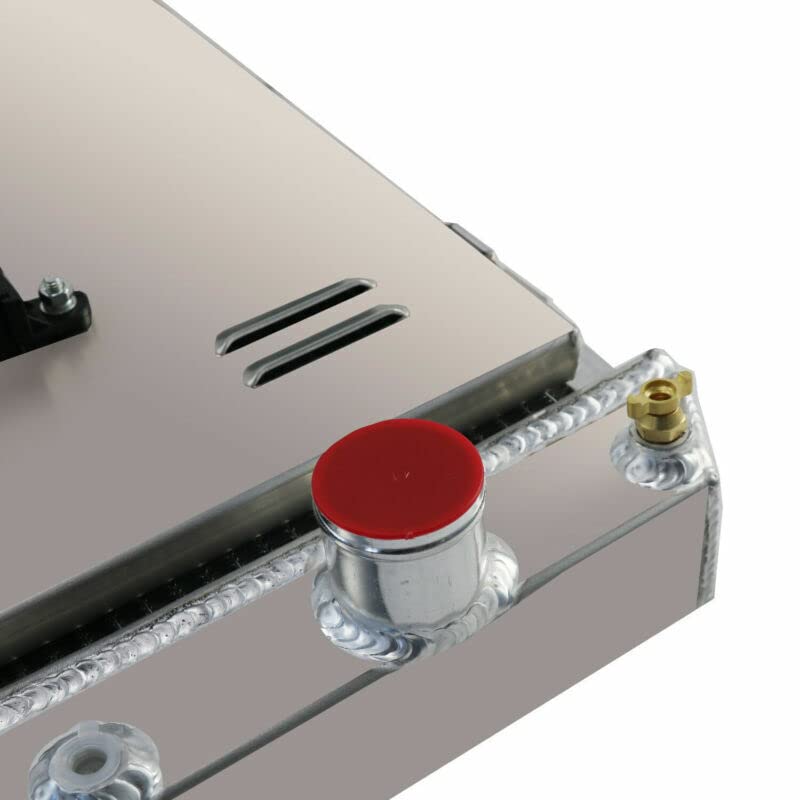

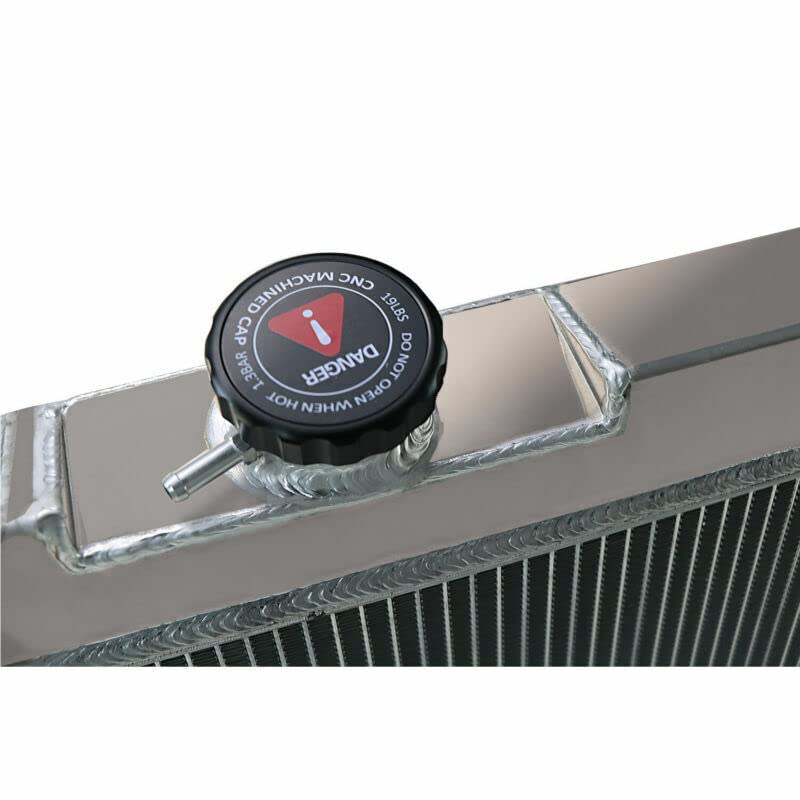

♥Full aviation-aluminum craftsmanship, 100% welded by TIG; Trans cooler Build-In; Trans Oil Cooler ￠22*300*G1/4(Z) ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain.
♥Racing design/improves cooling by 35 -45% temp;Direct Bolt-On OEM Fitment or Replacement
♥ 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation
Customer Reviews
Replace clogged radiator on mid 60 to 78 Heinz 4x4 pickup truck. With the electric fan and wiring kit, new water pump, thermostat, and engine flush the entire cooling system has been rebuilt. Time will tell.
