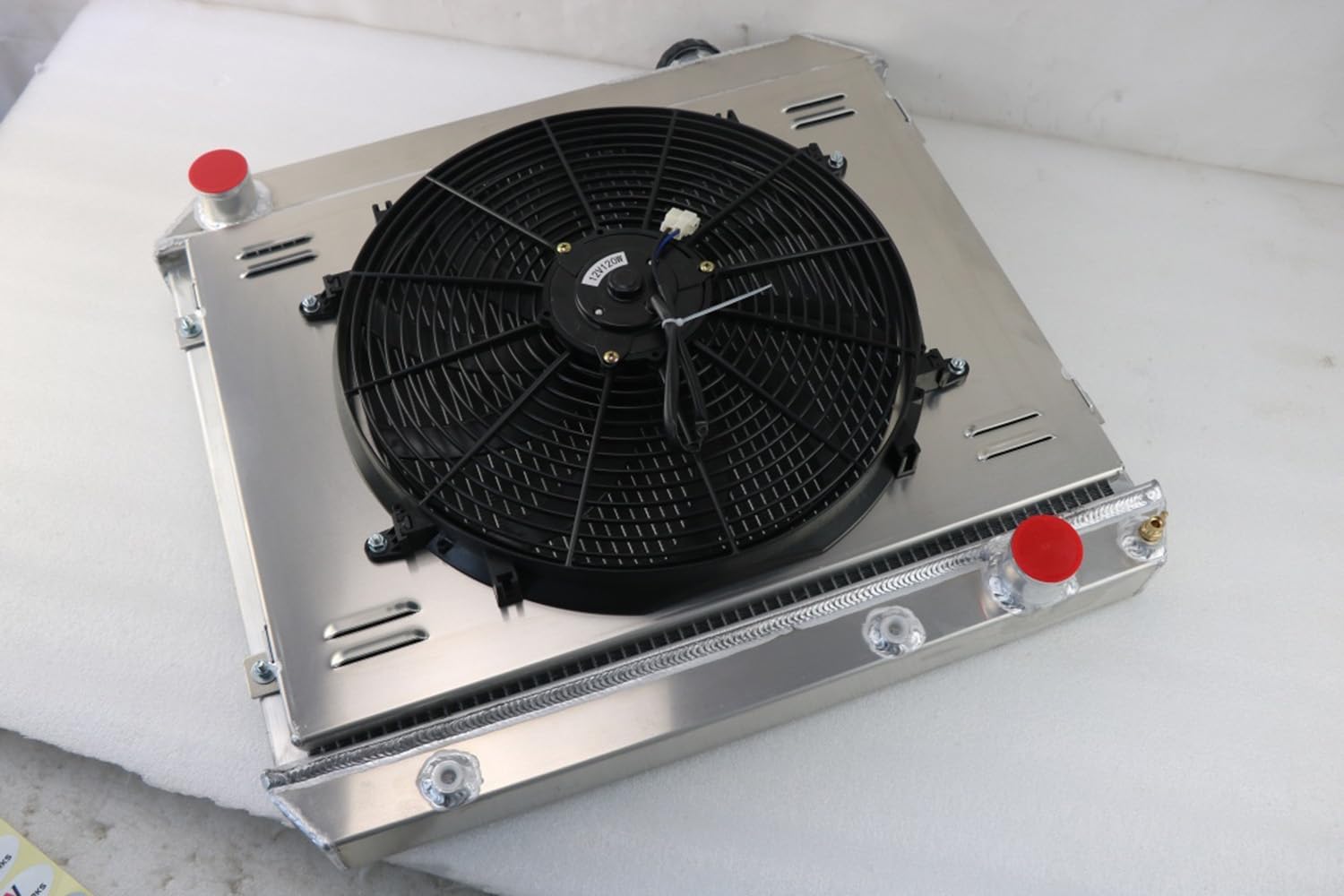

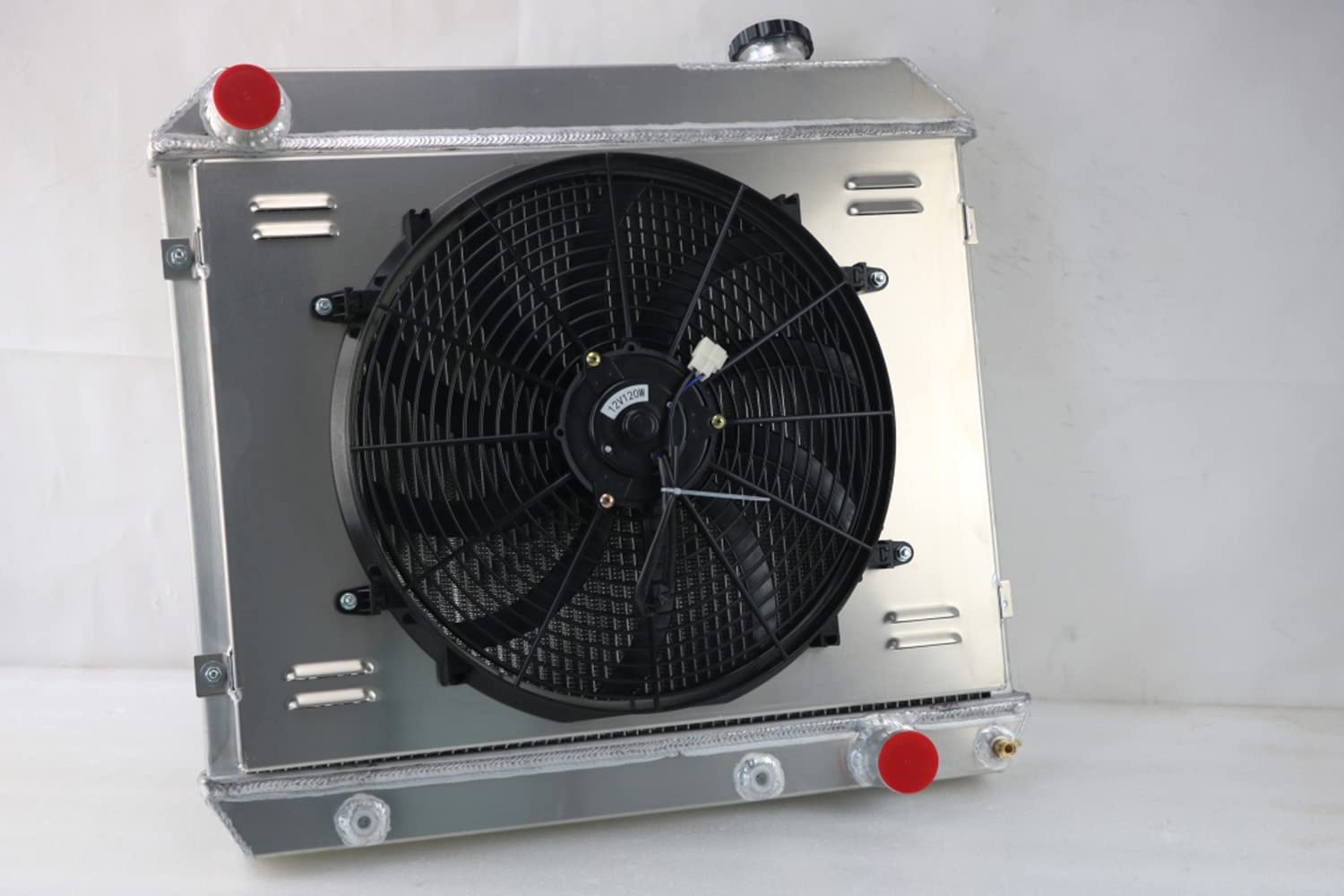

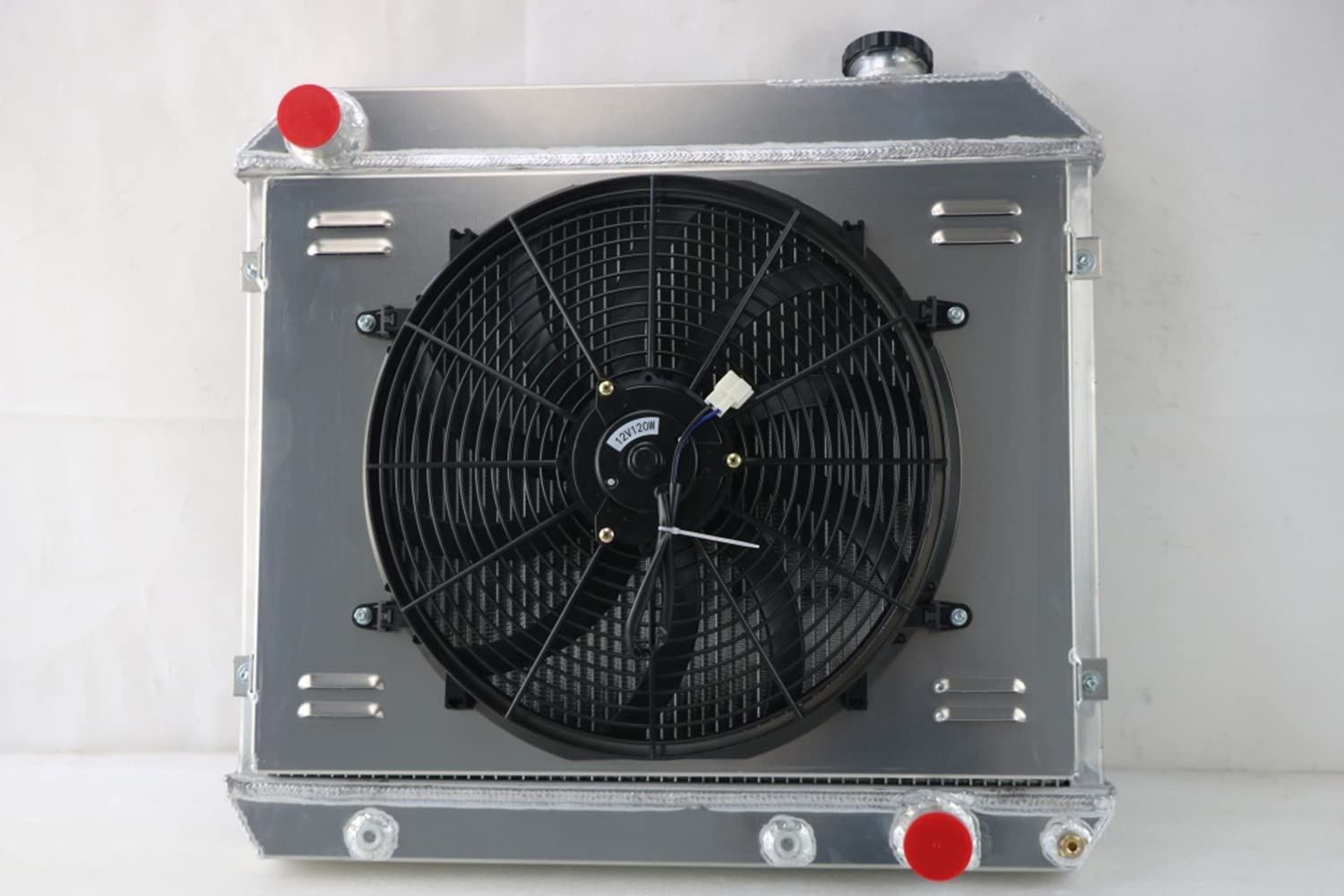

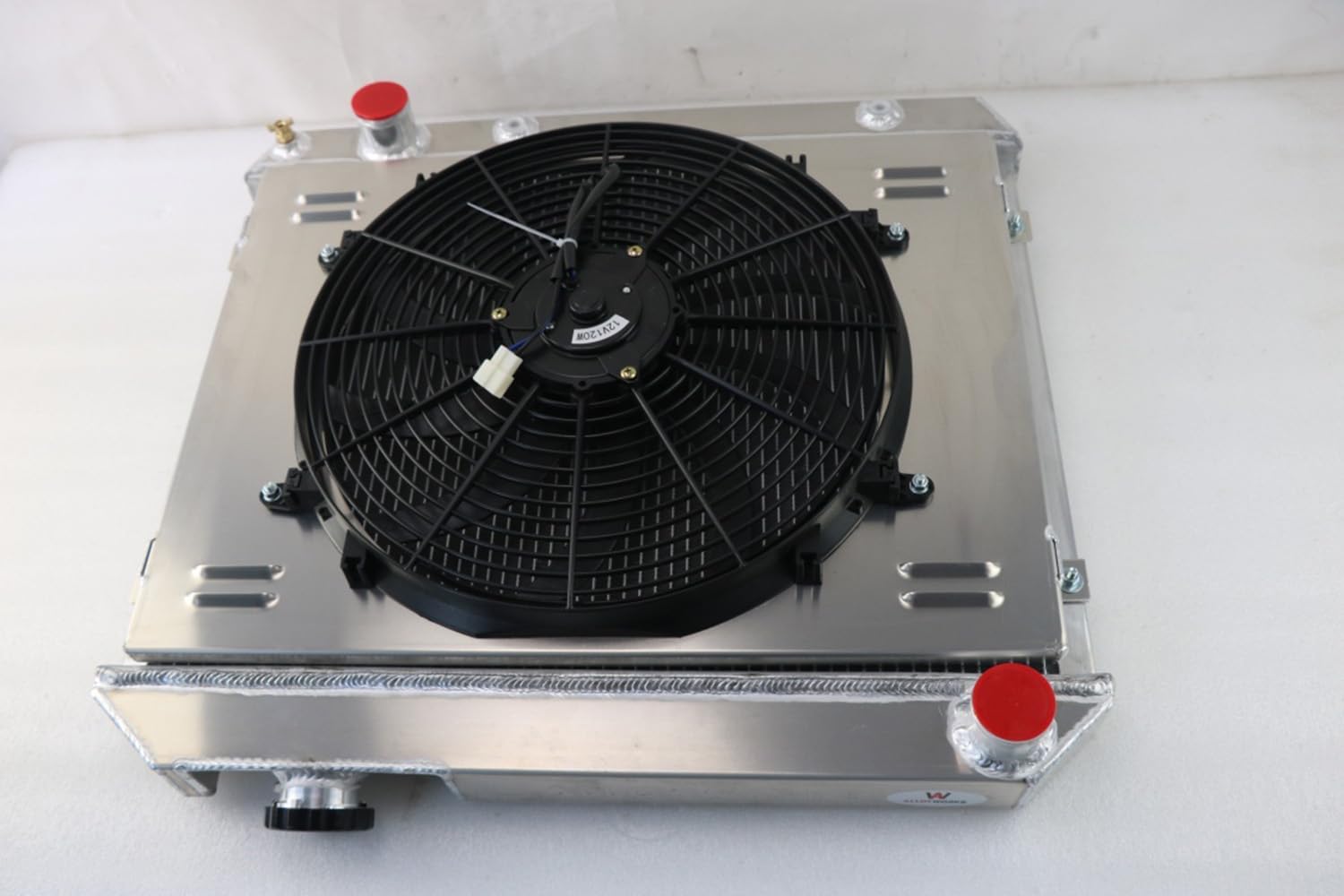

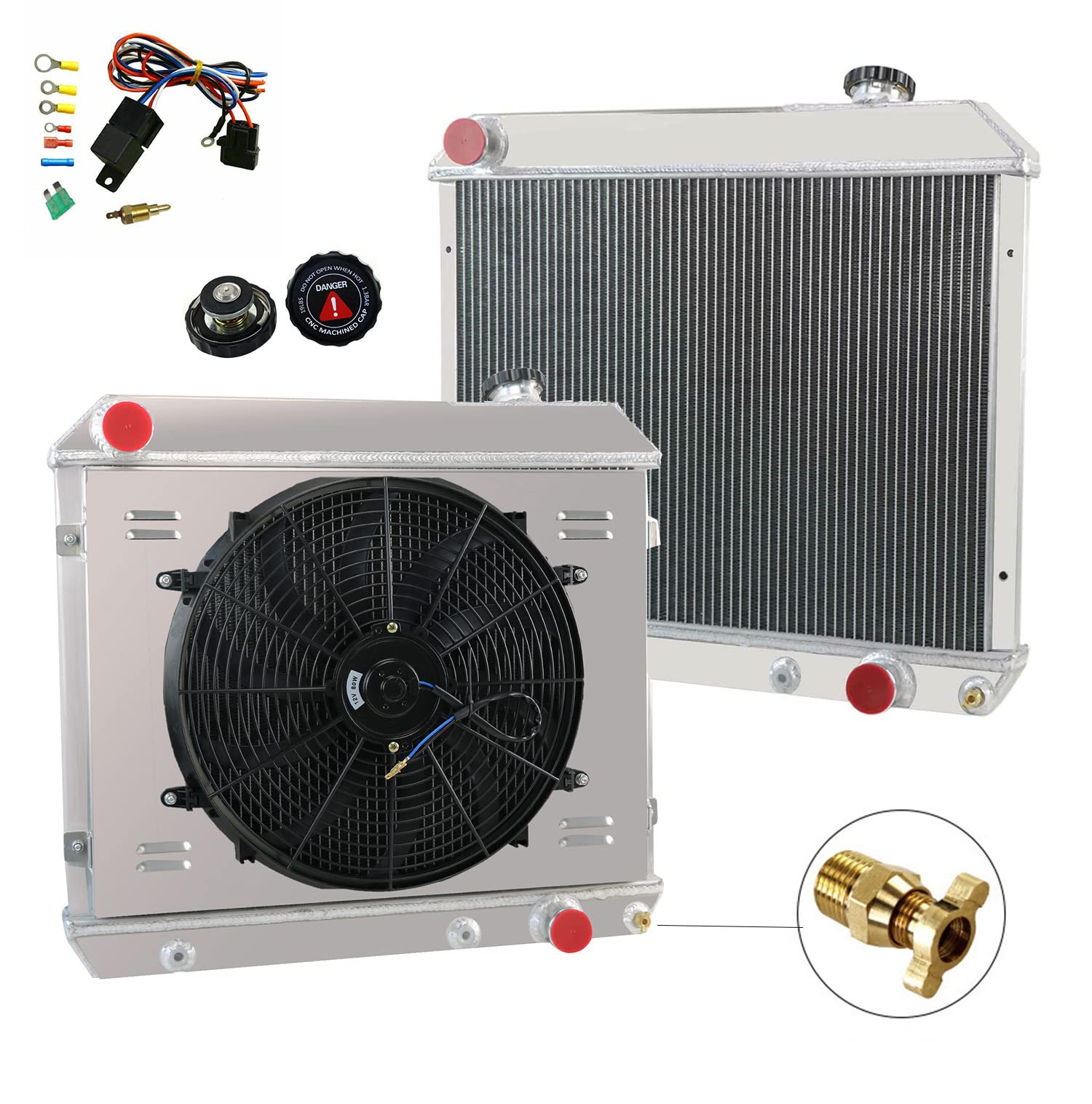

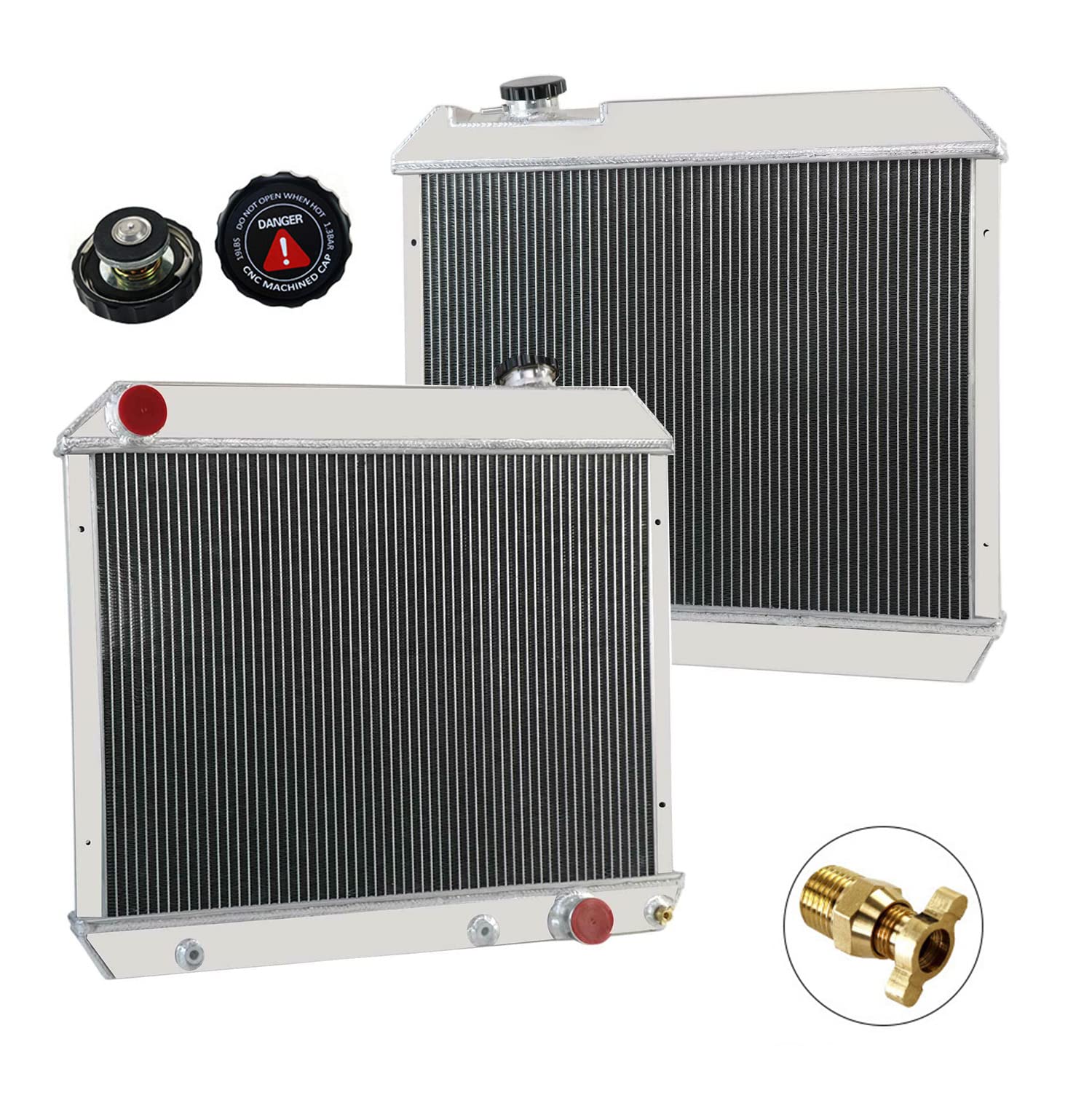

High-Performance 3-Row Full Aluminum Radiator with Fan Shroud & Relay Kit - Compatible with Cutlass F85 64-66, Chevy Truck C/K Series 10/20/30 63-66, GMC 1000/1500/2500 Series 65-66 - Perfect for Engine Cooling & Restoration Projects

Product Description

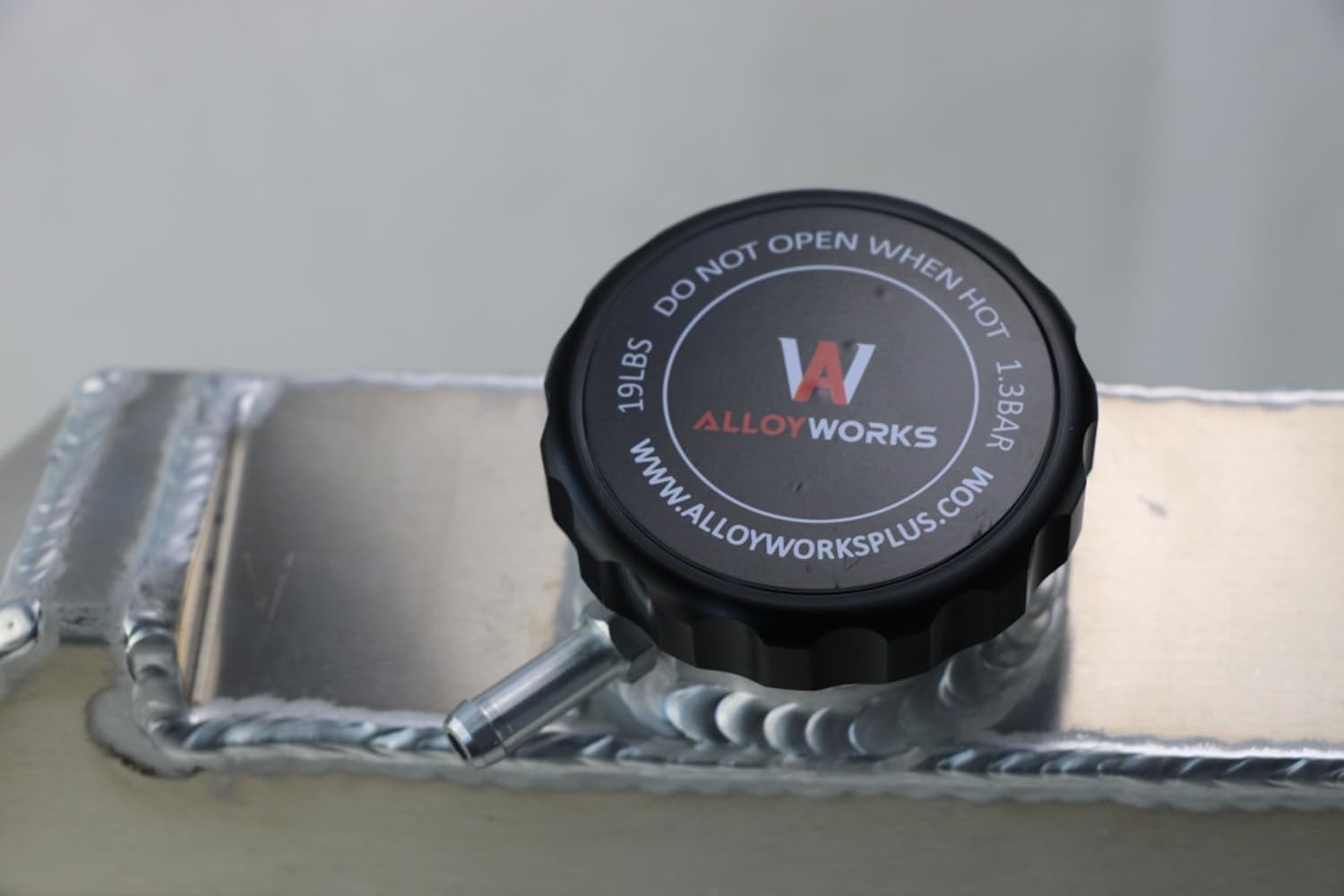

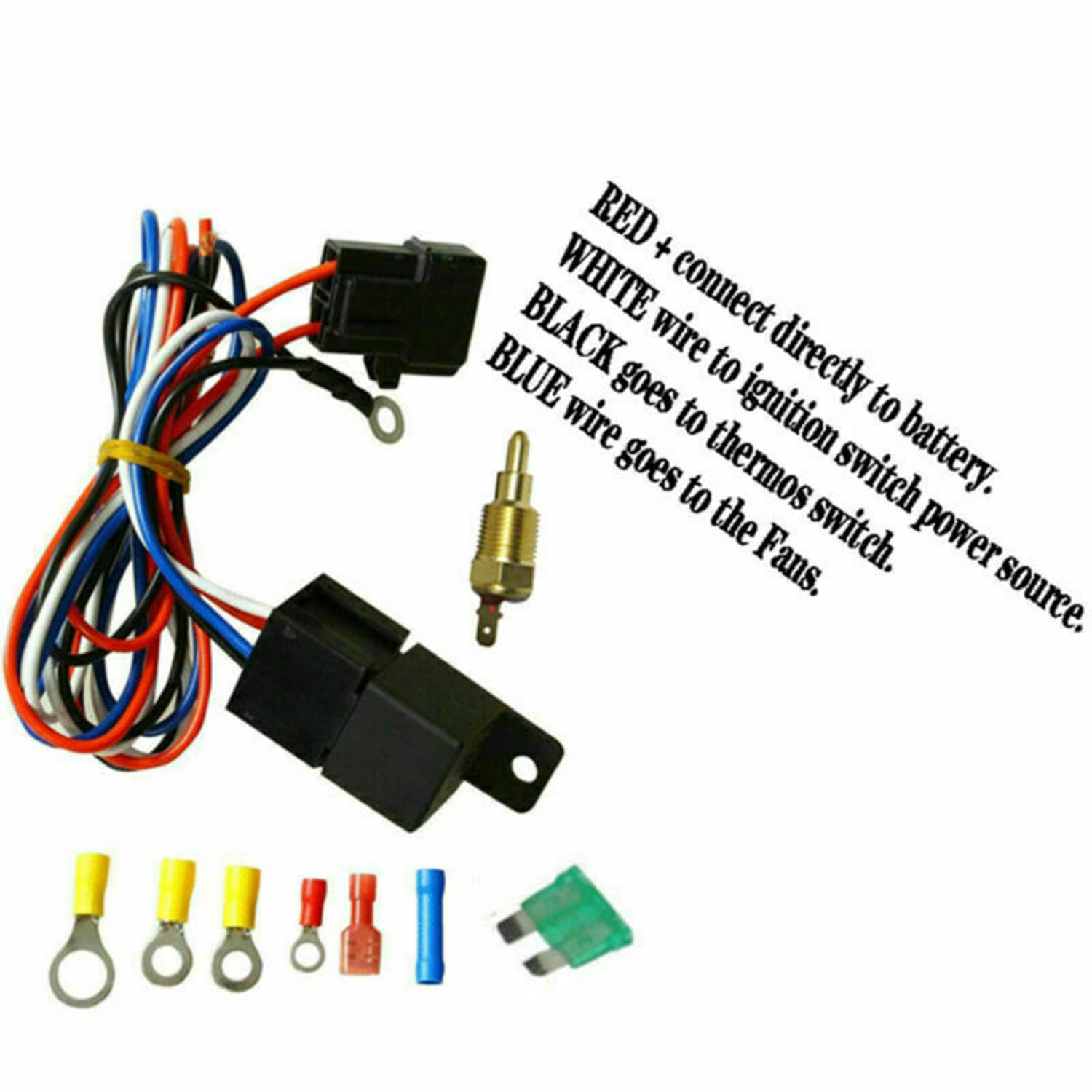

Radiator Specifics: Condition: 100% Brand New Material: Aircraft AA5052 grade aluminum tank & core Row: 3 Row Core Size: 17.4'' H x 22.8'' W x 1.73'' Thickness Overall Size: 23.2''H x 24.8''W x 5.7'' T Inlet Diameter: 1.77 inch Driver Side Outlet Diameter: 1.77 inch Passenger Side Transmission Oil Cooler: 22x300xG1/4(Z) OEM Style Brass Petcock Drain CNC Machined Filler Neck and Cap Fan Spec: Maximum Fan CFM: 2000±200 Fan Diameter (in): 16.050 inches Thickness (in): 2.790 inches Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1961-1966 Pontiac Bonneville/Catalina 6.4L 6.9L V8 1962-1964 Pontiac Grand Prix 6.4L 6.9L V8 1961-1964 Pontiac Star Chief (4.3L L6) (6.4L 6.9L V8) 1966 GMC 1000/1500/2500 4.1L L6 1965 GMC 1000/1500/2500 Series (3.8L 4.8L L6) (5.0L 5.7L V6) 1966 GMC G1000 Series (2.5L L4) (3.2L 3.8L L6) 1963-1966 GMC Suburban (2.5L L4) (3.8L 4.1L 4.8L L6) (4.6L V8) (5.0L 5.7L V6) 1963-1966 Chevy C10/30 Panel (3.8L 4.1L L6) 1963-1966 Chevy C10/20/30 K10/20 Pickup (3.8L 4.1L 4.8L L6) (4.6L 5.3L V8) 1963-1966 Chevy Suburban (3.8L 4.8L L6) (4.6L V8) PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order.
