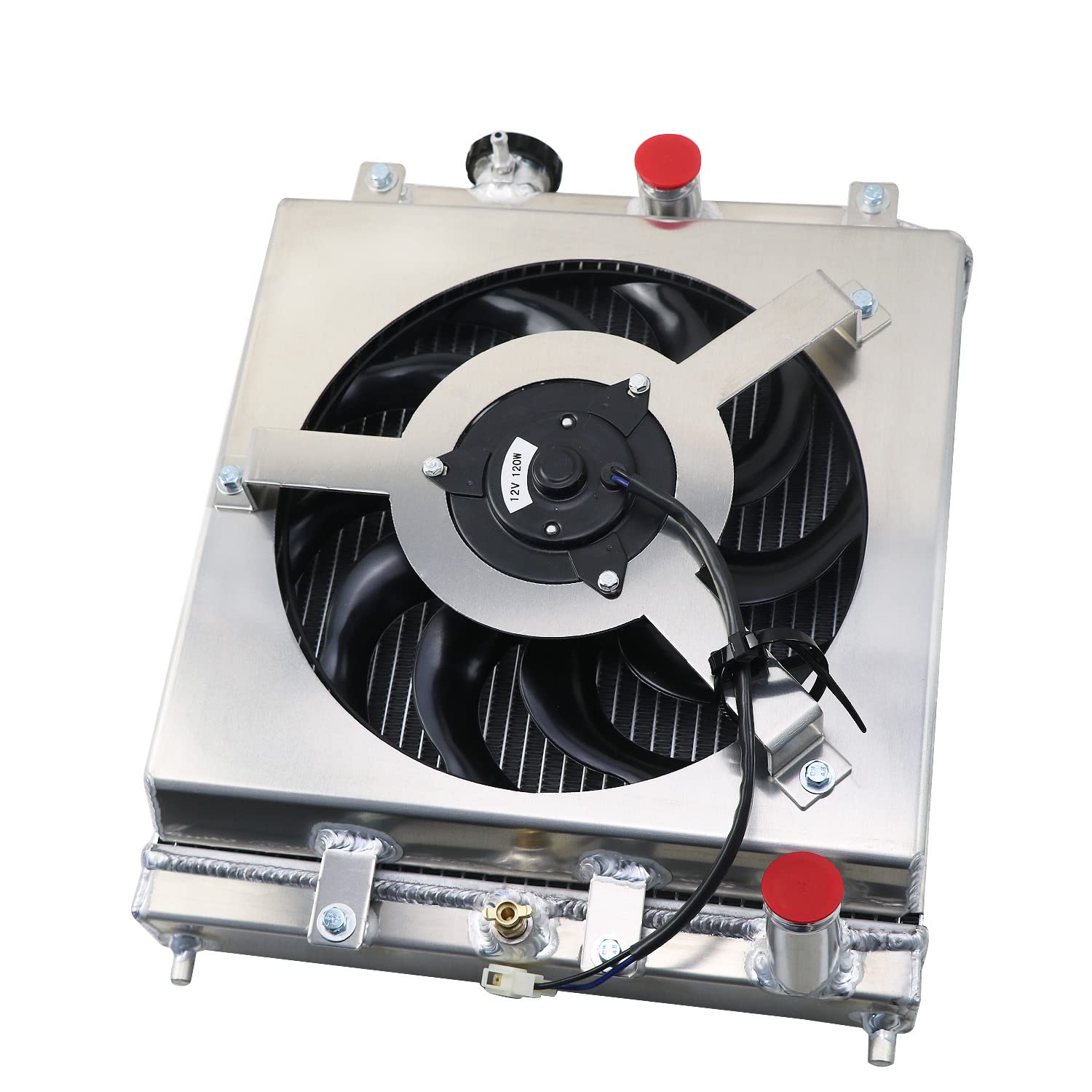

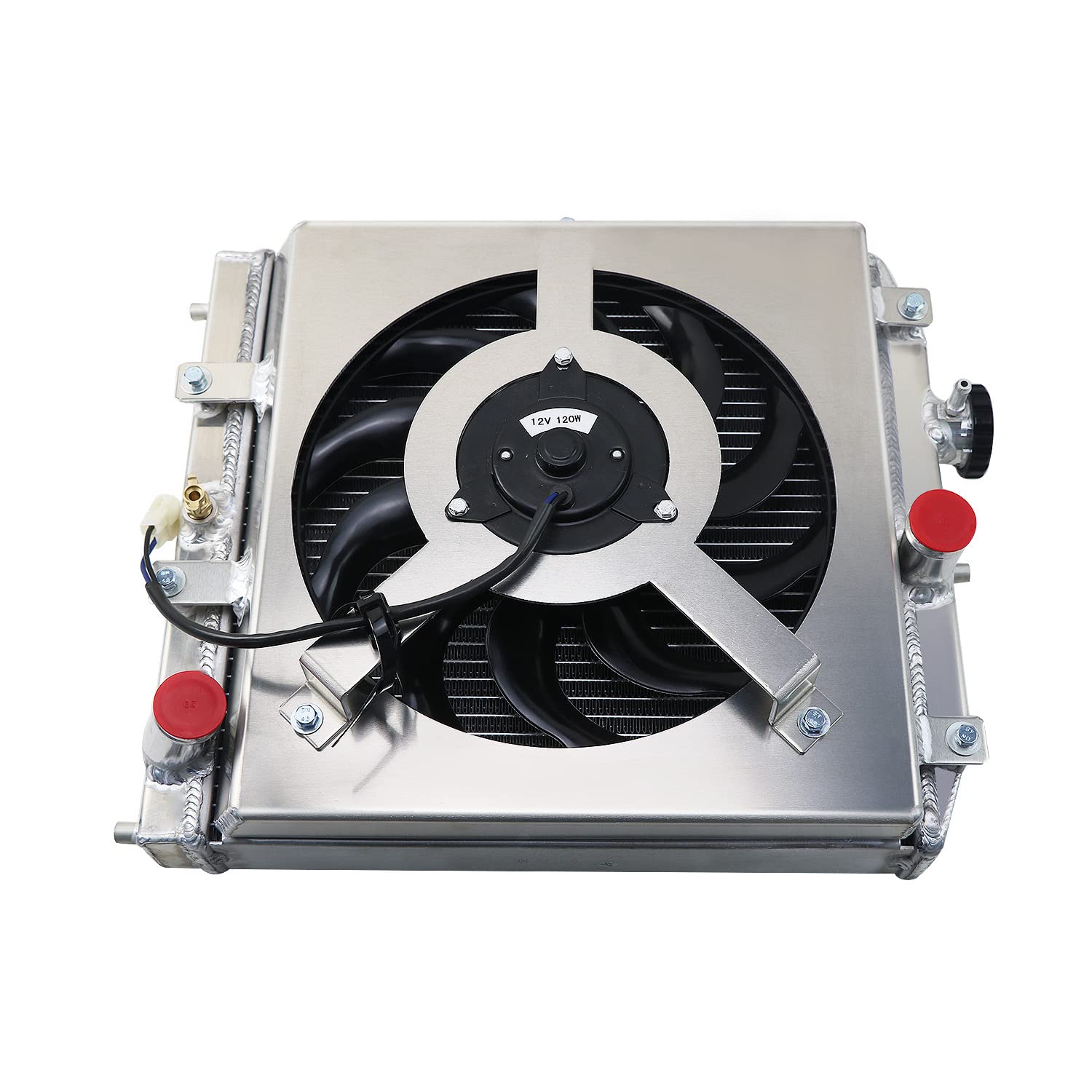

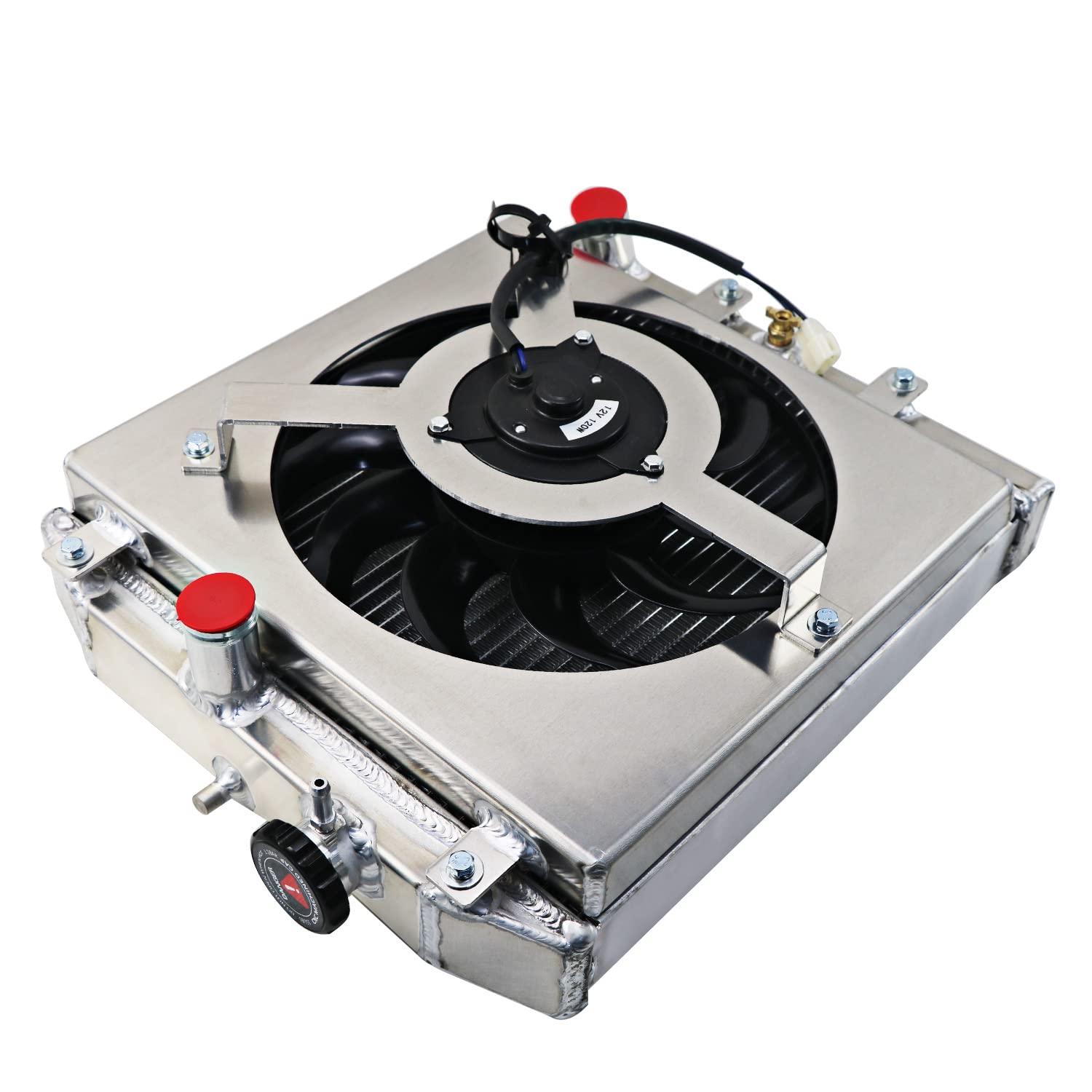

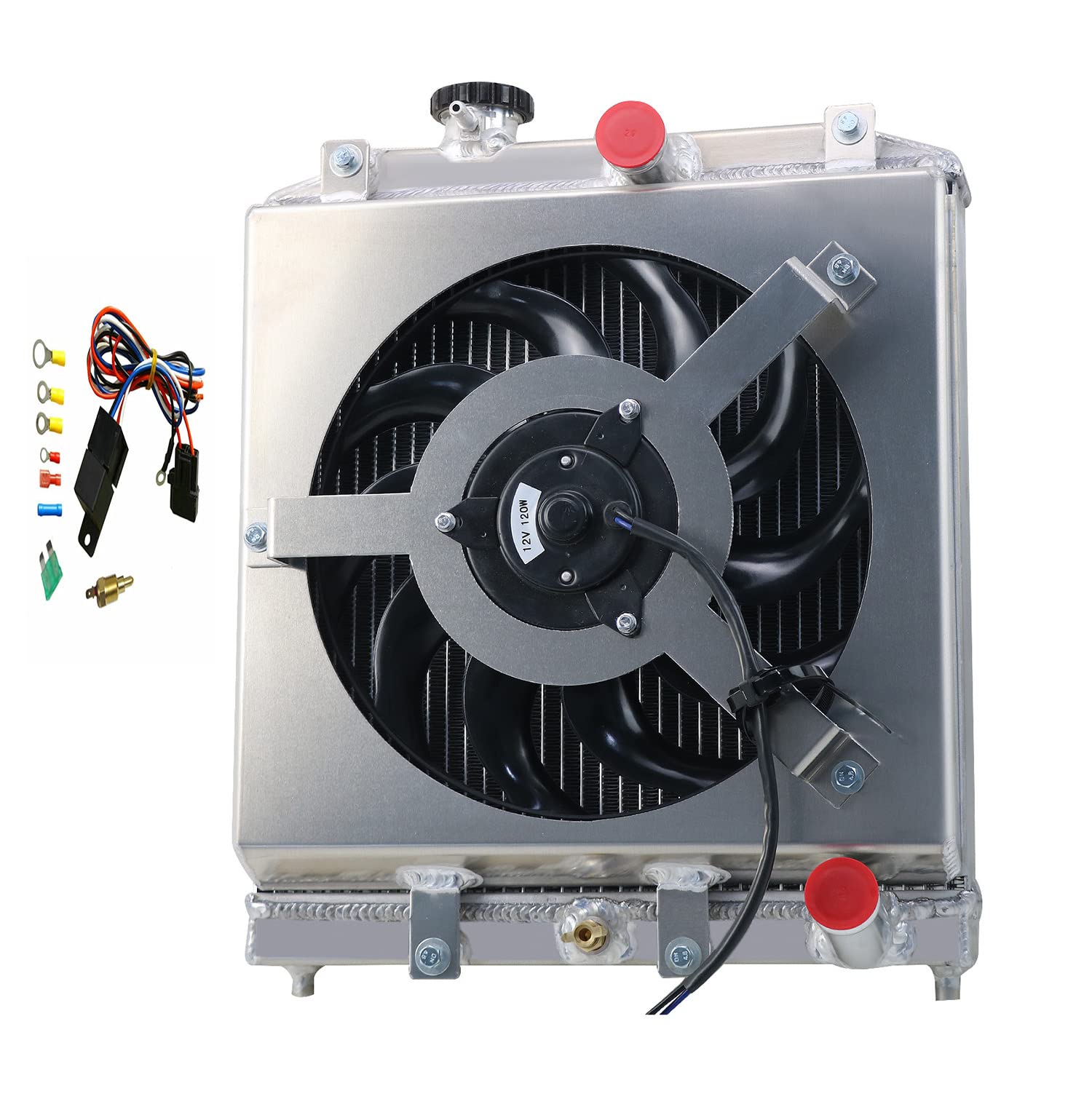

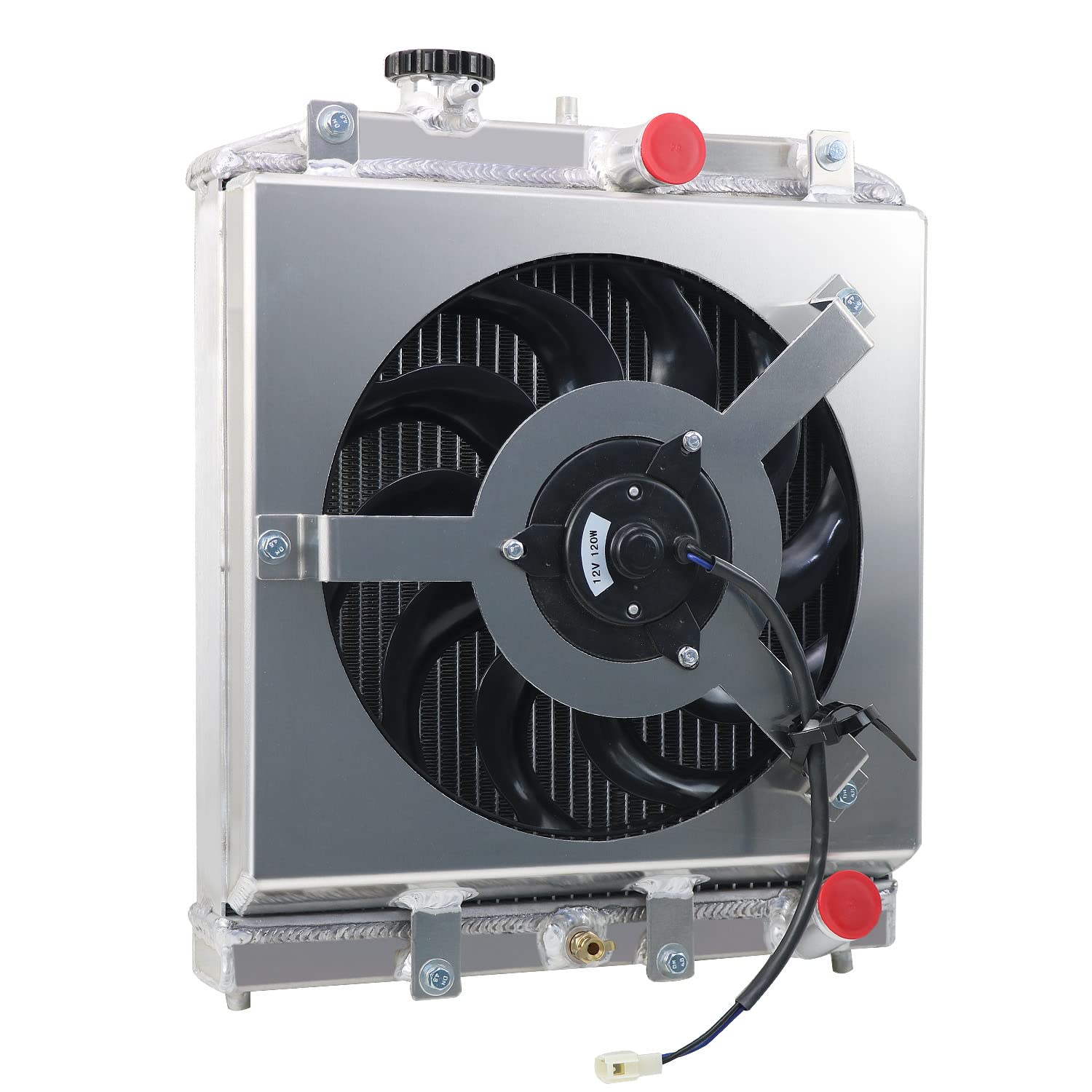

High-Performance 3-Row Aluminum Radiator for 1994-2001 Acura Integra 1.8L & 1992-2000 Honda Civic 1.5L/1.6L - Complete Cooling Kit with 12" Fan, Shroud & Thermostat Relay - Perfect for Street Racing & Daily Driving Upgrades

Product Description

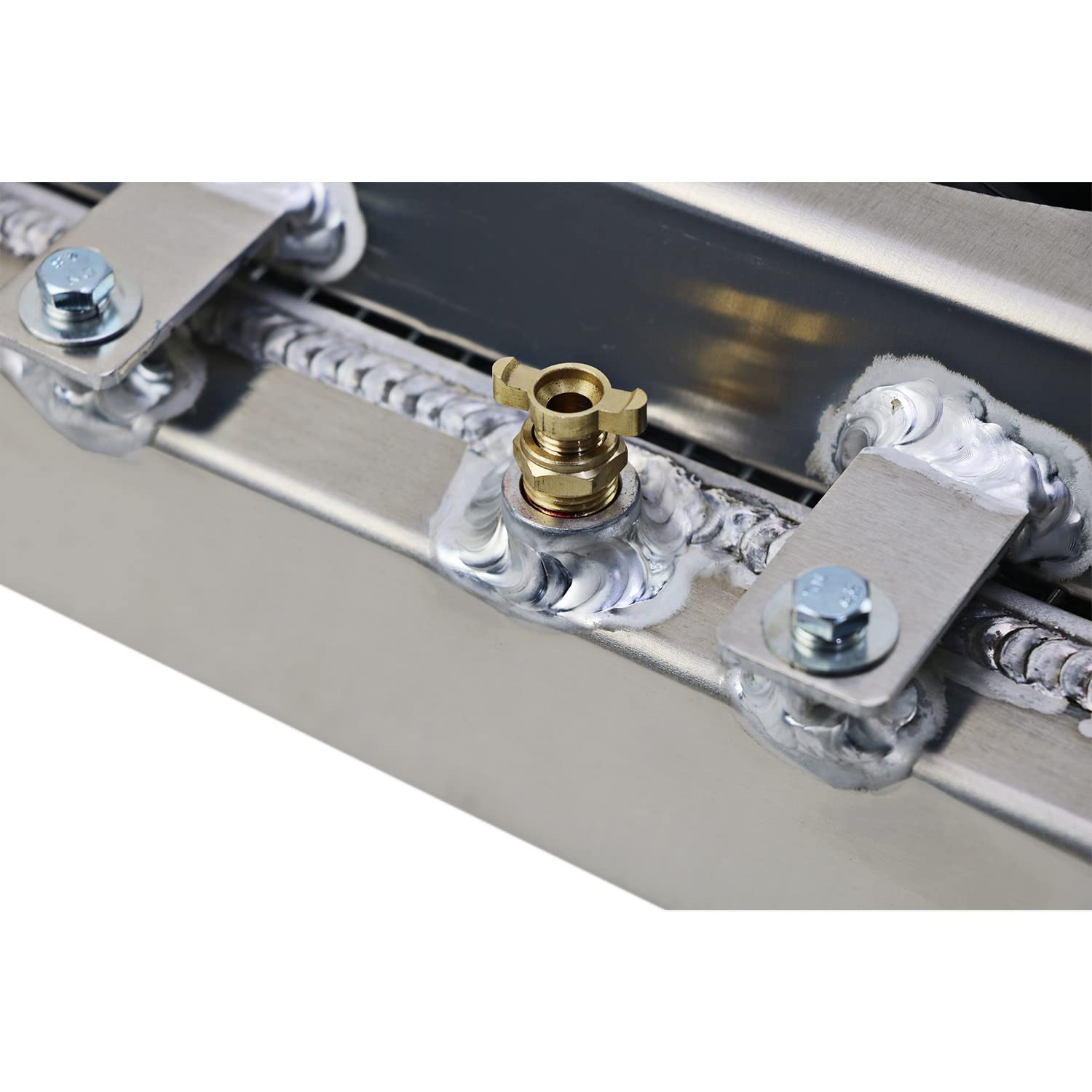

Radiator Specifics: Condition: 100% Brand New Material: Aircraft T-5052 grade aluminum tank & core Row: 3 Row Core Size: 14.1'' H x 13.8'' W x 1.73'' Thickness Overall Size: 18.3''H x 14.4''W x 5.5'' T Upper Inlet: 1.26 inch located on the passenger side Lower Outlet: 1.26 inch located on passenger side CNC machined filler neck and cap OEM Style Brass Petcock Drain Fan Spec: Maximum Fan CFM: 2300±200 FAN Diameter: 12.05" X 12.05" X 2.5" Number of Blades: 10 blades (Plastic) Amp Draw: 12.70 amps Maximum Fan RPM: 2,250 rpm Thermostat Relay Kit Instructions: Activates by grounding electric fans at preset temperature. 180'F/165'F turn on/off temperature. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. This Radiator Compatible with: 1992-2000 Honda Civic EH1 - EH9/ EJ8/ EJ7/ EJ6/ EM1 MT 1993-1997 Honda Del Sol EG MT 1994-2001 Acura Integra DB/ DC1/ DC2 MT (HALF SIZE) Fits Models with Manual Transmission and D15 D16 B16 B18 Engines Only PLS check more detailed vehicle information by AmazonConfirmedFit to confirm this radiator fit your vehicle before you order. Shroud+Fans The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
