High-Performance 4 Row Aluminum Radiator for 1963-1968 Chevy Impala, Chevelle, Bel Air, Caprice & 64-67 El Camino - Compatible with L6 & V8 Engines - Includes Shroud, Fan & Relay Kits - Perfect for Classic Car Restoration & Hot Rod Upgrades
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:11 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:17468193
Product Description

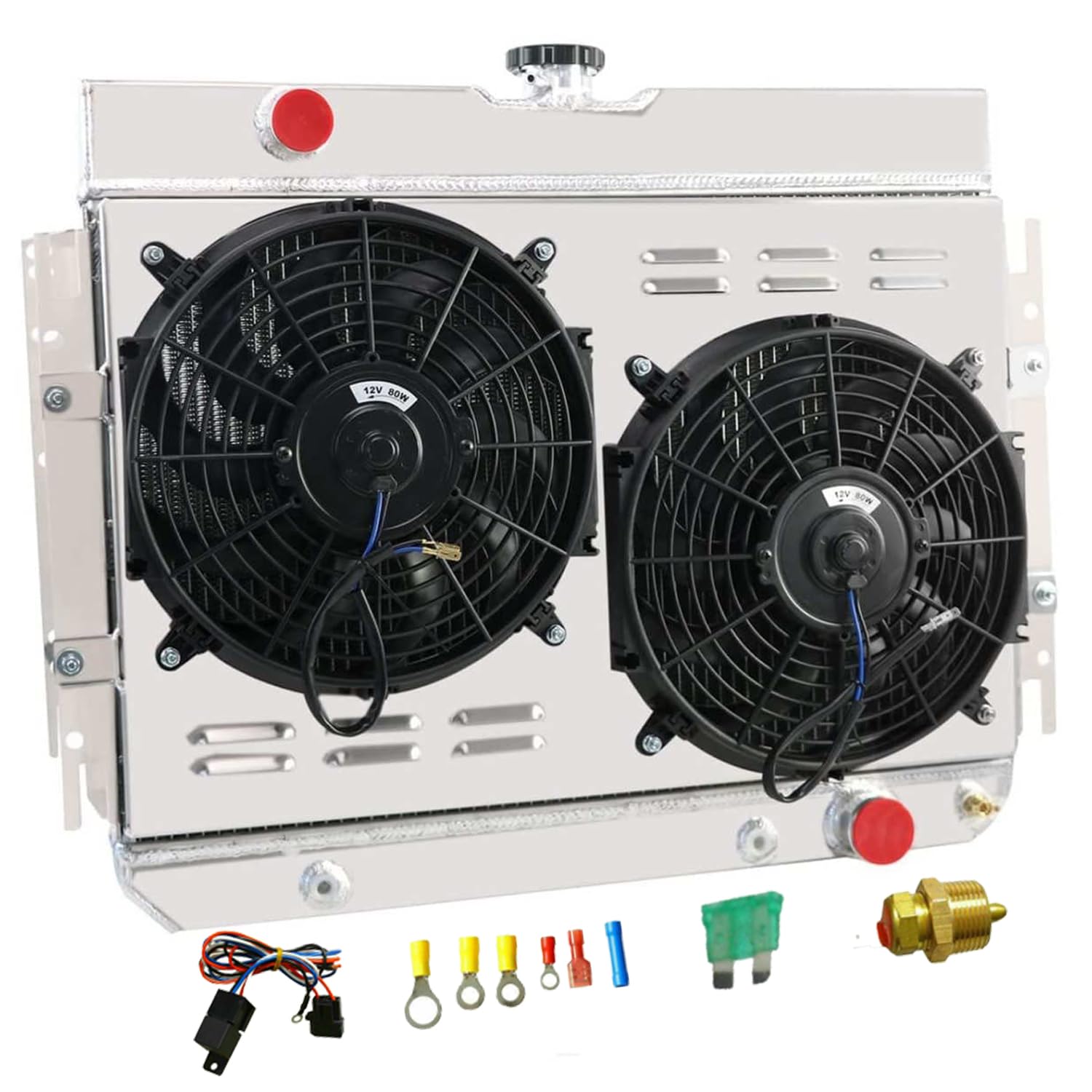

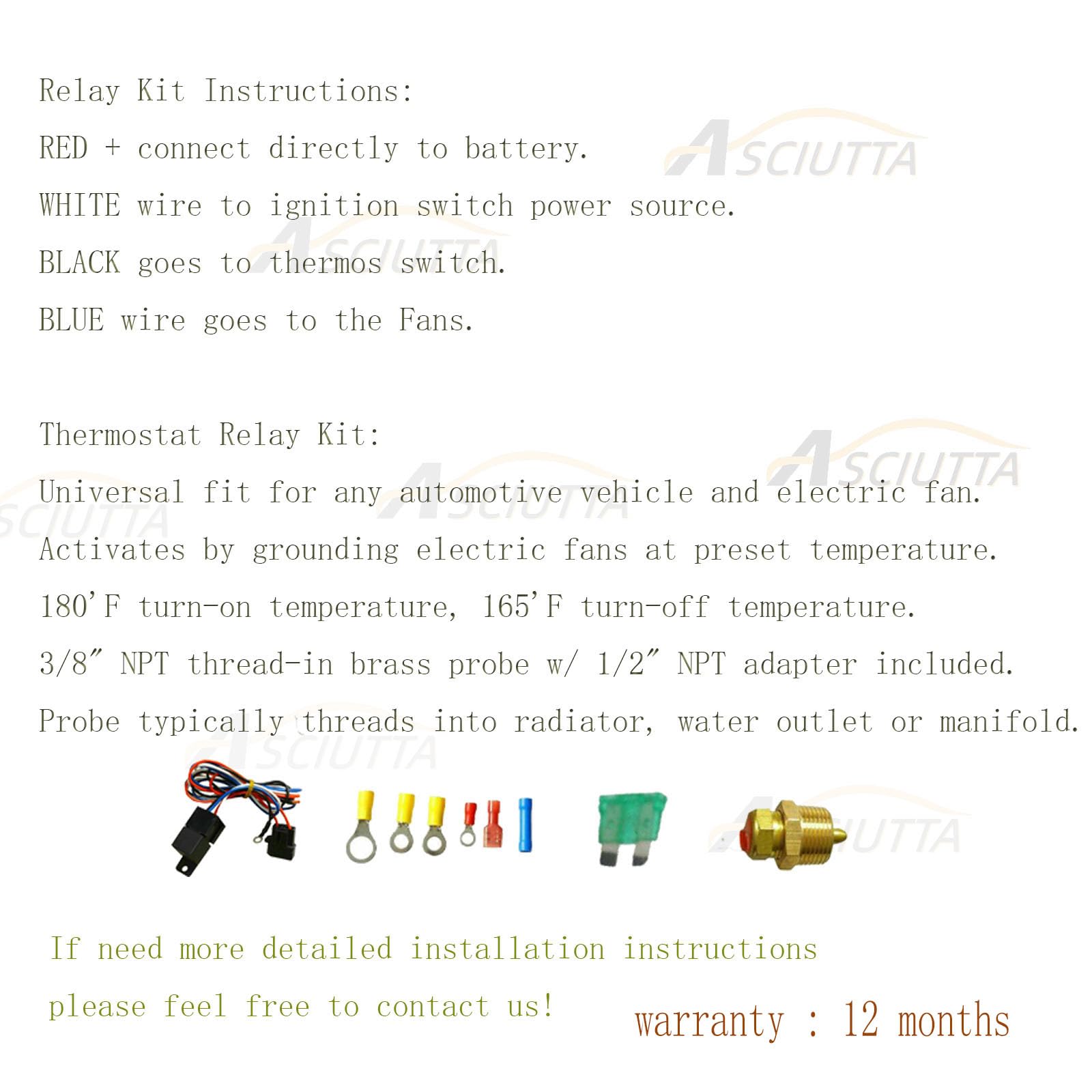

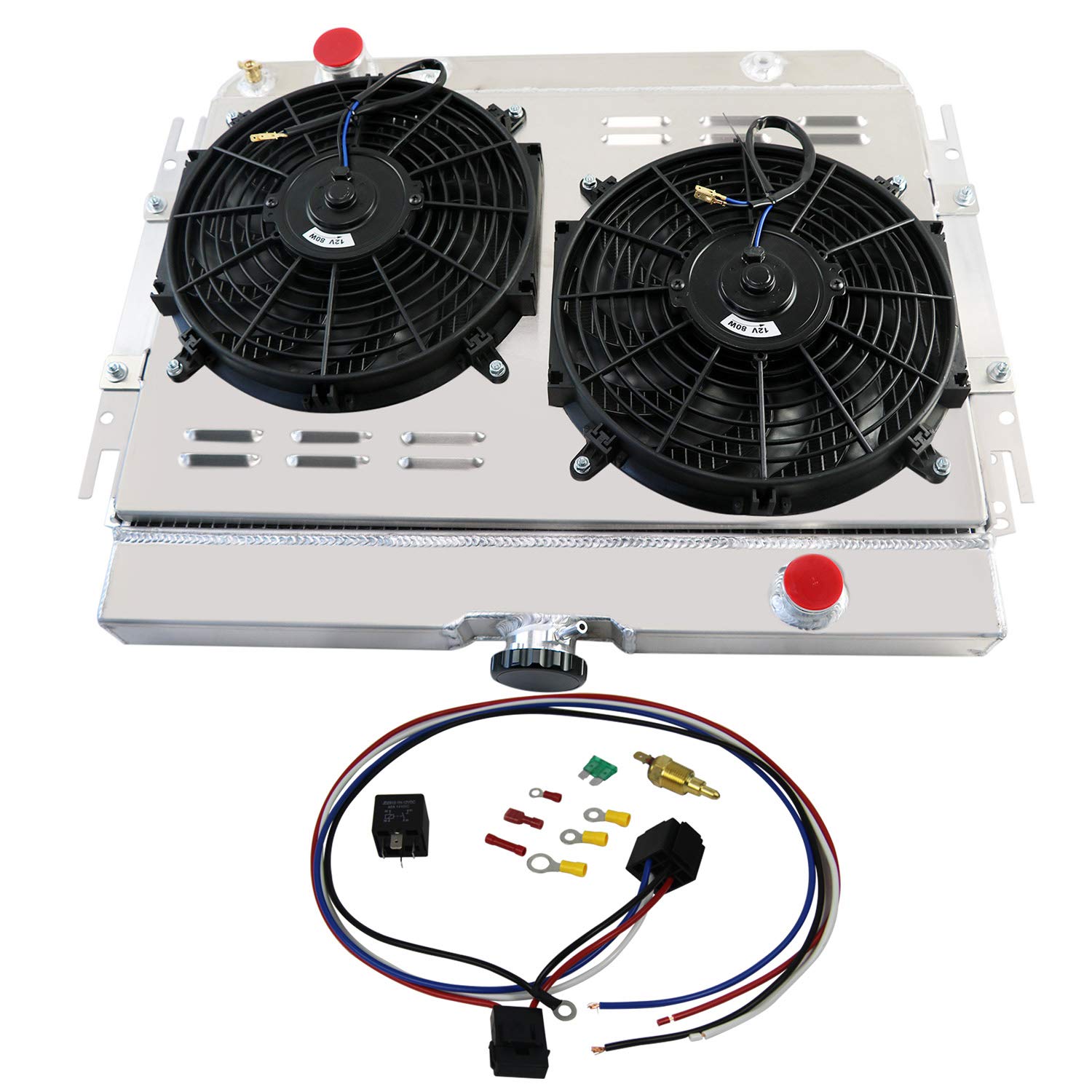

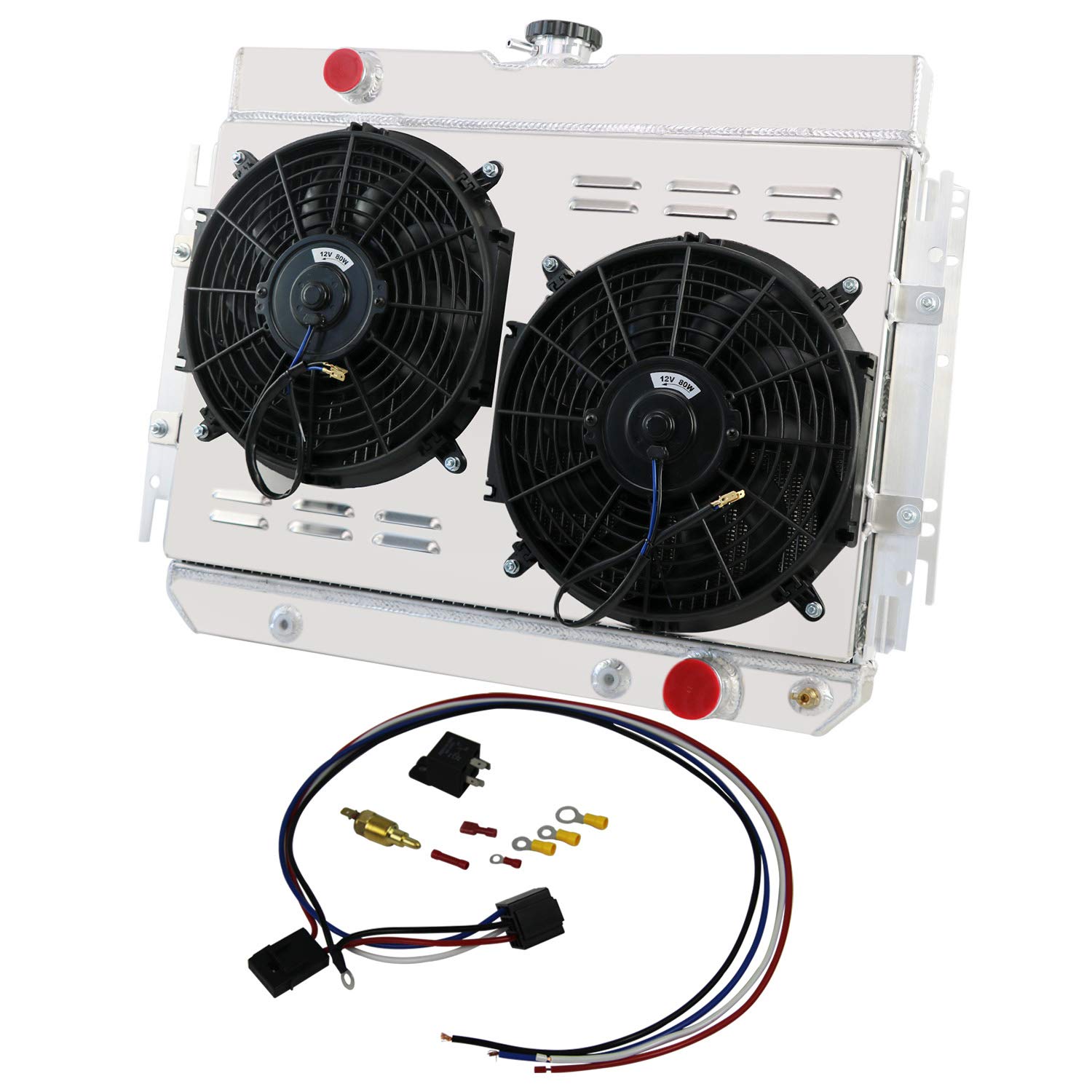

Vehicle Fitment For 1964-1967 Chevy Chevelle/El Camino I6/V8 For 1963-1968 Chevy Impala/Bel Air/Chevelle For 1964-1967 Chevy Chevelle Malibu For 1963-1968 Chevy Biscayne For 1966 1967 Chevy Caprice This Listing Is Including 1 X 4-Row Aluminum Radiator (Includes Radiator Cap) 1 X Aluminum Shroud 2 X 12'' Fan (Includes mounting kits) 1 X Thermostat Relay Kit Radiator Details Core Row: 4 Row Core Material: All Aluminum Tank Material: All Aluminum Radiator Cap: Included Mount Type: Bracket Transmission: Auto and Manual OEM style brass petcock drain CNC machined filler neck and cap Fan Specification Maximum Fan CFM: 2300±200 cfm Fan Diameter (in): 12.050'' Thickness (in): 2.790'' Number of Blades: 10 blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Relay Kit Instructions RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans Why Choose CoolingSnow Radiator? 1. Maximum cooling efficiency 2. High security and performance 3. Excellent aluminum material 4. Stability and durability 5. Drop-in installation 6. High temperature resistance 7. Enhanced protection package Part Number 289 CC289 AE289 EC289 MC289 DPI289 CUC289 040876432895 3002308 3002312 3002313 3005802 30076
Product Features
Core Size 15.99" H x 24.73" W x 2.44" T; Overall Size 22.89" H x 27.95" W " T ; Upper Inlet 1.5" located on the Driver side ; Lower Outlet 1.78" located on the Passenger side ; Trans Cooler￠26×305×G1/4（Z) ; Trans Cooler 1/2" 20 Straight Thread G-1/4 ; Mounting Specs Vert - 10 1/2 / Horizontal - 26 3/4
Features100% Leak Tested, 4 Rows, Downflow Radiator, Durability Tested, No Drilling or Modifications Needed for Installation; Placement on VehicleEngine Compartment, Front ; Mounting StyleScrew-On ; Mounting Type is Bracket

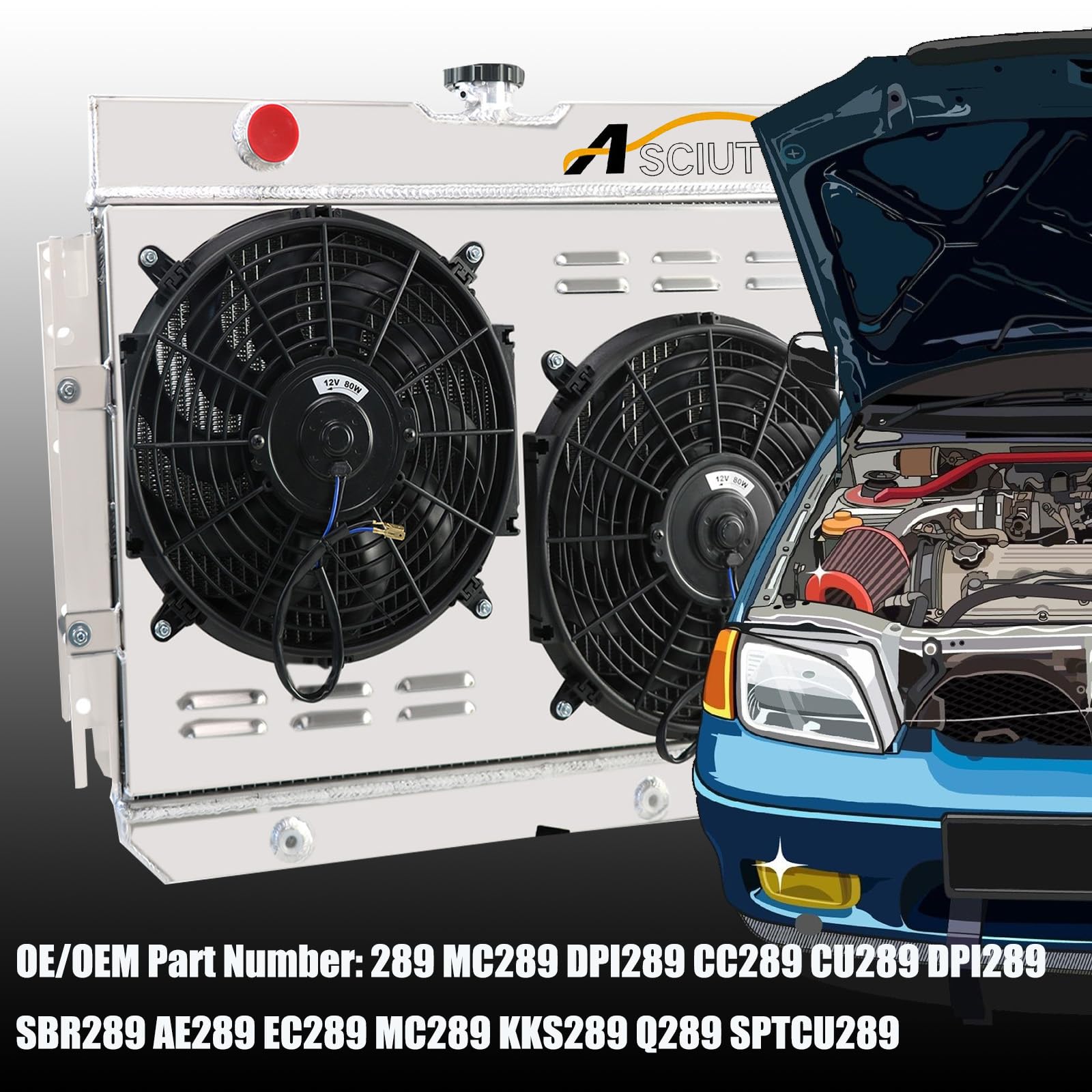

OE/OEM Part Number 289 MC289 DPI289 CC289 CU289 DPI289 SBR289 AE289 EC289 MC289 KKS289 Q289 SPTCU289
Easy To Install Light weight direct bolt-on replacement, stronger & higher capacity for coolant
Warranty 12 months!!! local delivery!!! ; Fitment Type Direct Replacement ; Please feel free to contact us through email if you have any question.
Customer Reviews
Bought the item, went on vacation out of country, scheduled to get it installed when I got back and it’s to tall and I’m out of the time limit to returned even though it wasn’t installed..sucks
